GTP-10 Stainless Steel Tipping Paddle Fot Hides Leather Tannery

GTP-10 Stainless Steel Tipping Paddle Fot Hides Leather Tannery thumbnail-1
GTP-10 Stainless Steel Tipping Paddle Fot Hides Leather Tannery thumbnail-2
GTP-10 Stainless Steel Tipping Paddle Fot Hides Leather Tannery thumbnail-3
GTP-10 Stainless Steel Tipping Paddle Fot Hides Leather Tannery photo-1
GTP-10 Stainless Steel Tipping Paddle Fot Hides Leather Tannery photo-2
GTP-10 Stainless Steel Tipping Paddle Fot Hides Leather Tannery photo-3
US$ 24,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Semi-Automatic
Brand Name:
Brenu
Contact Supplier Request Quote Chat Now
Jiangyin Brenu Industry Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Automatic Grade Semi-Automatic
Brand Name Brenu
Model Number GTP-10
Type Other, Tipping paddle
Voltage 220V/380V
Power(W) 1.5kw
Dimension(L*W*H) 3800*2700*3810mm
Weight 4100kg
Certification ISO9001
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

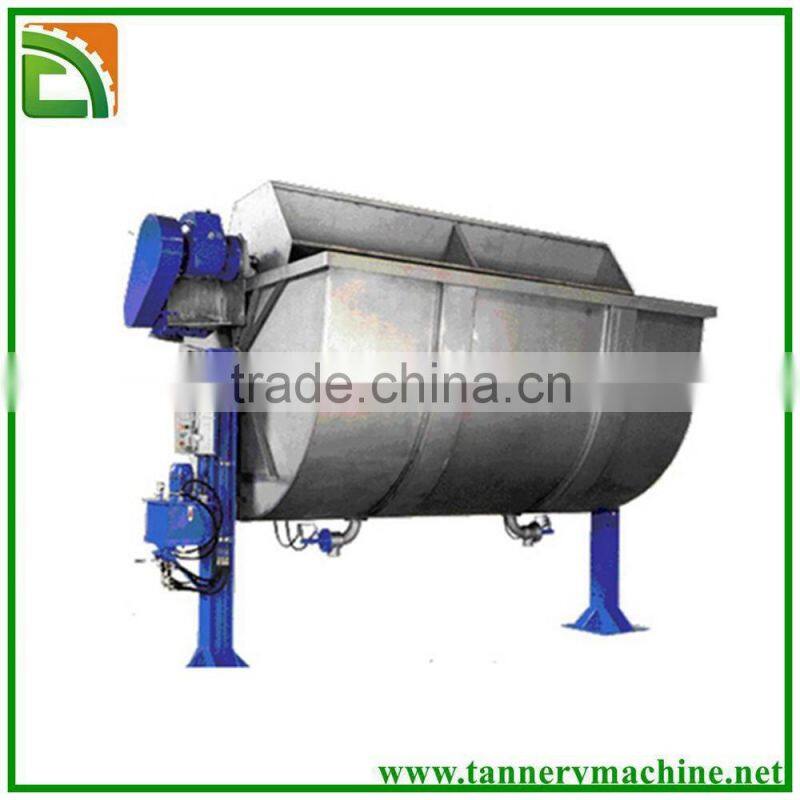

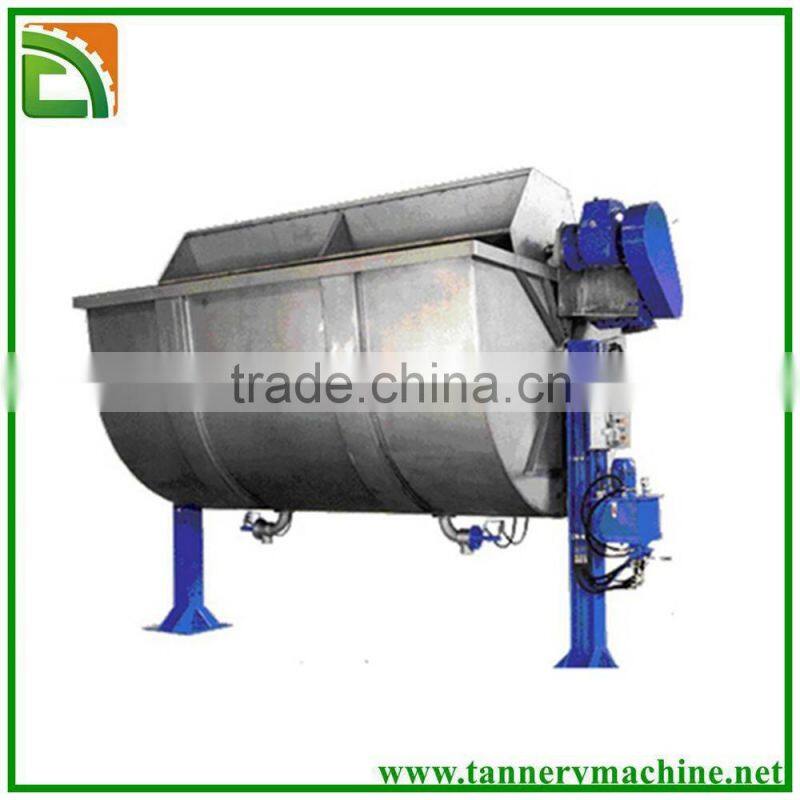

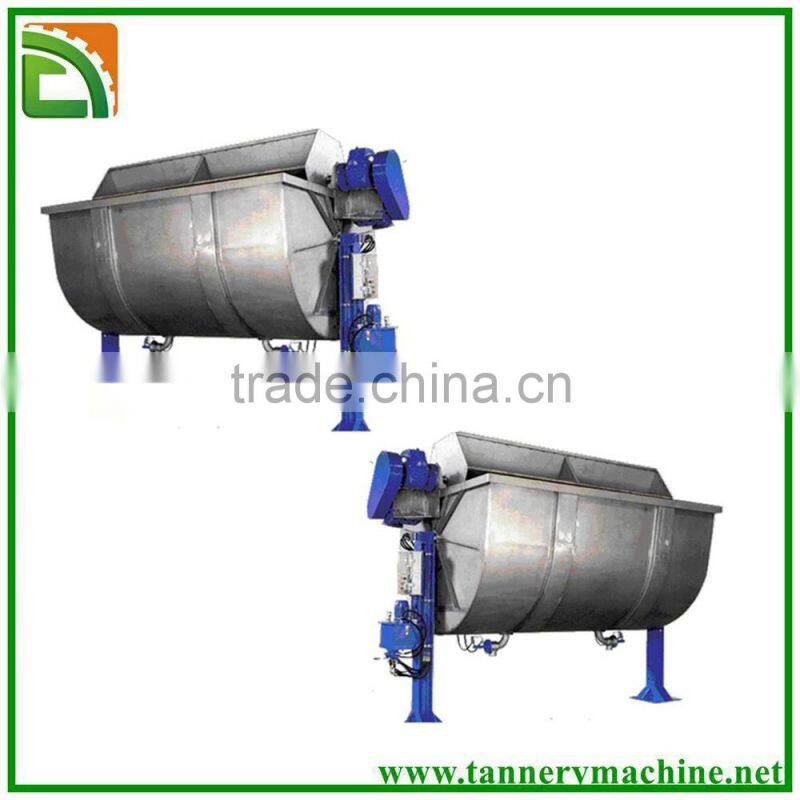

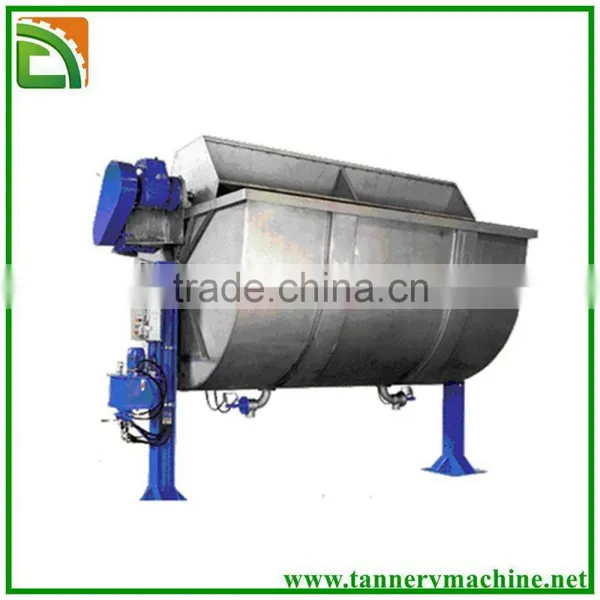

GTP-10 stainless steel tipping paddle for hides leather tannery

The Tipping Paddle GTP-15 is made entirely of stainlesss steel and especially designed to guaratee resistance to the kind of chemical abrasion which can be caused in the tanning processing workshop.

The drive equipment of the rotating paddle consists of an elelctricmotor and heavy-duty gear box. The rotational speed is controlled by the control panel.

The rotating paddle has six blades mounted on the shaft and side plates, all these parts are stainless steel.

The tipping paddle is suspended from two steel columns, at top of which there are supporting shafts. The movement for tipping is carried out by two hydraulic cylinders which are positioned at each side of the tipping paddle and operated by the control panel of the hydraulic unit.

The equipment is fitted with a removable stainless-steel bottom with a completely smooth surface which avoids damaging the skins during the processing. The drainage is done by two remote controlled hydraulic valves.

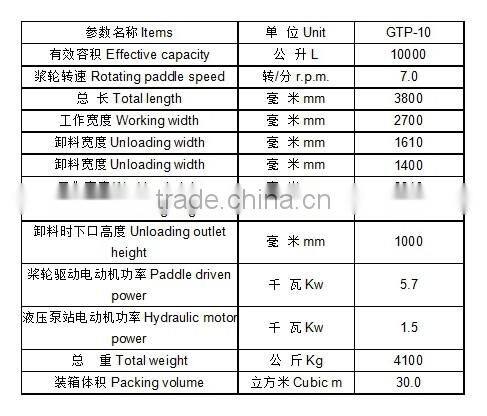

Specification
Detail Images
Packing & Delivery
Packing
wooden case
Delivery time
30 days after 100% payment
Trade Assurance

100% Payment protection


100% Product quality protection


100% On-time shipment protection
