leather vibration staking machine key point
1. Auto lubricating system
2. Auto remove crease unit
3. Auto air dusty collector
4. PLC control all system
leather vibration staking machine Specification
Size and head | Work width | Vibration frequency | Feeding speed | Total power | Working pressure | Machine size | Weight |
1600-4 head | 1600mm | 600t/m | 0-20m/min | 22kw | 3.5-4.5mpa | 2220x2970x1610 | 11000kg |
2400-4 head | 2400mm | 600t/m | 0-20m/min | 29.7kw | 4.5-5.5mpa | 3020x2970x1610 | 15000kg |
3200-4 head | 3200mm | 600t/m | 0-20m/min | 29.7kw | 4.5-5.5mpa | 3820x2970x1610 | 18000kg |
Size and head | Work width | Vibration frequency | Feeding speed | Total power | Working pressure | Machine size | Weight |
1600-3 head | 1600mm | 600t/m | 0-20m/min | 23.4kw | 3.5-4.5mpa | 2220x2970x1610 | 9000kg |
2400-3 head | 2400mm | 600t/m | 0-20m/min | 30.4kw | 4.5-5.5mpa | 3020x2970x1610 | 11000kg |
3200-3 head | 3200mm | 600t/m | 0-20m/min | 38.4kw | 4.5-5.5mpa | 3820x2970x1610 | 14000kg |
Size and head | Work width | Vibration frequency | Feeding speed | Total power | Working pressure | Machine size | Weight |
1600-2 head | 1600mm | 600t/m | 0-20m/min | 9kw | 3.5-4.5mpa | 2220x2970x1610 | 6500kg |
2400-2 head | 2400mm | 600t/m | 0-20m/min | 12.5kw | 4.5-5.5mpa | 3020x2970x1610 | 7500kg |
3200-2 head | 3200mm | 600t/m | 0-20m/min | 17.2kw | 4.5-5.5mpa | 3820x2970x1610 | 9000kg |

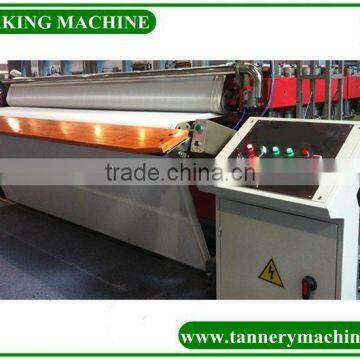

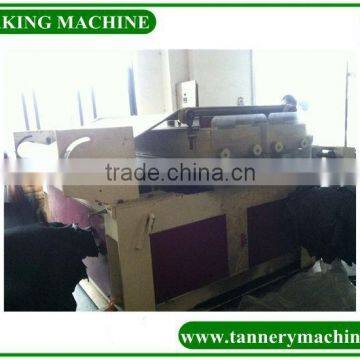

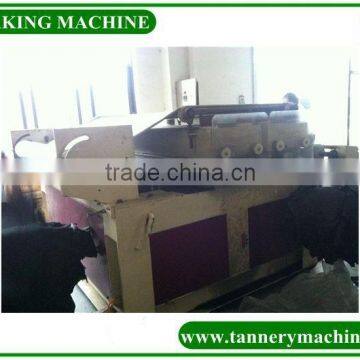

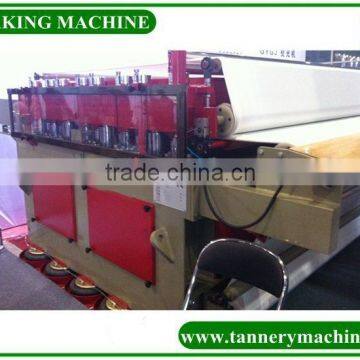

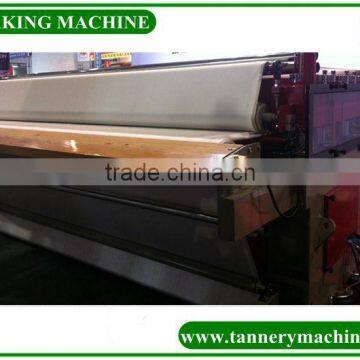

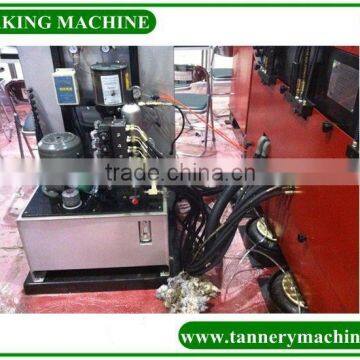

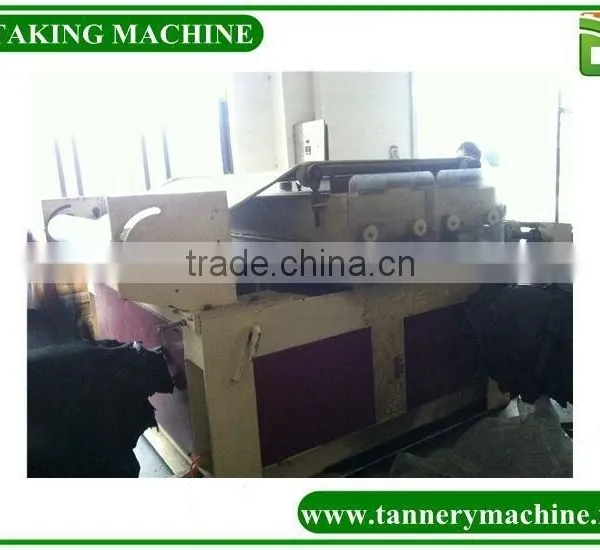

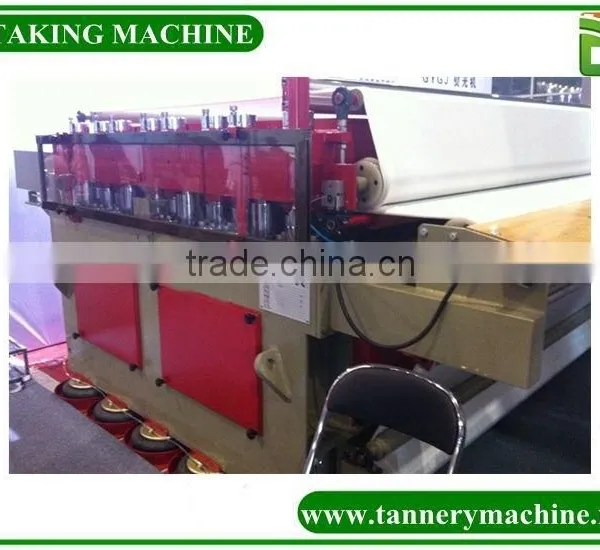

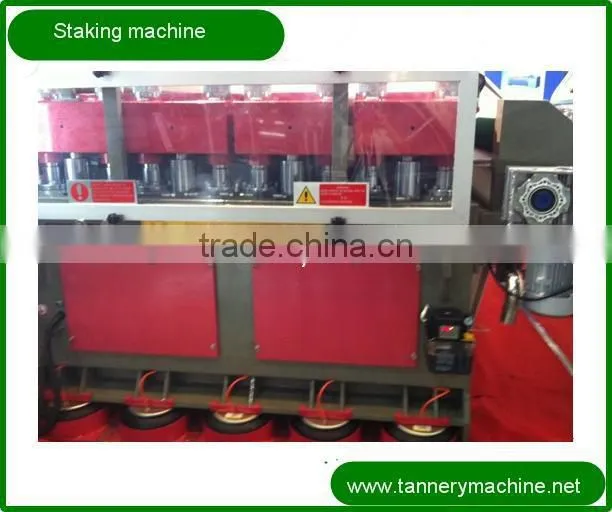

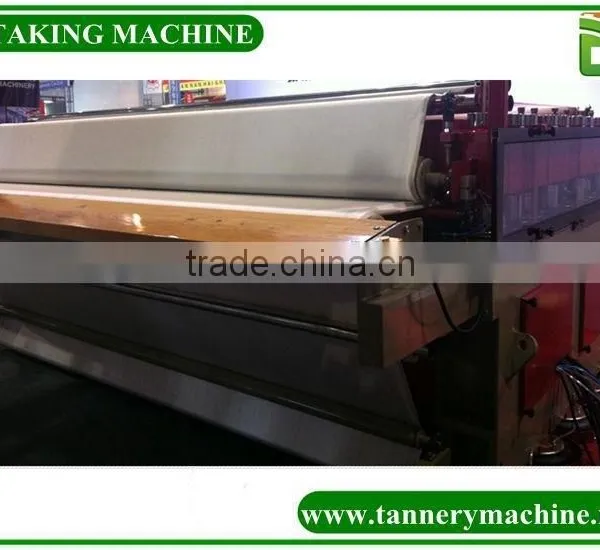

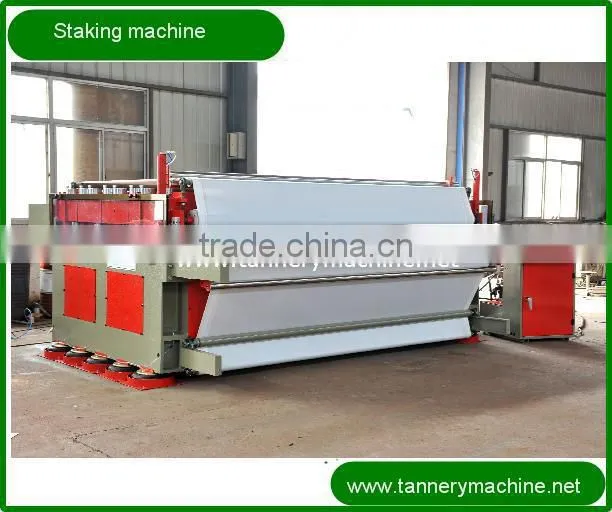

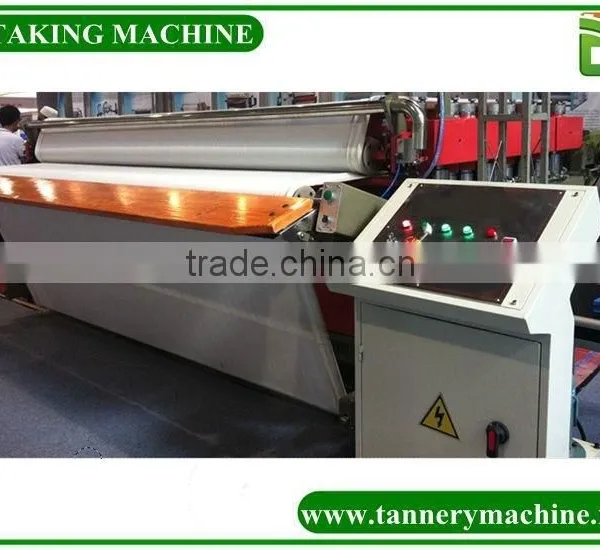

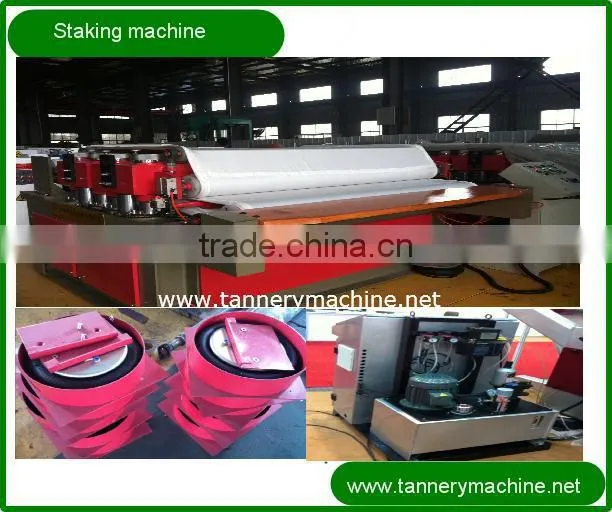

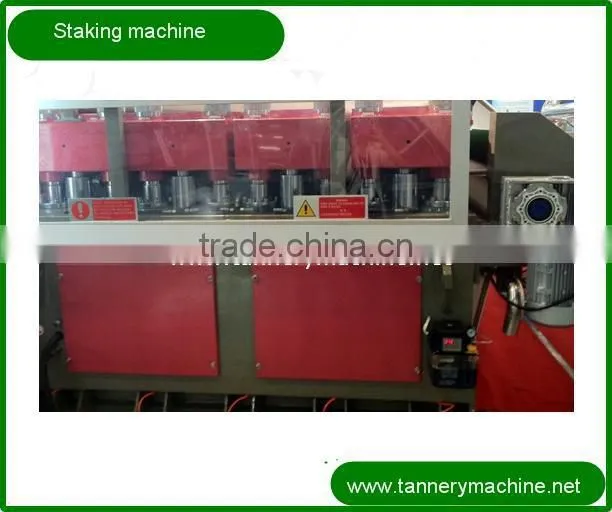

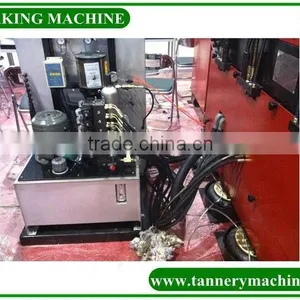

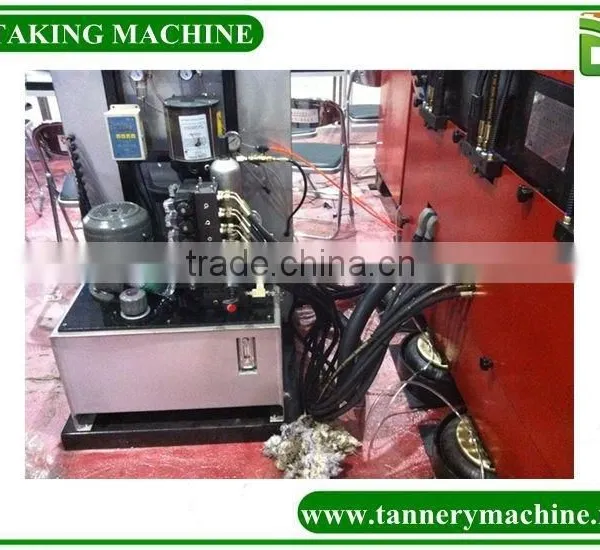

leather vibration staking machine key parts picture
leather vibration staking machine part brand
No | Part | Brand list |
1 | BEARING | JAPAN |
2 | Hydraulic pump | JAPAN |
3 | Breaker | JAPAN OR FRANCE |
4 | Contactors | JAPAN OR FRANCE |
thermal relay | JAPAN OR FRANCE | |
air base | GERMANY | |
cloth | ITALY | |
valve | JAPAN |
leather vibration staking machine Certificate
1:Where is your factory located?
Answer: we are in Nantong city, China, near from ShangHai;
2:Why you have two company names?
Answer: HAIAN WEIGUO MACHINERY is manufacturing factory name for home market trading, JIANGYIN DUNCHENG IMPORT AND EXPORT is sales department mainly for export trading.
3: Why say you can serve the whole line tannery machines?
Answer: we have more than 10 cooperate company and take over of every kind of tannery machine, from wetblue lines to finishing machines;
4:Do you have after sale service?
Answer: We send engineers to go to customers’ factory to do installation by free, we have 30 years experienced engineer team in tannery line.;
5: What’s your payment terms?
Answer: Usually three types: by 30% T/T deposit, 70% T/T paid off before delivery; by 30%T/T deposit, 70%L/C; or by 100% L/C.
6: How can you control the quality?
Answer: Besides the sign technical contact, before delivery or extra money paid off, we go to the manufacturing factory checking every main electric parts and take pictures send to customers by e-mail for checking.
