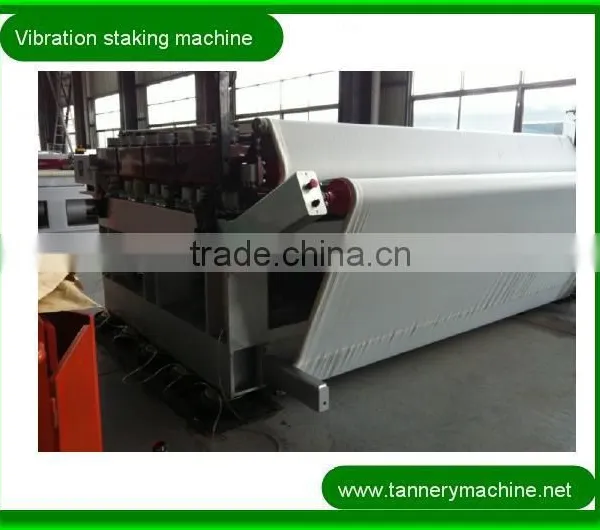

China cheaper 1600 to 3200mm sheep leather vibration staking machine

FOB Price

USD $1,000 - $6,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Get lowest price Inquiry Basket

You May Like

Product Details

Condition:	New	Automatic Grade:	Automatic	Place of Origin:	Jiangsu, China
Brand Name:	DCH	Model Number:	DCHZL	Type:	Other, leather vibration staking machine
Voltage:	380v/3phase	Power(W):	by the size	Dimension(LWH):	by the size
Weight:	by the size	Certification:	ce	Warranty:	one year
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Specifications

leather vibration staking machine
1.auto remove crease
2.auto air dusty collect
3.auto lubration system
4.semi or automaticl

Product Description

leather vibration staking machine key point

1.Auto lubricating system

2. Auto remove crease unit

3. Auto air dusty collector

4. PLC control all system

leather vibration staking machine Specification

Size and head	Work width	Vibration frequency	Feeding speed	Total power	Working pressure	Machine size	Weight
1600-4 head	1600mm	600t/m	0-20m/min	22kw	3.5-4.5mpa	2220x2970x1610	11000kg
2400-4 head	2400mm	600t/m	0-20m/min	29.7kw	4.5-5.5mpa	3020x2970x1610	15000kg
3200-4 head	3200mm	600t/m	0-20m/min	29.7kw	4.5-5.5mpa	3820x2970x1610	18000kg

Size and head	Work width	Vibration frequency	Feeding speed	Total power	Working pressure	Machine size	Weight
1600-3 head	1600mm	600t/m	0-20m/min	23.4kw	3.5-4.5mpa	2220x2970x1610	9000kg
2400-3 head	2400mm	600t/m	0-20m/min	30.4kw	4.5-5.5mpa	3020x2970x1610	11000kg
3200-3 head	3200mm	600t/m	0-20m/min	38.4kw	4.5-5.5mpa	3820x2970x1610	14000kg

Size and head	Work width	Vibration frequency	Feeding speed	Total power	Working pressure	Machine size	Weight
1600-2 head	1600mm	600t/m	0-20m/min	9kw	3.5-4.5mpa	2220x2970x1610	6500kg
2400-2 head	2400mm	600t/m	0-20m/min	12.5kw	4.5-5.5mpa	3020x2970x1610	7500kg
3200-2 head	3200mm	600t/m	0-20m/min	17.2kw	4.5-5.5mpa	3820x2970x1610	9000kg

leather vibration staking machine part brand

No	Part	Brand list
1	BEARING	JAPAN
2	Hydraulic pump	JAPAN
3	Breaker	JAPAN OR FRANCE
4	Contactors	JAPAN OR FRANCE
	thermal relay	JAPAN OR FRANCE
	air base	GERMANY
	cloth	ITALY
	valve	JAPAN
