Specifications
leather Vibration staking machine1.auto remove rease
2.auto air dusty collect
3.auto oil lubration system
leather vibration staking machine key point
1. Auto lubricating system
2. Auto remove crease unit
3. Auto air dusty collector
4. PLC control all system
leather vibration staking machine Specification
Size and head | Work width | Vibration frequency | Feeding speed | Total power | Working pressure | Machine size | Weight |
1600-4 head | 1600mm | 600t/m | 0-20m/min | 22kw | 3.5-4.5mpa | 2220x2970x1610 | 11000kg |
2400-4 head | 2400mm | 600t/m | 0-20m/min | 29.7kw | 4.5-5.5mpa | 3020x2970x1610 | 15000kg |
3200-4 head | 3200mm | 600t/m | 0-20m/min | 29.7kw | 4.5-5.5mpa | 3820x2970x1610 | 18000kg |
Size and head | Work width | Vibration frequency | Feeding speed | Total power | Working pressure | Machine size | Weight |
1600-3 head | 1600mm | 600t/m | 0-20m/min | 23.4kw | 3.5-4.5mpa | 2220x2970x1610 | 9000kg |
2400-3 head | 2400mm | 600t/m | 0-20m/min | 30.4kw | 4.5-5.5mpa | 3020x2970x1610 | 11000kg |
3200-3 head | 3200mm | 600t/m | 0-20m/min | 38.4kw | 4.5-5.5mpa | 3820x2970x1610 | 14000kg |
Size and head | Work width | Vibration frequency | Feeding speed | Total power | Working pressure | Machine size | Weight |
1600-2 head | 1600mm | 600t/m | 0-20m/min | 9kw | 3.5-4.5mpa | 2220x2970x1610 | 6500kg |
2400-2 head | 2400mm | 600t/m | 0-20m/min | 12.5kw | 4.5-5.5mpa | 3020x2970x1610 | 7500kg |
3200-2 head | 3200mm | 600t/m | 0-20m/min | 17.2kw | 4.5-5.5mpa | 3820x2970x1610 | 9000kg |

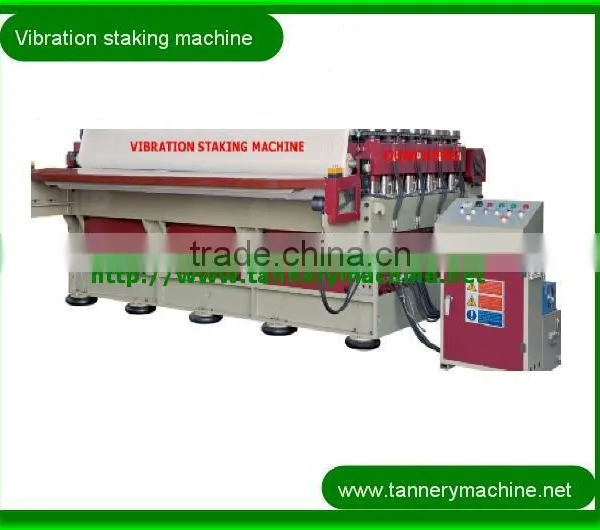

leather vibration staking machine key parts picture
leather vibration staking machine part brand
No | Part | Brand list |
1 | BEARING | JAPAN |
2 | Hydraulic pump | JAPAN |
3 | Breaker | JAPAN OR FRANCE |
4 | Contactors | JAPAN OR FRANCE |
| 5 | thermal relay | JAPAN OR FRANCE |
| 6 | air base | GERMANY |
| 7 | cloth | ITALY |
| 8 | valve | JAPAN |
leather vibration staking machine Certificate
