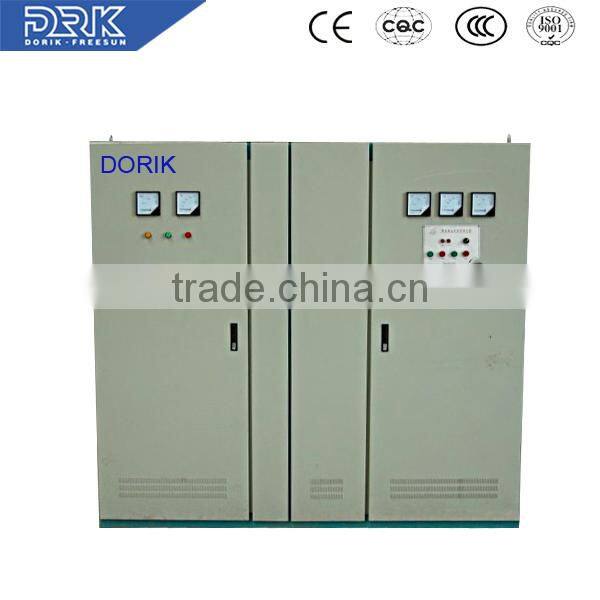

cathode power supply
We are professional and creative manufacturer. Our reliable quality of rectifiers will definitely satisfy your requirements.
| Application characteristics | ||
| 1,Full digital control | ||
| 2,High reliability | ||
| 3,The parallel technology of inverse multiplex and in-phase | ||
| 4,output voltage polarity and current direction is controllable | ||
| 5,Bidirectional energy transmission | ||
| 6,multiple communication interface, easy to network | ||
1.Product Parameters
| ITEMS | Technical parameters |
| AC input voltage | 3 phase 220V, 380V, 415V, 480V±10%, 50/60Hz |
| Output voltage | DC 0-12/24/36V adjustable |
| Output current | DC 0-5000/6000/8000/10000A adjustable |
| Regulation range | 0-100% |
| Power factor | ≥0.9(full load) |
| Accuracy of output current, voltage | ≤0.1% |
| Efficiency | ≥90%(full load) |
| Protection grade | IP54 for water cooling, IP30 for forced air cooling |
| Cooling method | Water cooling or forced air cooling |
| Control mode | CC,CV,PWM Pulse control |
| Operation mode | Local touch screen, front pannel, remote control box or communication |
| Communication protocol | RS485, Profibus DP, MODBUS |
| Working method | Long time full load continuous operation |
| Protections | Overheat, input over/under voltage, output overvoltage, output overcurrent, over water temperature, under water pressure. |
Shape dimension
| Specification | Size(mm) Outline | ||||
| L | W | H | N.W | G.W | |
| DR-1000A-12V | 700 | 540 | 280 | 55 | 58 |
| DR-1500A-12V | 680 | 530 | 650 | 72 | 76 |
| DR-3000A-12V | 570 | 530 | 860 | 130 | |
| DR-6000A-12V | 700 | 580 | 1360 | 280 | |
| DR-10000A-12V | 800 | 800 | 1550 | 650 | |
2. Working principle & products details
Principle block diagram:
PRODUCTS DETAILS:
3.Quality assurance &Controling
3.1 All units guaranteed 24 months from supply against failure, bad workmanship and material defects excluding misuse of operational conditions;
3.2 Strong technical ability ensures reasonable, professional and safe design;
3.3 Good quality components are used;
3.4 Full load testing before shipment;
3.5 Complete protections;
3.6 Meet CE requirement;
4.Packing & Shipment

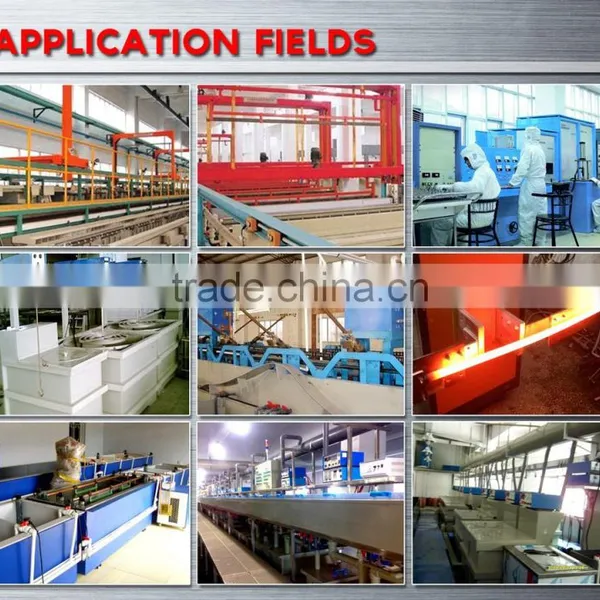

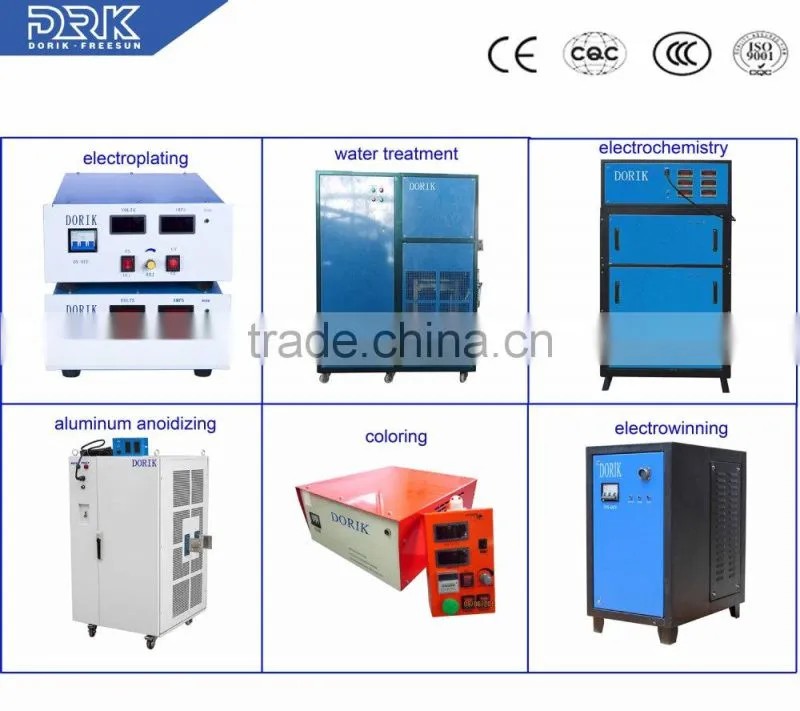

5. Application Fields
| Electroplating: | Electro galvanized, chrome, nickel, tin, etc. | |||
| Metal surface treatment | Electrowinning of rare earth, ion-exchange membrane caustic soda, potash, electrolytic manganese, electrolytic manganese dioxide, electrolytic lead, electrolytic copper, electrolytic copper foil, electrolytic processing power, polarization, corrosion protection, electrophoresis power supply | |||
| Crystal Growth | growth of Monocrystalline silicon, polycrystalline silicon, sapphire crystal | |||
| Environmental proection | Electrolysis of sewage,sludge and sea water | |||
| Heating | Electric Arc furnace,Resistance heating furnace,heating pipe | |||
| Other application fields | Communication power supply, battery charging and discharging device, super capacitor charging and discharging device, the DC operation power supply, power supply, high current test of superconducting magnetic energy storage, aircraft engine starting power supply | |||
6.After Service
1. If components are broken within guarantee period due to power supply design or component bad quality, supply replacement free.
2. For overseas customers, in case of problems with power supply, respond within 24 hours from receiving customer's written inform.
3. Supply detailed operation manual and troubleshooting table .
4. Supply technical support to find out problem reason and guidance of troubleshooting.
