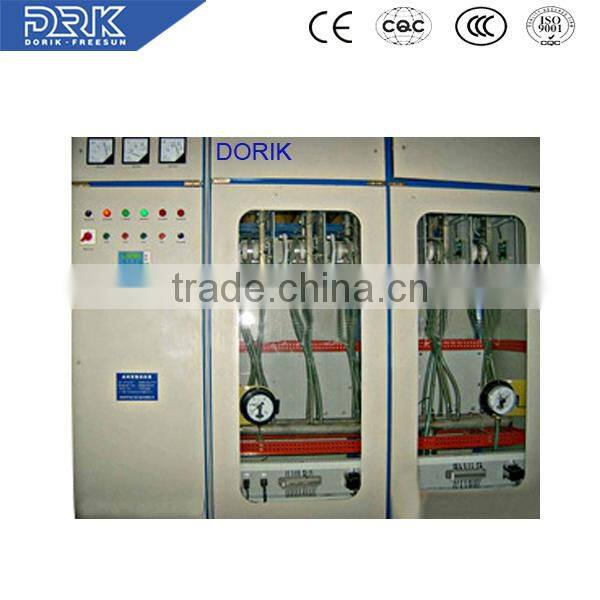

6000A silicon controlled rectifier silicon high power supply
Advantages:
1) Full digital control
2) High reliability
3) The parallel technology of inverse multiplex and in-phase
4) Output voltage polarity and current direction is controllable
5) Bidirectional energy transmission
6) Multiple communication interface, easy to network
Application Scope:
| Electroplating: | Electro galvanized, chrome, nickel, tin, etc. | |||
| Metal surface treatment | Electrowinning of rare earth, ion-exchange membrane caustic soda, potash, electrolytic manganese, electrolytic manganese dioxide, electrolytic lead, electrolytic copper, electrolytic copper foil, electrolytic processing power, polarization, corrosion protection, electrophoresis power supply | |||
| Crystal Growth | growth of Monocrystalline silicon, polycrystalline silicon, sapphire crystal | |||
| Environmental proection | Electrolysis of sewage,sludge and sea water | |||
| Heating | Electric Arc furnace,Resistance heating furnace,heating pipe | |||
| Other application fields | Communication power supply, battery charging and discharging device, super capacitor charging and discharging device, the DC operation power supply, power supply, high current test of superconducting magnetic energy storage, aircraft engine starting power supply | |||
1.Product Parameters
| ITEMS | Technical parameters |
| AC input voltage | 3 phase 220V, 380V, 415V, 480V±10%, 50/60Hz |
| Output voltage | DC 0-12V/24V/36V/Rated adjustable |
| Output current | DC 0-5000A/8000A/10000A/20000A/Rated adjustable |
| Regulation range | 0-100% |
| Power factor | ≥0.9(full load) |
| Accuracy of output current, voltage | ≤0.1% |
| Efficiency | ≥90%(full load) |
| Protection grade | IP54 for water cooling, IP30 for forced air cooling |
| Cooling method | Water cooling or forced air cooling |
| Control mode | CC,CV,PWM Pulse control |
| Operation mode | Local touch screen, front pannel, remote control box or communication |
| Communication protocol | RS485, Profibus DP, MODBUS |
| Working method | Long time full load continuous operation |
| Protections | Overheat, input over/under voltage, output overvoltage, output overcurrent, over water temperature, under water pressure. |
Shape dimension
| Specification | Size(mm) Outline | ||||
| L | W | H | N.W | G.W | |
| DR-500A-24V | 660 | 400 | 570 | 50 | |
| DR-1000A-24V | 660 | 400 | 570 | 60 | |
| DR-1500A-24V | 770 | 400 | 710 | 75 | |
| DR-3000A-24V | 800 | 690 | 1430 | 220 | |
2. Working principle & products details
Principle block diagram:
PRODUCTS DETAILS:
3.Quality assurance &Controling
3.1 All units guaranteed 24 months from supply against failure, bad workmanship and material defects excluding misuse of operational conditions ;
3.2Strong technical ability ensures reasonable, professional and safe design;
3.3 Good quality components are used .
3.4 Full load testing before shipment ;
3.5 Complete protections
3.6 Meet CE requirement .
4.Packing &Shipment
5. Application Fields
1) Surface treatment : Electroplating . Electrolytic metal treatment. metal finishing. base metals, Non metals and Plastics. Barrel plating, rack plating, continuous plating, hard Aluminum anodizing, decorative anodizing.
2) Electrolysis. All major applications. Metal electrowinning, electrorefining, sodium hydroxide electrolysis, salt electrolysis, sodium chloride electrolysis, chlor alkali electrolysis, water electrolysis.
3) Cathodic protection Water Purification ,water electrocoagulation and Inductive heating .
6.After Service.
1. 2 YEARS WARRANTY
If components are broken within guarantee period due to power supply design or component bad quality, supply replacement free.
2. For overseas customers, in case of problems with power supply, respond within 24 hours from receiving customer's written inform.
3. Supply detailed operation manual and troubleshooting table .
4. Supply technical support to find out problem reason and guidance of troubleshooting.
7. Contact Way .
Company Name: Ningbo Dorik Co., Ltd. .
Tel: 0086-574-89075894-819(Linda)
Skype: decenly2
Website: http://www.dorik.en.china.cn
All emails will be replied within 24 hours. Please leave a message in the Trade Manager. Thank you for ordering and hope you enjoy your purchase here. You comments are always welcomed and very important in our long-term business corporation.
