Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > NMR Special Power Supply

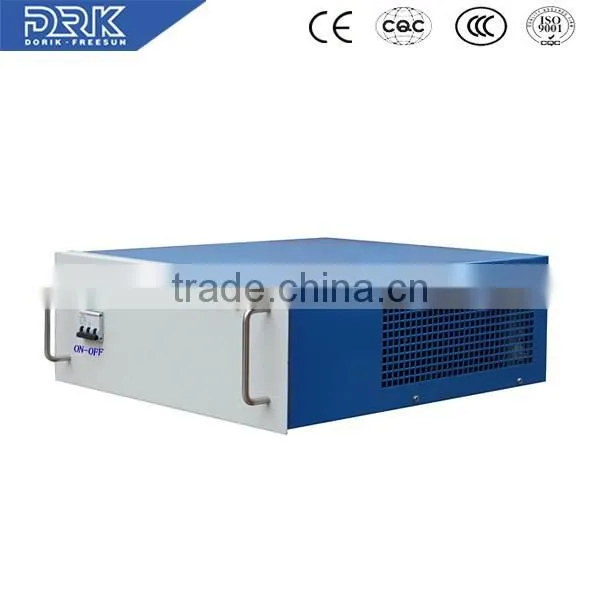

NMR Special Power Supply

Name: NMR Special Power Supply
Brand: Dorik
SKU: 140913644
Availability: InStock

Ningbo DORIK Import & Export Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Dorik

Output Power:

Other, >500W

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

any china port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Dorik

Output Power Other, >500W

Output Type Triple

Input Voltage 380V

Output Frequency 20KHZ

NMR special power supply

We are professional and creative manufacturer. Our reliable quality of rectifiers will definitely satisfy your requirements.

Advantages:

1) Small size, light weight and high efficiency.

2) High frequency pulse current output ,which can effectively improve the deposition rate of the coating.

3) Flexible use, simple operation.

4) Complete protection function.

5) Extensible function : the rectifier can be set according to demands of customers' specifications of products.

1.Product Parameters

ITEMS	Technical parameters
AC input voltage	3 phase 220V, 380V, 415V, 480V±10%, 50/60Hz
Output voltage	DC 0-12/24/36V adjustable
Output current	DC 0-100/200/300/400/500A adjustable
Regulation range	0-100%
Power factor	≥0.9(full load)
Accuracy of output current, voltage	≤0.1%
Efficiency	≥90%(full load)
Protection grade	IP54 for water cooling, IP30 for forced air cooling
Cooling method	Water cooling or forced air cooling
Control mode	CC,CV,PWM Pulse control
Operation mode	Local touch screen, front pannel, remote control box or communication
Communication protocol	RS485, Profibus DP, MODBUS
Working method	Long time full load continuous operation
Protections	Overheat, input over/under voltage, output overvoltage, output overcurrent, over water temperature, under water pressure.

Shape dimension

Specification	Size(mm) Outline
	L	W	H	N.W	G.W
DR-100A-12V	450	430	150	19	22
DR-200A-12V	560	460	180	22	25
DR-300A-12V	700	465	240	36	39
DR-500A-12V	700	465	240	48	52

2. Working principle & products details

Principle block diagram:

PRODUCTS DETAILS:

3.Quality assurance &Controling

3.1 All units guaranteed 24 months from supply against failure, bad workmanship and material defects excluding misuse of operational conditions;

3.2 Strong technical ability ensures reasonable, professional and safe design;

3.3 Good quality components are used;

3.4 Full load testing before shipment;

3.5 Complete protections;

3.6 Meet CE requirement;

4.Packing & Shipment

5. Application Fields

1) Surface treatment : electroplating . Electrolytic metal treatment. metal finishing. base metals, none metals and Plastics. Barrel plating, rack plating, continuous plating, hard Aluminum anodizing, decorative anodizing.

2) Electrolysis. All major applications. Metal electrowinning, electrorefining, sodium hydroxide electrolysis, salt electrolysis, sodium chloride electrolysis, chlor alkali electrolysis, water electrolysis.

3) Cathodic protection Water Purification ,water electrocoagulation and Inductive heating .

6.After Service

1. If components are broken within guarantee period due to power supply design or component bad quality, supply replacement free.

2. For overseas customers, in case of problems with power supply, respond within 24 hours from receiving customer's written inform.

3. Supply detailed operation manual and troubleshooting table .

4. Supply technical support to find out problem reason and guidance of troubleshooting.
