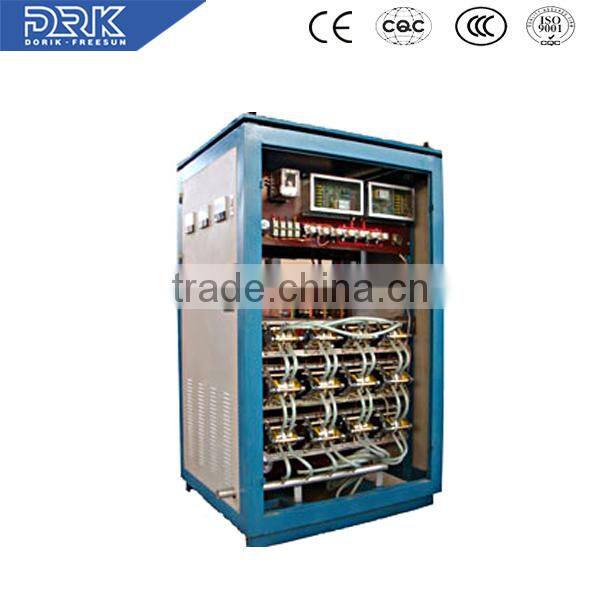

3 phase 500A 30V DC thyristor rectifier for electrochlorination
We are professional and creative manufacturer. Our reliable quality of
rectifiers will definitely satisfy your requirements.
Advantages:
1) High stability
2) Fast response and high precision control, output control the whole accuracy
can reach 89%
3) Commutation control ,according to the request of the manual reversing
or automatic reversing
function, may realize the automatic commutation cycle
4) Complete protection functions.
5) ApplicationScope:Suitable for electrolytic polishing, electrolytic sewage,
metallurgical industry, electrolytic nickel, aluminum, copper, electrolytic
chemical industry etc
1.Product Parameters
| ITEMS | Technical parameters |
| AC input voltage | 3 phase 220V, 380V, 415V, 480V±10%, 50/60Hz |
| Output voltage | DC 0-Rated adjustable |
| Output current | DC 0-Rated adjustable |
| Regulation range | 0-100% |
| Power factor | ≥0.9(full load) |
| Accuracy of output current, voltage | ≤0.1% |
| Efficiency | ≥90%(full load) |
| Protection grade | IP54 for water cooling, IP30 for forced air cooling |
| Cooling method | Water cooling or forced air cooling |
| Control mode | CC,CV,PWM Pulse control |
| Operation mode | Local touch screen, front pannel, remote control box or communication |
| Communication protocol | RS485, Profibus DP, MODBUS |
| Working method | Long time full load continuous operation |
| Protections | Overheat, input over/under voltage, output overvoltage, output overcurrent, over water temperature, under water pressure. |
Shape dimension
| Specification | Size(mm) Outline | ||||
| L | W | H | N.W | G.W | |
| DR-1000A-12V | 700 | 540 | 280 | 55 | 58 |
| DR-1500A-12V | 680 | 530 | 650 | 72 | 76 |
| DR-3000A-12V | 570 | 530 | 860 | 125 | 130 |
| DR-6000A-12V | 700 | 580 | 1360 | 250 | 280 |
| DR-10000A-12V | 800 | 800 | 1550 | 650 | 705 |
2. Working principle & products details
Principle block diagram:

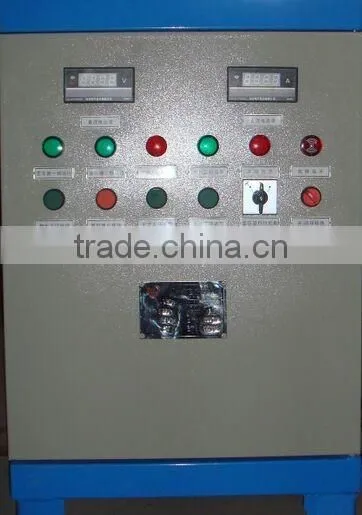

PRODUCTS DETAILS:
3.Quality assurance &Controling
3.1 All units guaranteed 24 months from supply against failure, bad workmanship
and material defects excluding misuse of operational conditions ;
3.2Strong technical ability ensures reasonable, professional and safe design;
3.3 Good quality components are used .
3.4 Full load testing before shipment ;
3.5 Complete protections
3.6 Meet CE requirement .
4.Packing &Shipment
5. Application Fields
1) Surface treatment : Electroplating . Electrolytic metal treatment. metal finishing.
base metals, Non metals and Plastics. Barrel plating, rack plating, continuous
plating, hard Aluminum anodizing, decorative anodizing.
2) Electrolysis. All major applications. Metal electrowinning, electrorefining, sodium
hydroxide electrolysis, salt electrolysis, sodium chloride electrolysis, chlor alkali
electrolysis, water electrolysis.
3) Cathodic protection Water Purification ,water electrocoagulation and Inductive
heating .
6.After Service.
1. If components are broken within guarantee period due to power supply
design or component bad quality, supply replacement free.
2. For overseas customers, in case of problems with power supply, respond
within 24 hours from receiving customer's written inform.
3. Supply detailed operation manual and troubleshooting table .
4. Supply technical support to find out problem reason and guidance of
troubleshooting.
