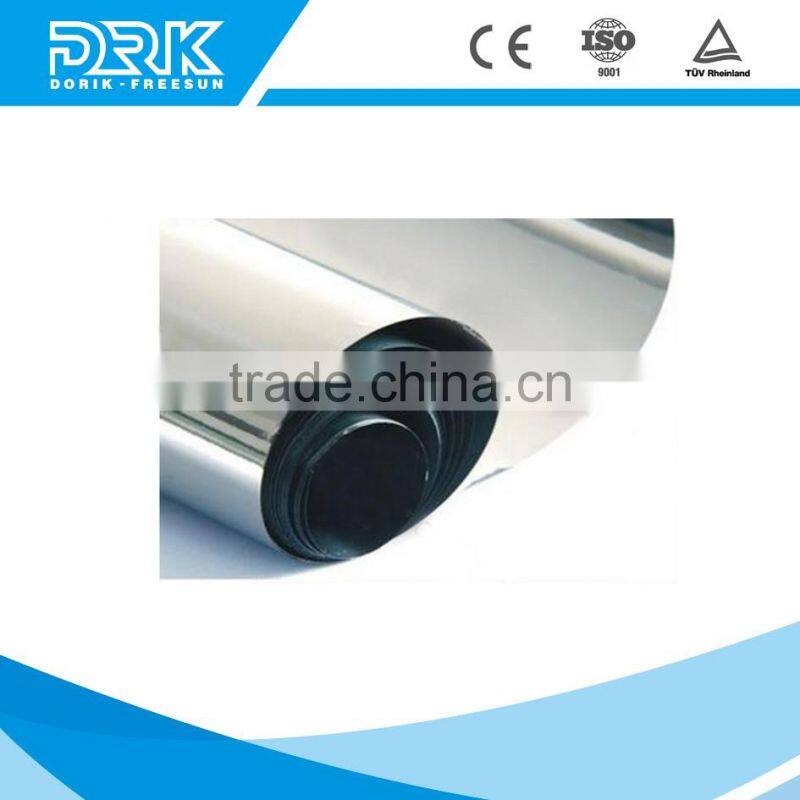

Copper Nickel Foil
Copper-Nickel Foil is one kind of copper alloy that has high resistivity. It has very low temperature coefficient of resistivity (about 0.48μΩ·m) andmedium resistivity. That makes it can work very well in a wide temperature range. It has good machining and welding performance when used in AC circuits as precision resistors, sliding resistors and resistance strain gauges etc. It can also be made into thermocouples and its compensation wire materials.
Content:
Alloy No. | Ni | Mn | Cu | Fe | Si | C | P | S |
B5 | 4.4~5.0 | --- | Rem | 0.2 | --- | 0.03 | 0.01 | 0.01 |
BFe10-1-1 | 9.0~11 | 0.5~1.0 | Rem | 1.0~1.5 | 0.15 | 0.05 | 0.006 | 0.01 |
BFe30-1-1 | 29~32 | 0.5~1.2 | Rem | 0.5~1.0 | 0.15 | 0.05 | 0.006 | 0.01 |
BMn40-1.5 | 39~41 | 1~2 | Rem | 0.5 | 0.03~0.05 | 0.01 | 0.002 | 0.002 |
Performance:
Density:8.9 g/cm3;
Melting Point:1200—1260°C;
Annealing Temperature : 800--820°C;
Operating Temperature Limits: 350°C;
Resistivity :0.48μΩ·m2;
Temperature Coefficient: 0.000016.
Specification:
Type: Coils , Sheets
Thickness : 0.006~0.1mm
Width : 1.0-625mm
Tolerance of thickness:≤±0.003mm
Tolerance of Width :≤0.1mm
