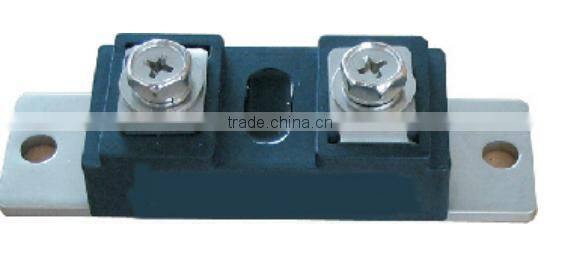

MBRP400100 Ultra -Fast Soft Recovery Diode Module

MBRP400100 Ultra -Fast Soft Recovery Diode Module

We are professional and creative manufacturer. Our reliable quality of Diode Module will definitely satisfy your requirements.

Description:

Ultra FRD module devices are optimized to reduce losses and EMI/RFI in high frequency power conditioning Electrical systems.

These diode modules are ideally suited for power converters, Motors drives and other applications where switching losses are significant portion of the total losses.

Features

1) Repetitive Reverse Voltage RRM : =V100V

2) Low Forward Voltage Drop : F(Vtyp.) = 0.4V

3) Average Forward Current   : IF(AV.) = 400A  @ Tc= 100℃

4) Ultra-Fast Reverse Recovery Time rr( : tytp.) = 80ns

5) Extensive Characterization of Recovery Parameters

6) Reduced EMI and RFI

7) Non Isolation Type Package

Application Fields

•  Motor Drives
• Free wheel use
• High Power Converters
• Welders
• Various Switching and Telecommunication Power Supply

Technology data

 Thermal Characteristics

Electrical Characteristics @T=25℃ (unless otherwise specified)

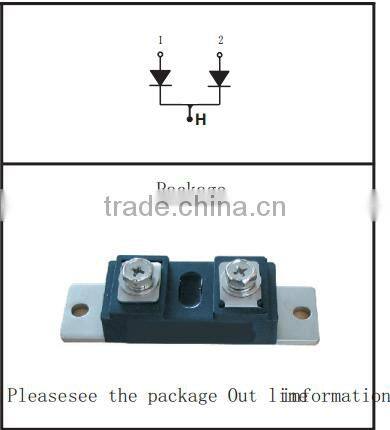

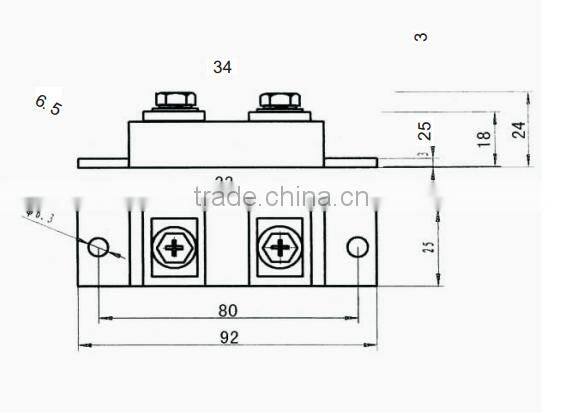

Package outline (Dimensions in mm)

Quality assurance &Controling

 3.1 All units guaranteed 24 months from supply against failure, bad workmanship and material defects excluding misuse of  operational conditions;

 3.2 Strong technical ability ensures reasonable, professional and safe design;

 3.3 Good quality components are used;

 3.4 Full load testing before shipment;

 3.5 Complete protections;

 3.6 Meet CE requirement;

Packing & Shipment

.

After Service

1. If components are broken within guarantee period due to power supply design or component bad quality, supply replacement free.

2. For overseas customers, in case of problems with power supply, respond within 24 hours from receiving customer's written inform.

3. Supply detailed operation manual and troubleshooting table .

4. Supply technical support to find out problem reason and guidance of troubleshooting.
