Home > Products > 11. Module > MBRP 400A 100V Ultra Fast Soft Recovery Rectifier Diode Module

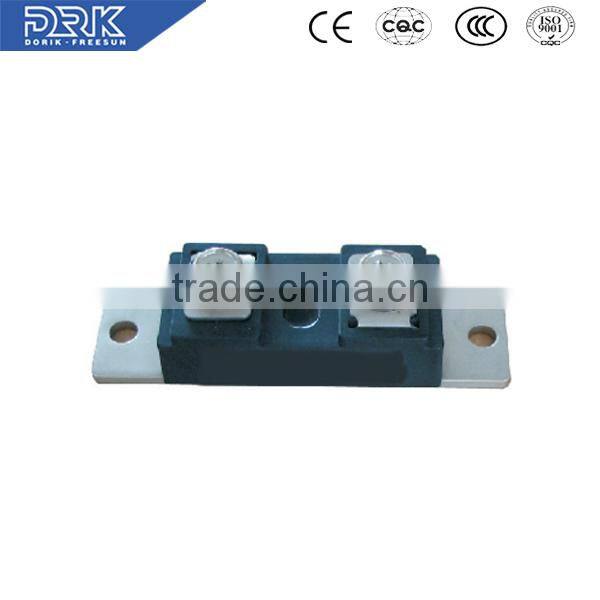

MBRP 400A 100V Ultra Fast Soft Recovery Rectifier Diode Module

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Port Ningbo
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Dorik
Model Number	C-MBRP400100	Type	Switching Diode
Package Type	Through Hole	Max. Reverse Voltage	100V
Max. Forward Current	400A

Product Description

MBRP 400A 100V ultra fast soft recovery rectifier diode module

1.Description:

Ultra FRD module devices are optimized to reduce losses and EMI/RFI in high frequency power conditioning Electrical systems.

These diode modules are ideally suited for power converters, Motors drives and other applications where switching losses are significant portion of the total losses.

2.Features

1) Repetitive Reverse Voltage RRM : =100V

2) Low Forward Voltage Drop : F(Vtyp.) = 0.4V

3) Average Forward Current : IF(AV.) = 400A @ Tc= 100℃

4) Ultra-Fast Reverse Recovery Time rr( : tytp.) = 80ns

5) Extensive Characterization of Recovery Parameters

6) Reduced EMI and RFI

7) Non Isolation Type Package

3.Application Fields

Motor Drives, Free wheel use, High Power Converters, Welders,Various Switching and Telecommunication Power Supply.

4. Technical parameters

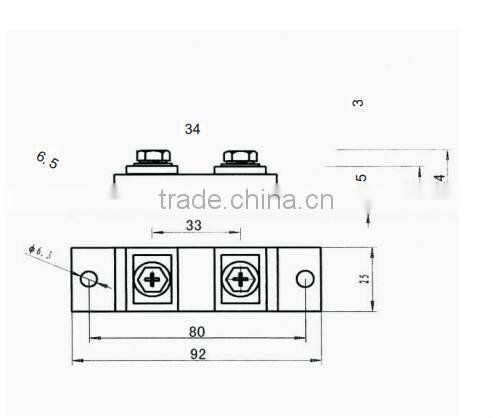

5.Outline drawing and dimension

6. Contact way
