Home > Products > 11. Module > Three phase 100amp bridge rectifier diode
Three phase 100amp bridge rectifier diode
Negotiable
/ Piece
100 Pieces(Min.Order)
- 200000 Piece / Pieces per Month
- Ningbo
- T/T Credit Card
You May Like
-
MBRB20200CT (Schottky Barrier Rectifiers) MBRB20200CT
-
MBR0520L SingleDiode (Electronic Components) MBR0520L
-
1N5822US Microchip Technology Schottky Diodes & Rectifiers Schottky
-
1N4004W-T Rectron Rectifiers SOD-123,1A,400V,GP
-
RHRP30120 onsemi / Fairchild Rectifiers 30A 1200V
-
1N5817 Diotec Semiconductor Schottky Diodes & Rectifiers Schottky, DO-15, 20V, 1A
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | DORIK | Model Number: | C-MDS100A |
| Type: | Bridge Rectifier | Package Type: | Throught Hole | Peak Non-Repetitive Reverse Voltage: | 1600V |
| Mean On-State Current: | 100A | Dimensions: | 80 X 40 mm |
Product Description
Three phase 100amp bridge rectifier diode
1. Technical parameters

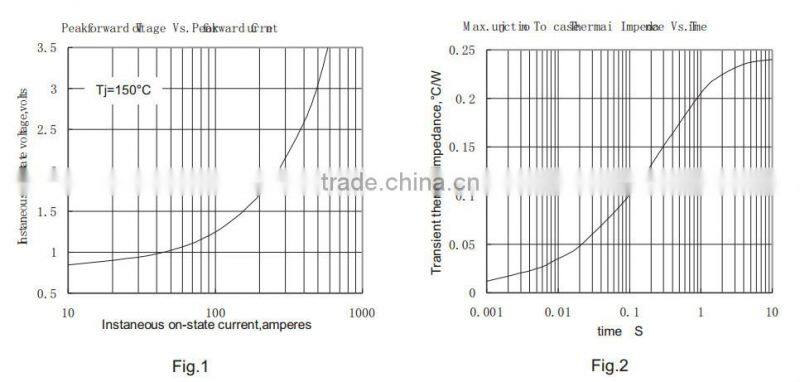

2. Characteristics

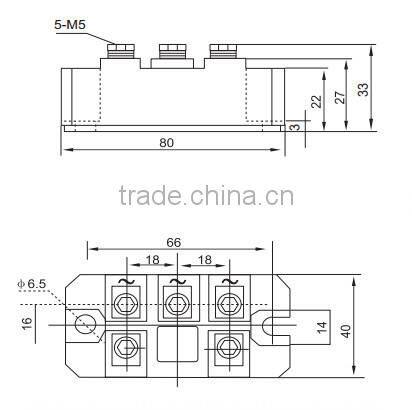

3.Outline drawing and dimension
4. Contact way
Company Name: Ningbo Dorik Co., Ltd.
Contact person: Camille Wang
Tel: 0086-574-89075894-824
Skype: camillewjy
Website: http://www.dorik.en.china.cn
All emails will be replied within 24 hours. Please leave a message in the Trade Manager. Thank you for ordering and hope you enjoy your purchase here. You comments are always welcomed and very important in our long-term business corporation.
urchase here. You comments are always welcomed and very important in our long-term business corporation.
