Home > Products > 10. Switching power supply > Good Quality 12V 30A dc Switching Power Supply
Good Quality 12V 30A dc Switching Power Supply
- Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Dorik | |
| Model Number | D-360-12 | Output Power | 301 - 400W | |
| Output Type | Single | Input Voltage | Other, 110/220VAC | |
| Output Voltage | 12V | Output Frequency | 20KHz | |
| Output Current | 30a |
Product Description

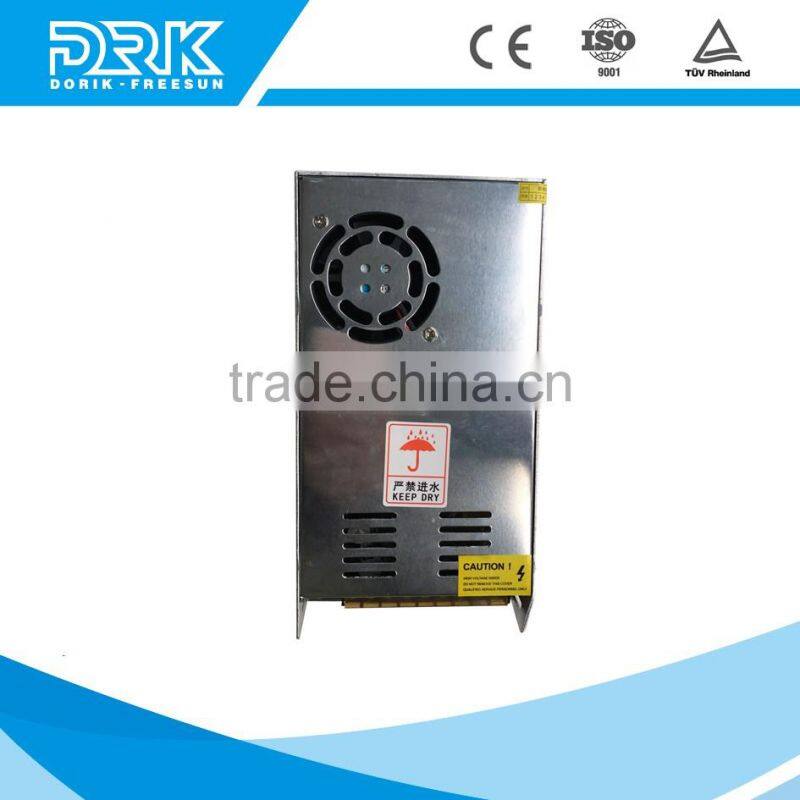

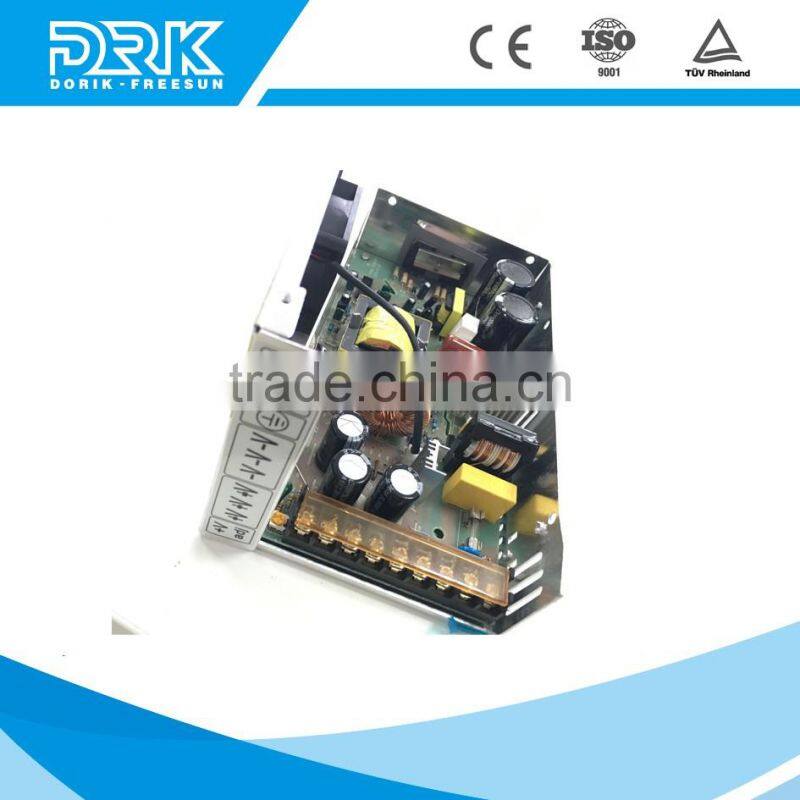

Good quality 12V 30A dc switching power supply
Features:
- Switching Power Supply
- AC input range selectabel by switch
- 100% full load burn-in test
- High efficiency, long life and high reliable
- 2 years warranty
Model | D-360-12 | ||||
Output | DC voltage | 48V | |||
Voltage tolerance | ±1% | ||||
Rated current | 30A | ||||
Current range | 0~30A | ||||
Rated power | 360W | ||||
DC voltage adjustable range | ±10% | ||||
Input | Voltage range | 90 ~ 132VAC / 180 ~ 264VAC | |||
Frequency | 47~63HZ | ||||
Efficiency | 80% | ||||
Protection | Over load | 105 ~ 135% rated output power | |||
Protection type: Hiccup mode, auto-recovery after fault condition is removed. | |||||
Over voltage | Protection type: Hiccup mode, auto-recovery after fault condition is removed. | ||||
Environment | Working temp,humidity | -10°C~+60°C, 20%~90%RH | |||
Storage temp,humidity | -20°C~+85°C, 10%~95%RH non-condensing | ||||
Withstand vibration | 10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes | ||||
Safety | Withstand voltage | I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC | |||
Isolation resistance | I/P-O/P, I/P-FG, O/P-FG: 100M ohms/500VDC | ||||
Fit standard | Safety standard | Compliance to UL1012 | |||
EMC standard | Compliance to EN55022,CLASS A | ||||
Others | Dimension | 215*115*50mm(L*W*H) | |||
Weight | 0.95kg | ||||
1. If components are broken within guarantee period due to power supply design or component bad quality, supply replacement free.
2. For overseas customers, in case of problems with power supply, respond within 24 hours from receiving customer's written inform.
3. Supply detailed operation manual and troubleshooting table .
4. Supply technical support to find out problem reason and guidance of troubleshooting.
