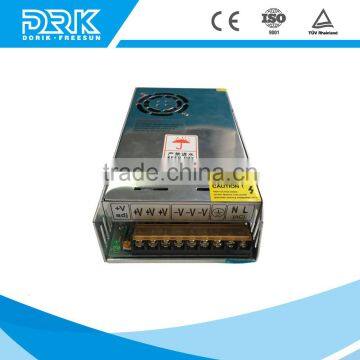

acto dc 48V 7.5A switching power supply

Model

D-360-48

Output

DC voltage

48V

Voltage tolerance

±1%

Rated current

7.5A

Current range

0~7.5A

Rated power

360W

DC voltage adjustable range

±10%

Input

Voltage range

90 ~ 132VAC / 180 ~ 264VAC

Frequency

47~63HZ

Efficiency

83%

Protection

Over load

105 ~ 135% rated output power

Protection type: Hiccup mode, auto-recovery after fault condition is removed.

Over voltage

Protection type: Hiccup mode, auto-recovery after fault condition is removed.

Environment

Working temp,humidity

-10°C~+60°C, 20%~90%RH

Storage temp,humidity

-20°C~+85°C, 10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

Safety

Withstand voltage

I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P, I/P-FG, O/P-FG: 100M ohms/500VDC

Fit standard

Safety standard

Compliance to UL1012

EMC standard

Compliance to EN55022,CLASS A

Others

Dimension

215*115*50mm(L*W*H)

Weight

0.95kg
