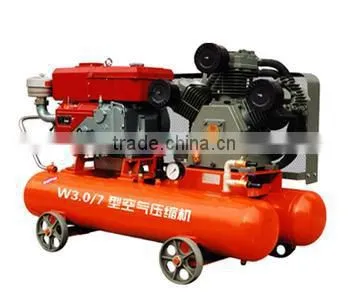

Three stage air compressor

Specifications

specifications:
1. 3cylinder
2.piston air compressor
3.fast cooling

Product Description



Air compressor piston within the cylinder for reciprocating motion of the piston moves to the right and left cavity of the piston in the cylinder pressure is below atmospheric pressure, the suction valve open, outside air inhaled in cylinder, this process is called the compression process. When the output air pressure is higher than the pipe in cylinder pressure, exhaust valve opens. Compressed air to the pipeline, this process is known as the exhaust process. The reciprocating movement of the piston is driven by motor slider-crank mechanism. The rotation of the crank movement into sliding - the reciprocating movement of the piston.

 Product date:



Model	W-3/5
Exhaust (m³/min)	cfm 106
Exhaust Pressure(Mpa)	0.5
Cylinder(dia.(mm) * quantity)	120*3
diesel engine/motor	S1115(22HP) diesel
Volume of gas storage tank(L)	200
Dimension(mm)	1710×860×1245
Total weight(kg)	590

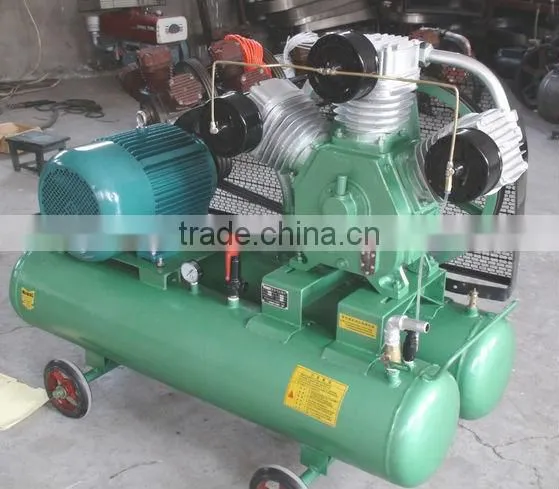

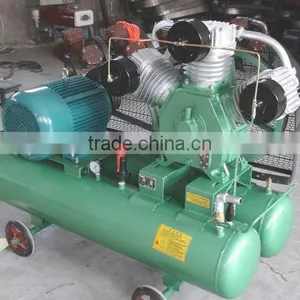

Product show:

The information you may like to know before order:

1. Payment:

T/T (Telegraphic Transfer) or L/C at sight

2. Delivery

Based on order quantity, normally it takes 7-20 days for production.

3. Shipping way

Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

Bulk order: we suggest by air or by sea.

4. Quality Control

We have our own experienced QC.

There will be strict inspection and testing for every order before shipping out.

5. After Services:

1. Our sales team will response for your question within 24 hours (Holidays Excluded)

2. Technical Support will be available in any time

3. Free replacement will provide once the failure confirmed caused by our product quality
