Help CenterFull Hydraulic Side Unloading Rock Loader ,lateral Unloading Coal Mining Loader
Related Products
Product Decription:
It is a mechanical loading ore or rock in the horizontal or slowly inclined tunnel . It can be classified for Vertical claw type, crab claw type, bucket and scraper, etc.
According to the working principle; and electric, pneumatic and diesel engine according to the use of power driven .
Commonly used bucket type rock loader operation is that the machine go forward and bucket down and insert into rocks and then lift bucket and go back, the bucket will dump rocks into mine car and other transportation equipment hanging behind the machine.
So this rock loading machine is widely used all over the world for it’s flexible and reliable, and higher productivity.
Product data:
model | Zcy45r | Zcy60r | Zcy80r | Zcy100r | Zcy120r |
power | 30kw | 30kw | 55kw | 55kw | 55kw |
voltage | 380/660/1140 | 660/1140 | 660/1140 | 660/1140 | |
Bucke t capacity | 0.45m³ | 0.6 m³ | 0.8 m³ | 1.0 m³ | 1.2 m³ |
|
|
|
|
|
|
Bucket width | 1348mm | 1520mm | 1420mm | 1420mm | 1600mm |
Max unloading height | 1400mm | 1700mm | 1700mm | 1700mm | 1700mm |
Depth of dinting | 600mm | 600mm | 400mm | 400mm | 400mm |
Max traction force | 30kn | 30kn | 40kn | 40kn | 40kn |
speed | 0.42m/s | 0.42m/s | 0.81m/s | 0.81m/s | 0.81m/s |
gradeability | ±16° | ±16° | ±16° | ±16° | ±16° |
minimum ground clearance | 180mm | 180mm | 180mm | 180mm | 180mm |
Average pressure | 0.07Mpa | 0.07Mpa | 0.1 Mpa | 0.1 Mpa | 0.1 Mpa |
Hydraulic pressure | 16 Mpa | 16 Mpa | 16 Mpa | 16 Mpa | 16 Mpa |
Noise level | ≤90db | ≤90db | ≤90db | ≤90db | ≤90db |
Length | 4150mm | 4150mm | 5010mm | 5010mm | 5010mm |
Width | 1348 mm | 1520 mm | 1420 mm | 1420 mm | 1600 mm |
height | 2046 mm | 2046 mm | 2180 mm | 2180 mm | 2180 mm |
Total weight | 4800kg | 5100 kg | 8500 kg | 8700 kg | 8900 kg |

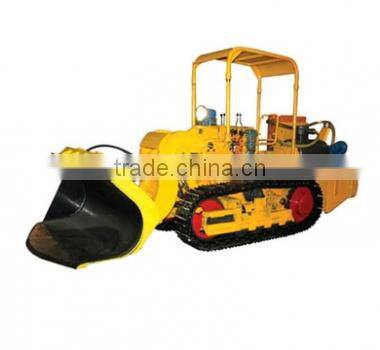

Photos:

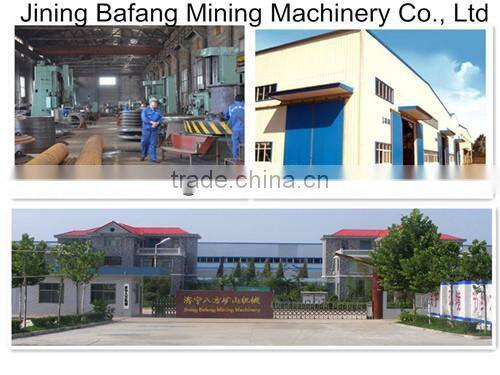

Company Information:
Jining Bafang Mining Machinery Co., Ltd is specialized in manufacturing mining machinery in China. We are committed to researching and developing all kinds of mining and stone processing equipment. Our main products include rock drills, guniting equipments, pumps, mining support equipments, mine car hardware tools, electrical equipments, fasteners and other related accessories
Our products have been exported to more than 20 countries and regions, such as Brazil, Russia, Australia, Africa, South America and Middle East with our outstanding quality, competitive price and on-time considerate service. We have won a high reputation from our esteemed customers
We warmly welcome old and new customers from all over the world to visit our company and establish business relationships with us. We do believe that our mutual cooperation will create a brilliant future.
