Product Decription:
It is a mechanical loading ore or rock in the horizontal or slowly inclined tunnel . It can be classified for Vertical claw type, crab claw type, bucket and scraper, etc.
According to the working principle; and electric, pneumatic and diesel engine according to the use of power driven .

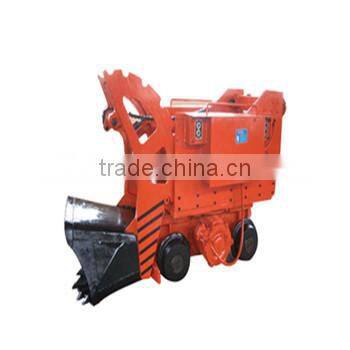

Commonly used bucket type rock loader operation is that the machine go forward and bucket down and insert into rocks and then lift bucket and go back, the bucket will dump rocks into mine car and other transportation equipment hanging behind the machine.
So this rock loading machine is widely used all over the world for it’s flexible and reliable, and higher productivity.
Product data:
model | ZY-17AW | ZY-20 | ZY-20AW | ZY-30AW | ZYQ-26 | |
loading capacity(m³/h) | 20-30 | 30-40 | 30-40 | 50-60 | 40-50 | |
Loading capacity area(m³) | 0.17 | 0.20 | 0.20 | 0.30 | 0.26 | |
Width(mm) | 1.7 | 2.0 | 2.0 | 2.2 | 2.7 | |
gauge | 600mm | |||||
power | electric motor | electric motor | electric motor | electric motor | Fan motor | |
Driving Motor Power(kw) | 10.5 | 10.5 | 10.5 | 1.5 | 10.5 | |
Bucket power(kw) | 10.5 | 10.5 | 13 | 15 | 15 | |
Dumping height(mm) | 1250 | 1330 | 1360 | 1370 | 1250 | |
measurement | Length(mm) | 2120 | 2480 | 2400 | 2620 | 2375 |
Width(mm) | 1011 | 1210 | 1330 | 1300 | 1380 | |
Height(working)(mm) | 1920 | 2180 | 2180 | 2260 | 2240 | |
Height(not working)(mm) | 1200 | 1518 | 1460 | 1545 | 1455 | |
Weight(mm) | 3760 | 3750 | 3700 | 4600 | 2700 | |
Photos:
Company Information:
Jining Bafang Mining Machinery Co., Ltd is specialized in manufacturing mining machinery in China. We are committed to researching and developing all kinds of mining and stone processing equipment. Our main products include rock drills, guniting equipments, pumps, mining support equipments, mine car hardware tools, electrical equipments, fasteners and other related accessories
Our products have been exported to more than 20 countries and regions, such as Brazil, Russia, Australia, Africa, South America and Middle East with our outstanding quality, competitive price and on-time considerate service. We have won a high reputation from our esteemed customers
Contact us!
