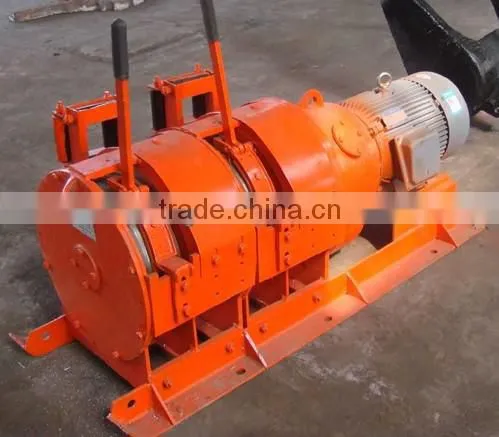

High quality 2JPB-22 scraper winch
- 500 Set / Sets per Month
- Qingdao
- T/T Credit Card
- 4'' Double L Track Sliding Winch, WLL 5,500lbs
- High Quality Heavy Duty Winch Bar for Flatbed Trailer
- Introduction to Marine Electric Hoisting Winches
- Marine pneumatic winch(Good performance, high pulling force)
- Auto parts Nylon winch for Jeep wrangler JK 2007+ 12500lbs bumper winch for Jeep accessories
- Electric Lifting Winch Marine Hydraulic Winches on Dredging Machine Electric Winch for Sale
Product Details
Place of Origin: | Shandong, China | Brand Name: | bafang | Model Number: | 2JPB-22 |
Power Source: | Electric | Application: | Other, coal mine | Capacity: | 20000N |
Product Description
Specifications
Specifications1.two drums
2.high quality
3.22kw electric winch
Specifications
1.22 kw
2.double-drum
3.electric winch
Detail Introduction
1. By the winding wire rope traction on the drum scraper movement back and forth to scraper material
2. 2 JPB rake mine winch is mainly used for metal and other mine pit and open Spaces, and on the level and slope is working as a mineral scraper and filling work.
Technical parameters
Model
| 2JPB-22 |
Main wire rope tension on average | 20000N |
average speed of the main wire rope | 1.2m/s |
Average speed of wire rope | 1.6m/s |
Main wire diameter | 14mm |
Vice wire diameter | 11mm |
Drum diameter | 280mm |
Drum flange diameter | 510mm |
Coiling block | 160mm |
Photos:
About us:
Jining Bafang Mining Machinery Co., Ltd is specialized in manufacturing mining machinery in China. We are committed to researching and developing all kinds of mining and stone processing equipment. Our main products include rock drills, guniting equipments, pumps, mining support equipments, mine car hardware tools, electrical equipments, fasteners and other related accessories
Our products have been exported to more than 20 countries and regions, such as Brazil, Russia, Australia, Africa, South America and Middle East with our outstanding quality, competitive price and on-time considerate service. We have won a high reputation from our esteemed customers
FAQ:
The information you may like to know before order:
1. Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2. Delivery
Based on order quantity, normally it takes 7-20 days for production.
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
1. Our sales team will response for your question within 24 hours (Holidays Excluded)
2. Technical Support will be available in any time
3. Free replacement will provide once the failure confirmed caused by our product quality
