Product Details
| Place of Origin: | Shandong, China | Brand Name: | BAFANG | Model Number: | 2JPB7.5 |
| Power Source: | Electric | Application: | Other, Coal mining | Capacity: | 8-50kn |
Product Description

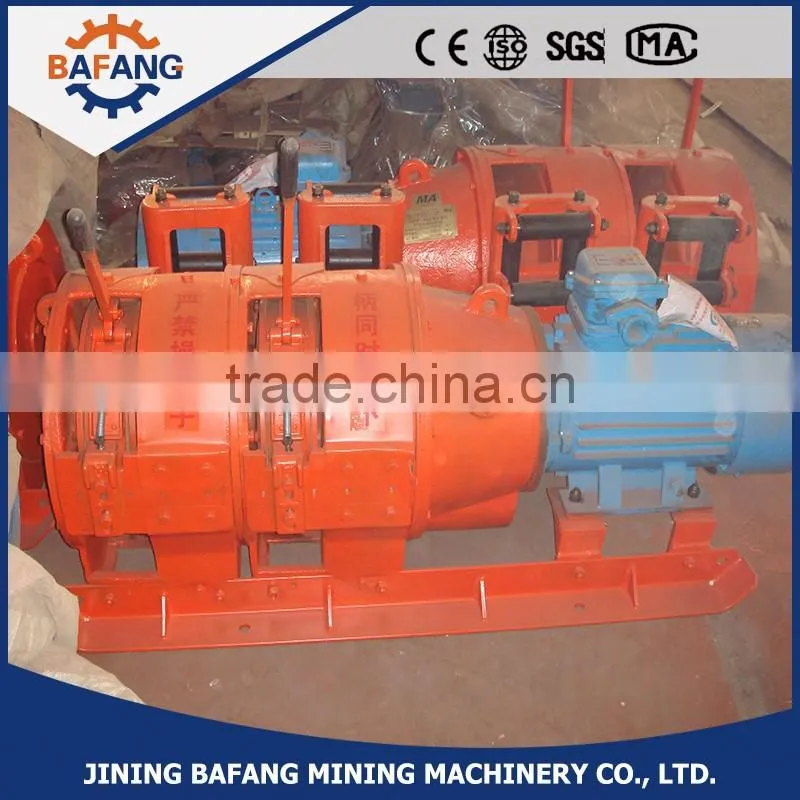

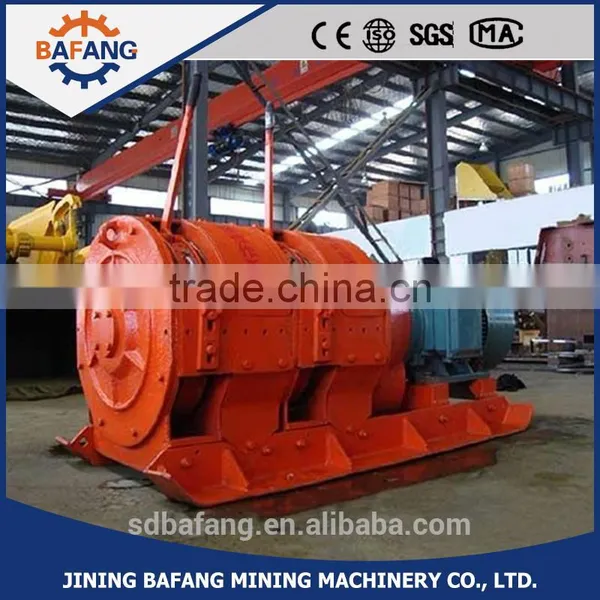

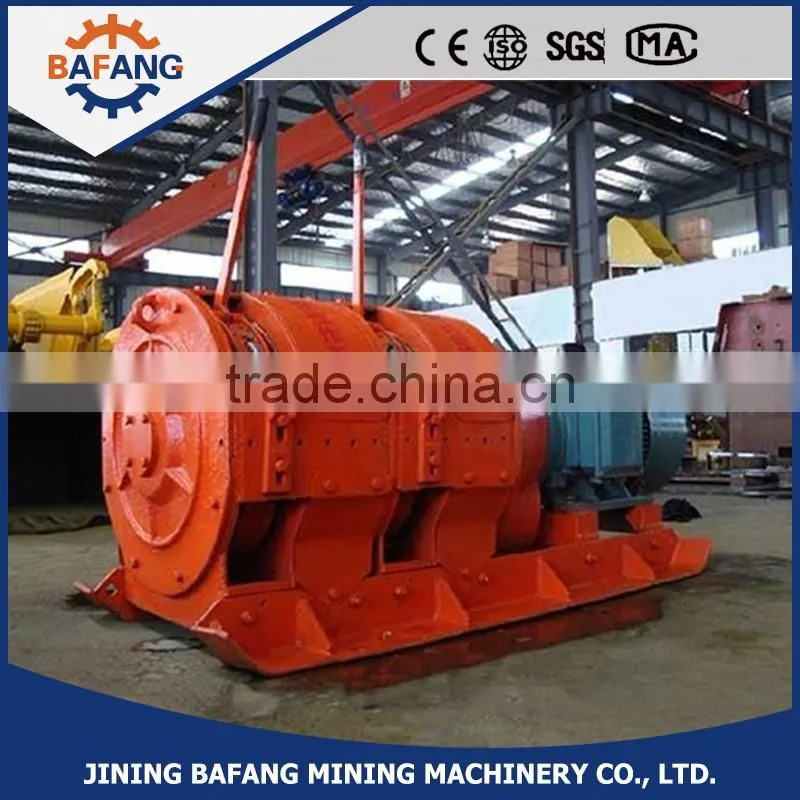

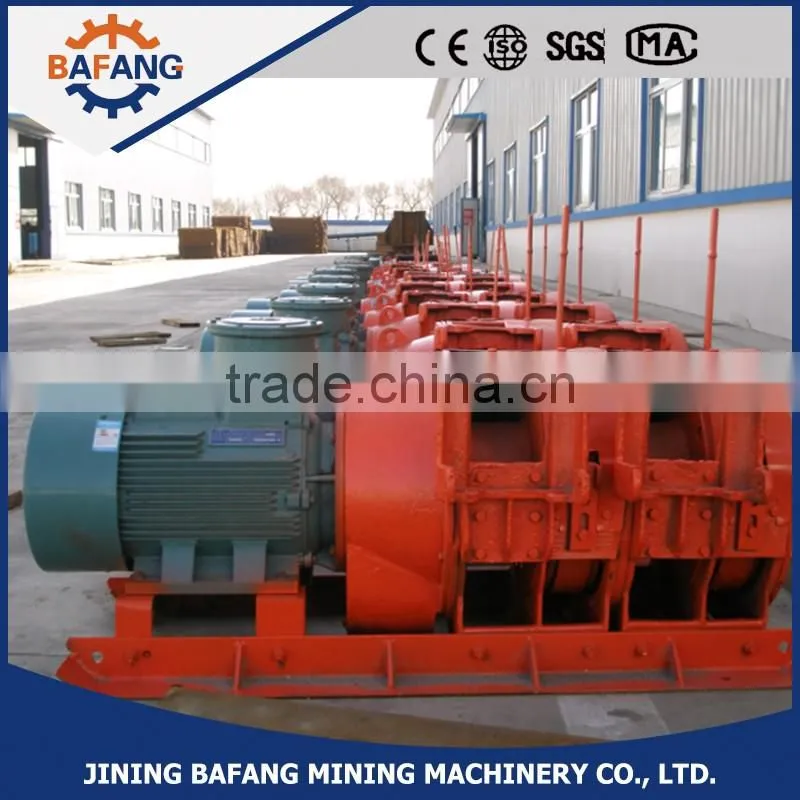

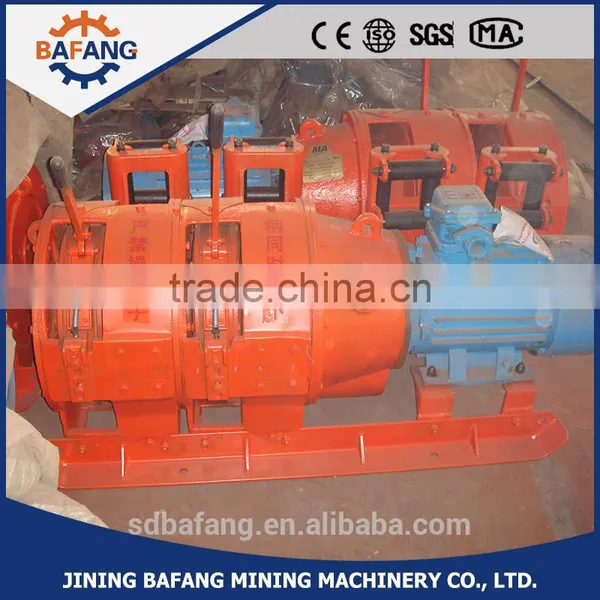

JP series mining use underground mining winch
Electric scraper winch | ||||||||
Item | Unit | 2JP-7.5 | 2JP-15 | 2JP-22 | 2JP-30 | 2JP-55 | ||
Pulling tension | KN | 8 | 14 | 20 | 28 | 50 | ||
wire rope average speed | m/s | 1 | 1.1 | 1.2 | 1.2 | 1.2 | ||
Wire rope diameter | mm | 9.3 | 12.5 | 14 | 15.5 | 18.5 | ||
Drum | Diameter(mm) | 205 | 225 | 280 | 280 | 350 | ||
| Width(mm) | 80 | 125 | 510 | 160 | 180 | ||
Main drum rope capacity | m | 45 | 80 | 80 | 90 | 100 | ||
Second drum rope capacity | m | 45 | 100 | 100 | 110 | 130 | ||
Electric power | Kw | 7.5 | 15 | 22 | 30 | 55 | ||
rotate speed | m/s | 1440 | 1460 | 1470 | 1470 | 1470 | ||
| Length | mm | 1210 | 1525 | 1600 | 1650 | 2070 | |
| Width | mm | 565 | 660 | 730 | 820 | 1010 | |
| Height | mm | 490 | 620 | 640 | 700 | 890 | |
Weight(main engine) | KG | 390 | 660 | 900 | 1155 | 212 | ||
Welcome to contact me!
