Mechanical JTGC-900 Universal Railway Track Gauge

Jining Bafang Mining Machinery Co., Ltd.
Mechanical JTGC-900 Universal Railway Track Gauge thumbnail-1
Mechanical JTGC-900 Universal Railway Track Gauge thumbnail-2
Mechanical JTGC-900 Universal Railway Track Gauge thumbnail-3
Mechanical JTGC-900 Universal Railway Track Gauge photo-1
Mechanical JTGC-900 Universal Railway Track Gauge photo-2
Mechanical JTGC-900 Universal Railway Track Gauge photo-3
US$ 40 - 100 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
bafang
Model Number:
JTGC900
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name bafang
Model Number JTGC900
After-sales Service Provided No overseas service provided

Product Description

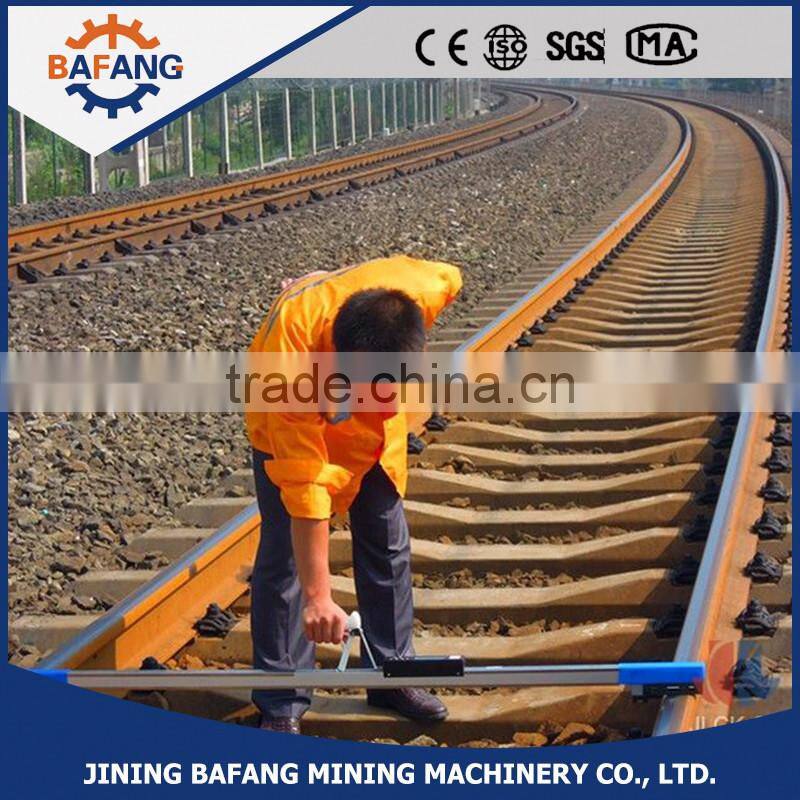

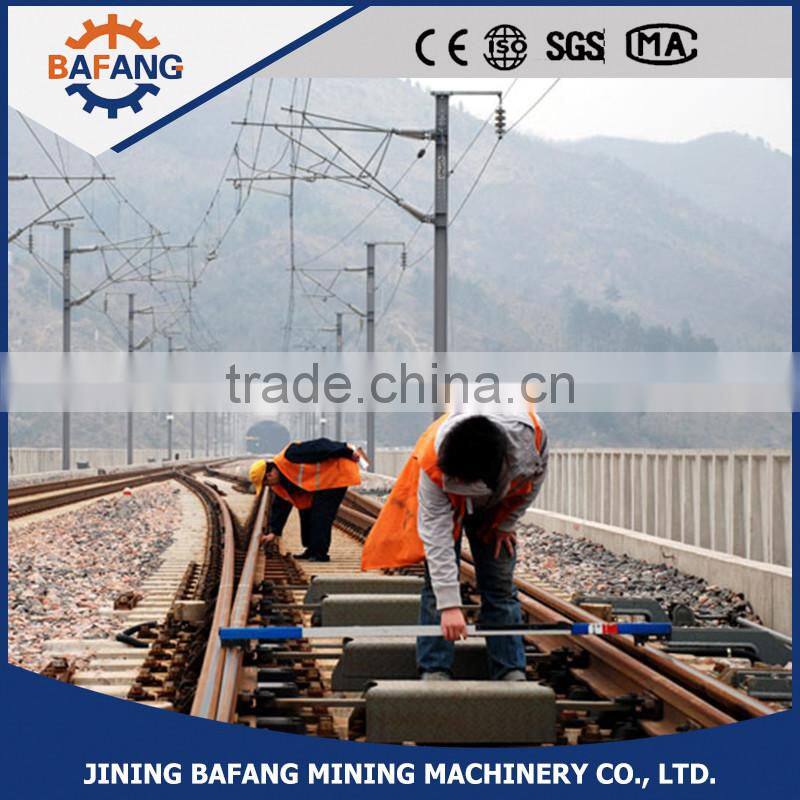

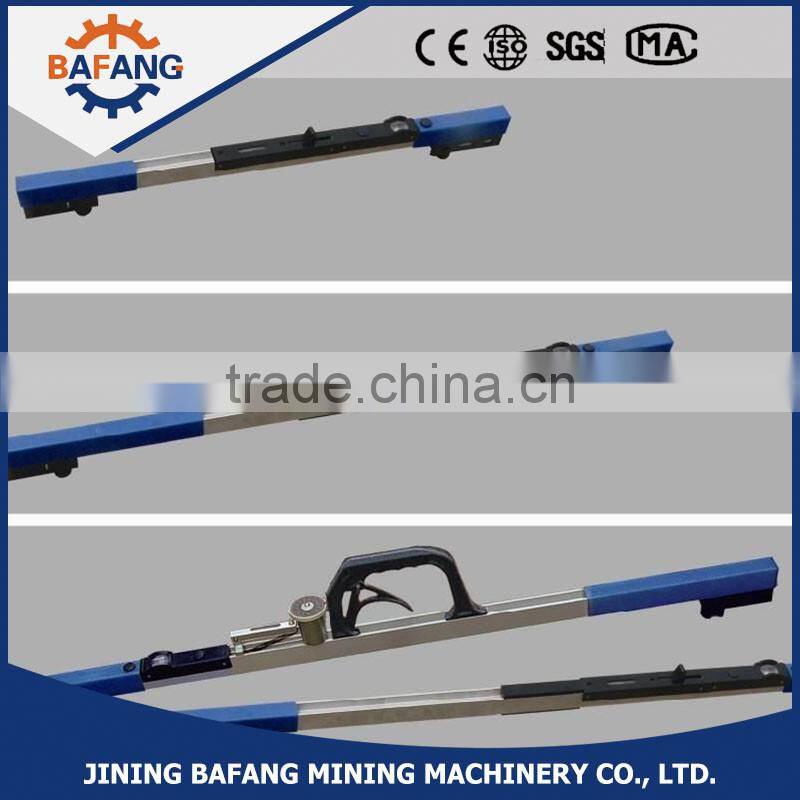

JTGC universal gauge feet which is used for measuring the rail line between the two strands of rail gauge, levelness and super special measuring instruments Coal mine roadway measuring special JTGC track gauge. I company cash supply gauge is 600 mm, 762 mm, 600 mm, 1000 mm, 1435 mm standard gauge track gauge, and can be tailor-made for customers special non standard gauge track gauge, model is complete. Otherwise folding and light railway track gauge, narrow gauge railway track gauge, rail offset '(1300), railway offset' (1400), etc

 Feature



JTGC universal gauge feet adopts load area of 42 * 25 * 2 mm (thickness) of aluminum alloy rectangular pipe, aluminum pipe bottom is 3.5 mm two stiffener

Build rail for aluminum alloy, probe into steel, wear-resisting performance is good

Narrow gauge track gauge adopts load area of 35 h * 25 * 3 mm aluminum alloy profiles Narrow gauge track gauge rail for wear-resistant nylon 66, probe into steel wear-resisting performance is good



Technical parameters



JTGC-1A aluminium alloy fold gauging rule

1610×196×524 ≤2.5kg

JTGC-3A Aluminum alloy work gauging rule ( Has a high board )

1660×106×55  ≤2.3kg

MTGC-3  woodiness gauging rule

1600×80×55   ≤2.2kg

MTGC-4woodiness gauging rule  ( Has a high board )

1600×80×55   ≤2.2kg

ZJTGC-6 Aluminum alloy narrow gauge 600 feet

765×93×30    ≤1.1kg

ZJTGC-7 Aluminum alloy narrow gauge 762 feet ( Has a high board )

915×96×55    ≤1.2kg

ZJTGC- Aluminum alloy narrow gauge 900 feet ( Has a high board )

1070×93×55   ≤1.4kg

JTGC-1000 1000mm aluminium alloy gauging rule

1610×196×524 ≤2.5kg

JTGC-1000W 1000mm magna gauging rule

1660×106×55  ≤2.3kg

JTGC-GC  Ultra high board gauging rule

1660×106×55  ≤2.3kg

JTGC-GBJ  Compensating  magna gauging rule

1660×106×55  ≤2.3kg

Mechanical JTGC-900 universal railway track gaugeMechanical JTGC-900 universal railway track gaugeMechanical JTGC-900 universal railway track gaugeMechanical JTGC-900 universal railway track gaugeMechanical JTGC-900 universal railway track gaugeMechanical JTGC-900 universal railway track gaugeMechanical JTGC-900 universal railway track gaugeMechanical JTGC-900 universal railway track gauge
