Product Description

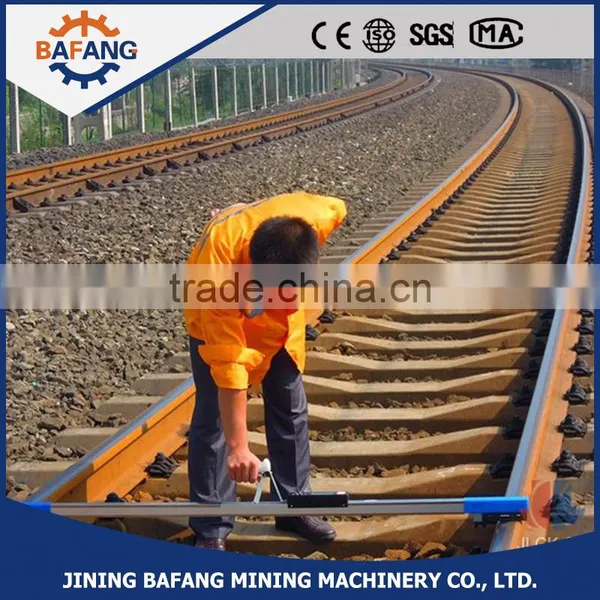

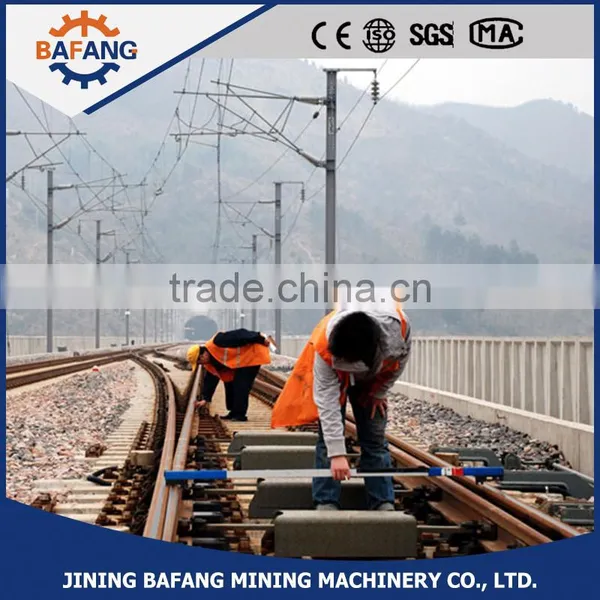

JTGC universal gauge feet which is used for measuring the rail line between the two strands of rail gauge, levelness and super special measuring instruments Coal mine roadway measuring special JTGC track gauge. I company cash supply gauge is 600 mm, 762 mm, 600 mm, 1000 mm, 1435 mm standard gauge track gauge, and can be tailor-made for customers special non standard gauge track gauge, model is complete. Otherwise folding and light railway track gauge, narrow gauge railway track gauge, rail offset '(1300), railway offset' (1400), etc
Feature
JTGC universal gauge feet adopts load area of 42 * 25 * 2 mm (thickness) of aluminum alloy rectangular pipe, aluminum pipe bottom is 3.5 mm two stiffener
Build rail for aluminum alloy, probe into steel, wear-resisting performance is good
Narrow gauge track gauge adopts load area of 35 h * 25 * 3 mm aluminum alloy profiles Narrow gauge track gauge rail for wear-resistant nylon 66, probe into steel wear-resisting performance is good
Technical parameters
JTGC-1A aluminium alloy fold gauging rule |
1610×196×524 ≤2.5kg |
JTGC-3A Aluminum alloy work gauging rule ( Has a high board ) |
1660×106×55 ≤2.3kg |
MTGC-3 woodiness gauging rule |
1600×80×55 ≤2.2kg |
MTGC-4woodiness gauging rule ( Has a high board ) |
1600×80×55 ≤2.2kg |
ZJTGC-6 Aluminum alloy narrow gauge 600 feet |
765×93×30 ≤1.1kg |
ZJTGC-7 Aluminum alloy narrow gauge 762 feet ( Has a high board ) |
915×96×55 ≤1.2kg |
ZJTGC- Aluminum alloy narrow gauge 900 feet ( Has a high board ) |
1070×93×55 ≤1.4kg |
JTGC-1000 1000mm aluminium alloy gauging rule |
1610×196×524 ≤2.5kg |
JTGC-1000W 1000mm magna gauging rule |
1660×106×55 ≤2.3kg |
JTGC-GC Ultra high board gauging rule |
1660×106×55 ≤2.3kg |
JTGC-GBJ Compensating magna gauging rule |
1660×106×55 ≤2.3kg |
