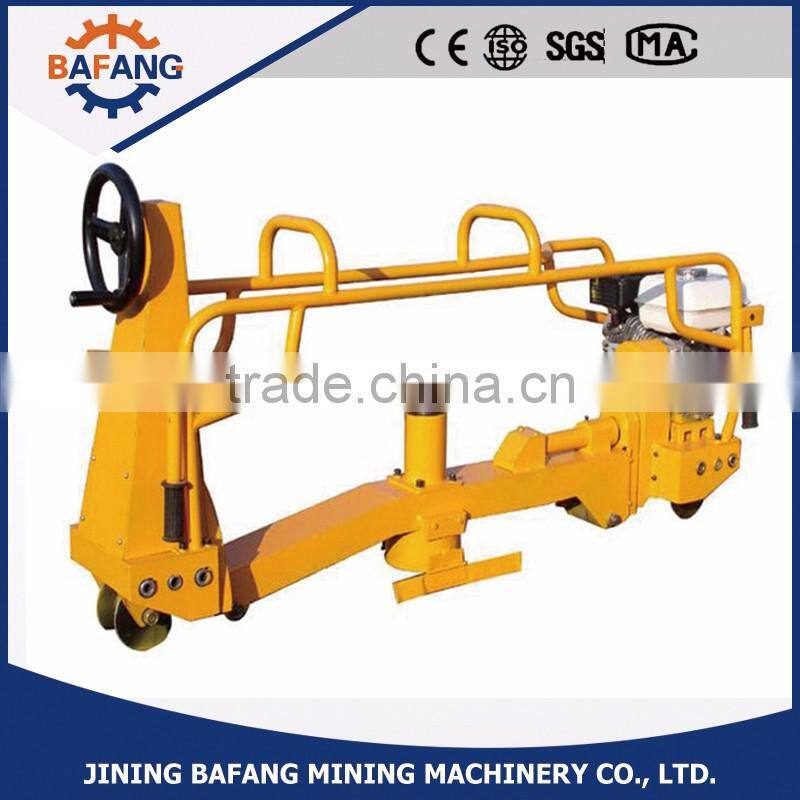

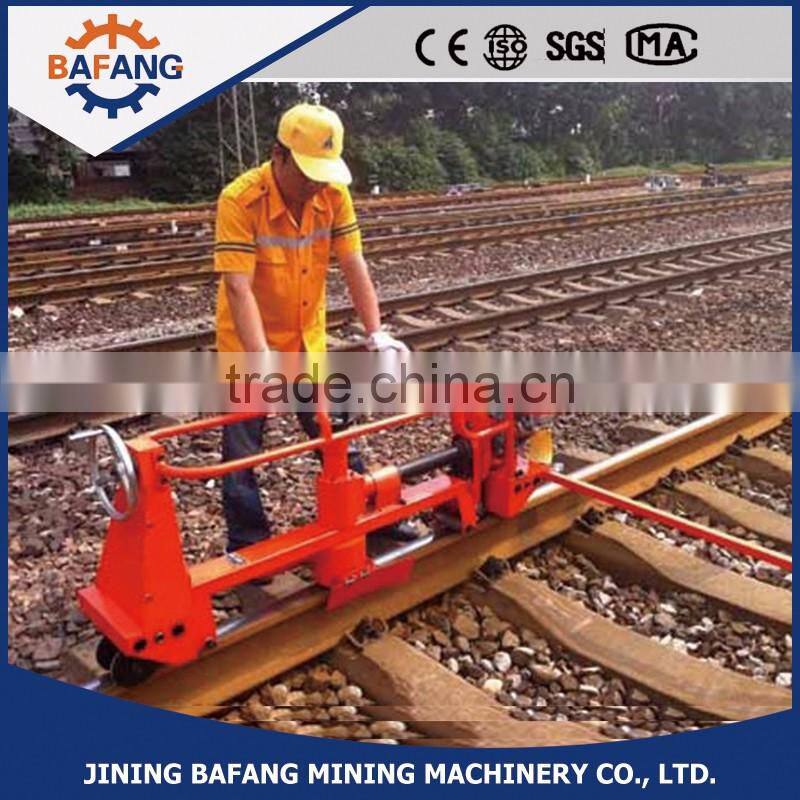

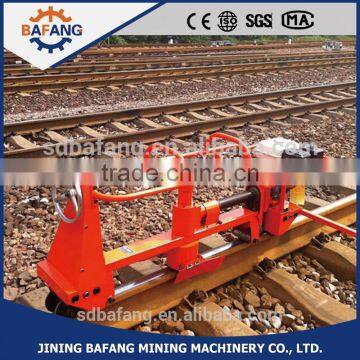

Rail grinding machine

Rail grinding machine

Application:

 This machine is a special and necessary equipment for grinding rail welded joints and rail profile with the characteristics of automatic feeding, control of grinding volume, grinding the rail side without inclining the machine, high work efficiency, easy operation, safty and reliability.

Specification:

Power:4.8KW

Size of abrasive wheel:150*65*55mm

Speed:3600r/min

Spindle speed:4100r/min

Weight:90kg

Dimension:1650*465*831mm

Characteristics:

Scope of application: applicable for grinding steel rail of 43kg/m-75kg/m

Grinding operation: automatic  stroke control to guarantee grinding quality

Profiling function: a perfect profiling capacity to grind rail from rail top to rail side without including the petrol engine according to the geometric shape of rail head.

Insulation performance: the profiling wheel and support wheel insulated with machine body.

Drive wheel adjustment: Adjusting the tightness of the belt by gasket of pulley to keep the belt normal working.

Rail grinder/ Rail grinding machine.
