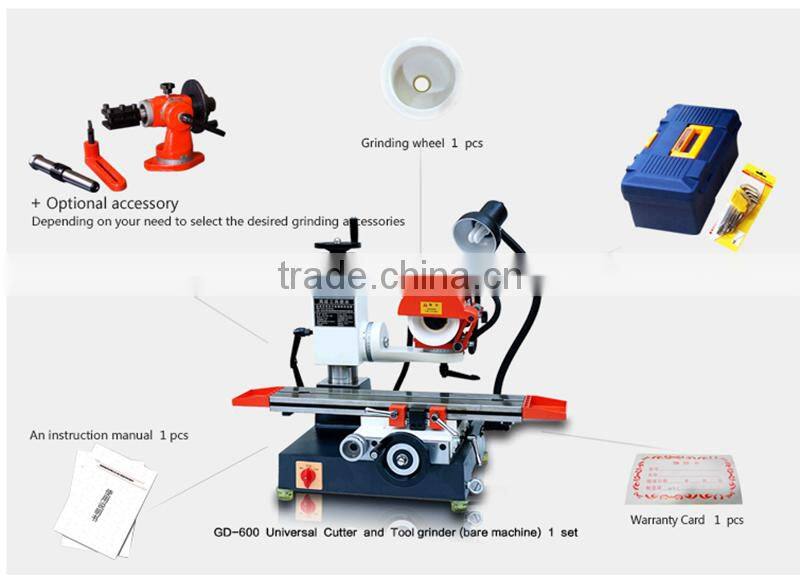

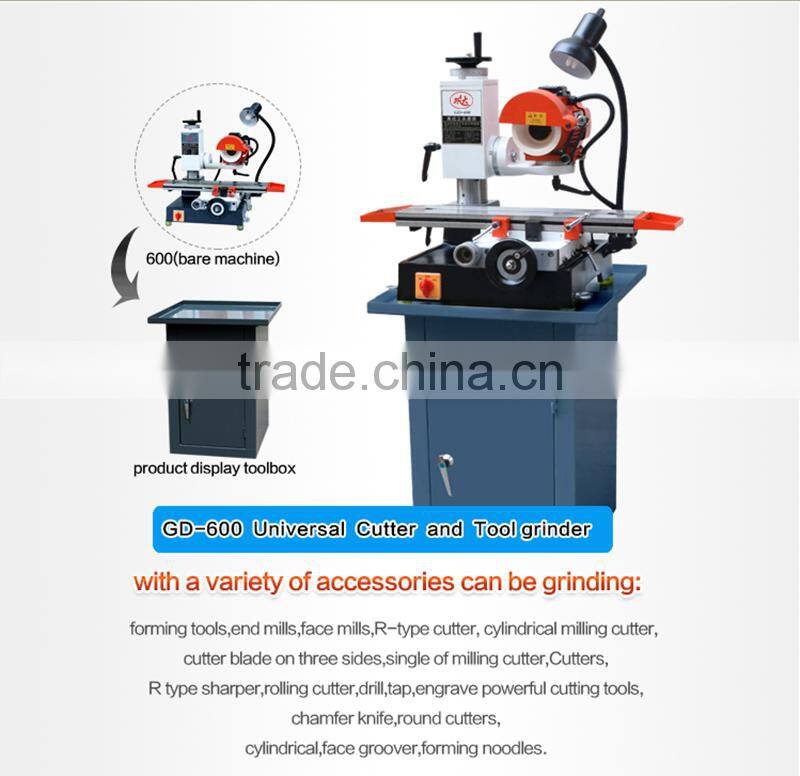

GD-600 universal tool cutter grinder / CE approved Multifunctional hss knife with factory price
Product Features:
1. This machine is able to grind various drilling bits, screw tap, end-milling cutters, R type milling
cutters, R-type turning tools, hobbing cutters, circular paper cutters, cones, and columns, etc.
2. The machines base, made of semi-steel, has higher stability. The lengthwise operating table,
made of high precise rolling straight-line guide rails, can move easily and flexibly.

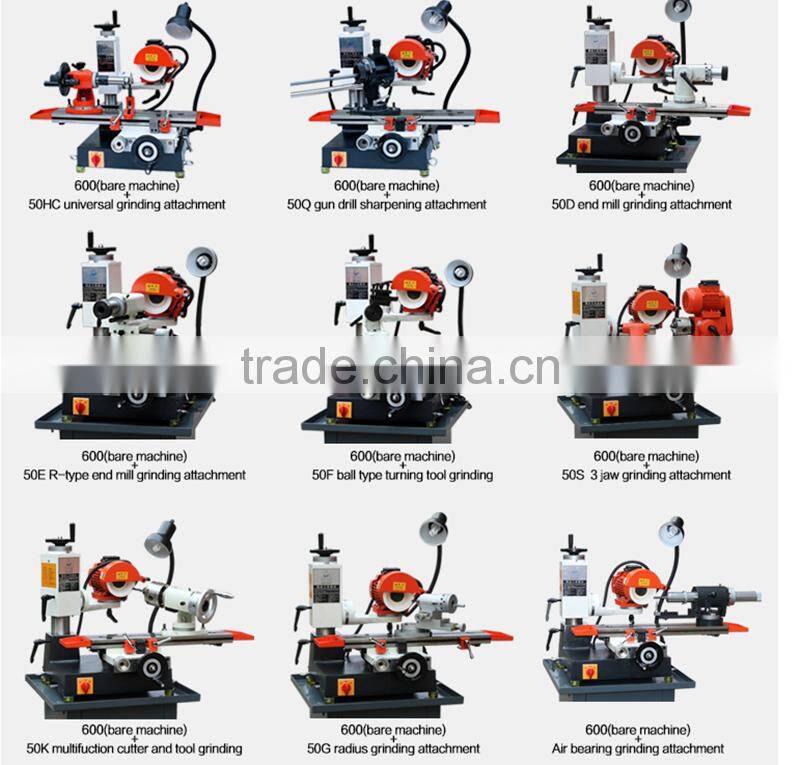

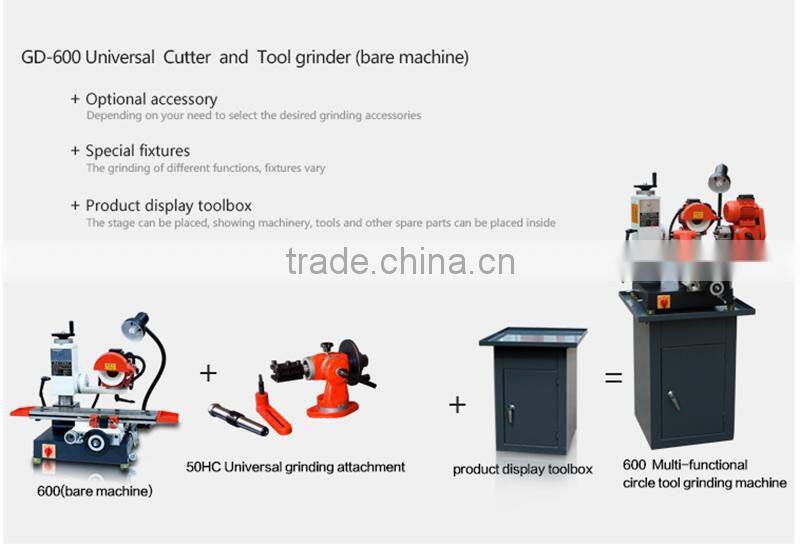

3. Universal cutter sharpeners of GD-6025Q series are applicable to sharpen various cutters. It has many
accessories of various functions, from which users can select and set up the desired ones according to
cutters to sharpen.
4. The grinding head support is made of a double-rotating bracket, which can rotate in horizontal
and vertical planes, and adjust the grinding wheel in 3-D.
5. Since the head can rotate 360 degree in horizontal plane, the grinding wheel can be changed
rapidly.
6. The column structure of the machine enables it to lower and raise the grinding wheel.
Product parameter:
Model |
GD-600 |
Horizontal travel of the operating table |
270mm |
Longitudinal travel of the operating table |
170mm |
Area of the operating table |
130*520mm |
Elevating distance of wheel head |
120mm |
Rotating angle of wheel head |
360° |
Grinding wheel size |
125*50*32mm |
Speed of grinding wheel |
3600rpm |
Horse Power and voltage of motor |
220V,380V/50Hz,60Hz |
Packing size |
700*630*630mm |
G.W |
160kg |
Welcome to contact us
