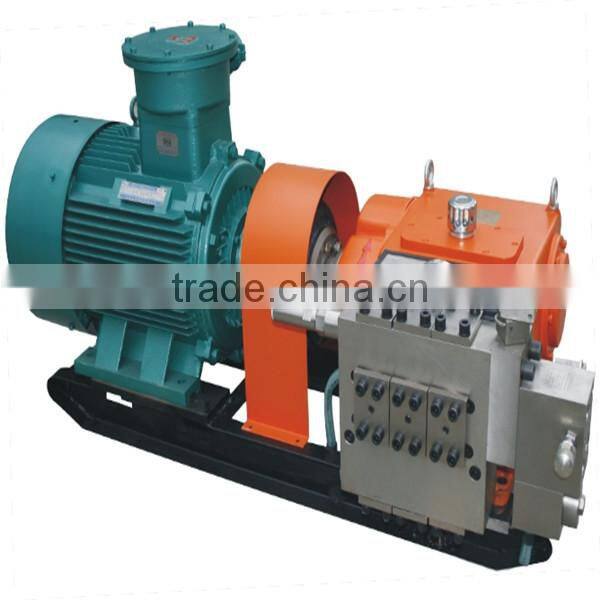

Dust Prevention Jet Pump, Spaying Machine

Dust Prevention Jet Pump, Spaying Machine thumbnail-1
Dust Prevention Jet Pump, Spaying Machine photo-1
US$ 500 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
BAFANG
Model Number:
BPW250 series
Contact Supplier Request Quote Chat Now
Jining Bafang Mining Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name BAFANG
Model Number BPW250 series
Theory Jet Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other, power
Pressure High Pressure
Application Other, FIRE PROOF

Specifications

mine dust prevention jet pumps can be:
1.flow:80-250 m3/h
ing pressure:4.5-16MPa
3.stroke:28-54mm

Dust extinguishing spaying pump for security in mine

Feature

1. It can work underground or in coal mine
2. It is equiped with explosion-proof power
3. There are series machines with differnt capacity

BPW series dust extinguishing spraying pump usually is worked together with coal mining machine or road header.

Supplying pressure water for spray system, it can reduce the dust. It can also be used for high pressure washing

in high-rise building, ships and car. It is consist of two spray pump and one water tank. The second pump is for reserve.



What does BPW250/6.3 etc. Model Dust extinguishing spaying pump MEAN



B: PUMP

P: SPRAYING

W: FOG

250: the flow speed, L/min

6.3: the working pressure, MPa

pump spraying fog with the flow speed 250 L/min and working pressure 6.3 MPa



Specification



Model



rated flow

L/min

Working pressure

MPa

Plunger diameter

mm

Plunger stroke

mm

reciprocal time

 time/min

Motor power

kw

Filtering

Accuracy

μm

BPW80/6.3

80

6.3

56

28

421

11

180

BPW100/16

100

16

56

28

421

11

180

BPW120/4.5

120

4.5

56

40

421

11

180

BPW125/16

125

16

56

40

421

11

180

BPW160/16

160

16

56

40

421

11

180



Model



rated flow

L/min

Working pressure

MPa

Plunger diameter

mm

Plunger stroke

mm

Reciprocal time

time/min

Motor power

kw

Filtering

 Accuracy

μm

BPW200/6.3

200

6.3

63

45

532

30

180

BPW200/12.5

200

12.5

63

45

532

30

180

BPW250/6.3

250

6.3

63

54

532

37

180

BPW250/10

250

10

63

54

532

37

180

BPW250/16

250

16

63

54

532

37

180





 Dust prevention jet pump, spaying machine
