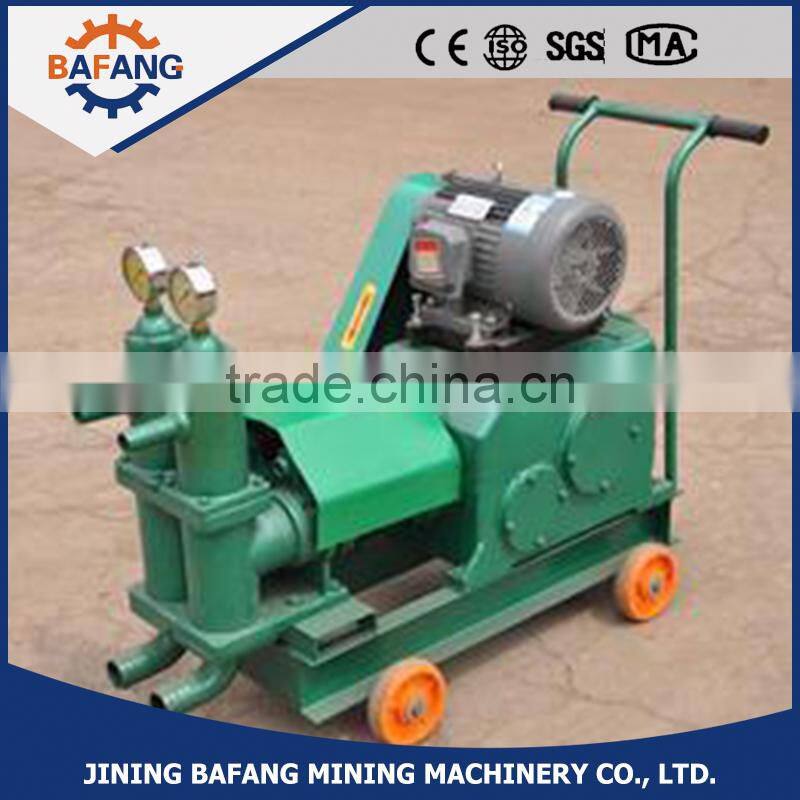

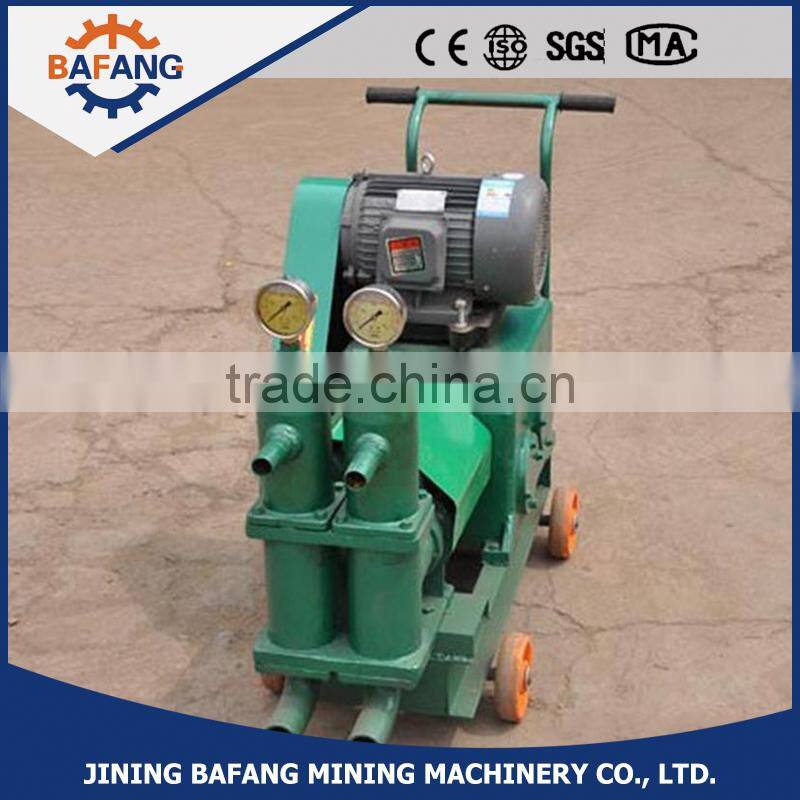

HJB-6 Mortar Grouting Pumps/Mortar Grout Pump Manufacturer
- 500 Set / Sets per Month
- qingdao
- T/T
Product Details
Condition: | New | Max. Conveying Distance: | 80-100m | Max Aggregate Size: | 6m3/h |
Hose Inner Diameter: | 64 mm | Place of Origin: | Shandong, China | Brand Name: | bafang |
Model Number: | UB-6 | Voltage: | 220V/380V/400V/415V/440V/660V 50Hz/60Hz | Power(W): | 5.5KW |
Weight: | 350KG | Certification: | ISO9001 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Features:
1. UB-6 Mortar Grout Pump piston Cement Pump is an advaned grouting machine;
2. This machine is widely used for Construction, Engineering, Mining, Tunnel, Underground Engineering and Hydroelectric project.
3. Can be transported and set up again quickly;
4. Easy to install and move;
5. Wide range of applications
UP-6 can be widely applied in:
- Construction Engineering;
- Defence Construction;
- Civil Air Defense Projects;
- Tunnel Construction;
- Hydraulic Engineering Reinforced;
- Bridges Grouting Reinforcement;
- Culvert & Tunnel Grouting Reinforcement;
- Highway Pavement Maintenance.
Technical Date
Model | UB-6 |
output | 6m3/h |
Working Pressure | 6.0MPa |
Motor Power | 5.5KW |
Motor Speed | 1440r/min |
Vertical Delivery distance | 80-100m |
Horizontal Delivery distance | 200m |
Inlet diameter | 64mm |
Outlet diameter | 38mm |
Weight | 350kg |
SIZE(L×W×H) | 1250×480×940MM |
Contact Us
- Jining Bafang Mining Machinery Co., Ltd.
- Contact nameAndy Zuo
- Phone86-537-2289978
- AddressNo.30, Jinyu Road Jining,Shandong
