Product Details
| Condition: | New | Type: | Universal | CNC or Not: | Normal |
| Max. Grinding Diameter: | 200mm | Max. Grinding Length: | 10cm | Place of Origin: | Shandong, China |
| Brand Name: | Bafang | Model Number: | GD-20A/B | Voltage: | 380V 220V |
| Power(W): | 0.25KW | Dimension(L*W*H): | 536*425*415mm | Weight: | 55kg |
| Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

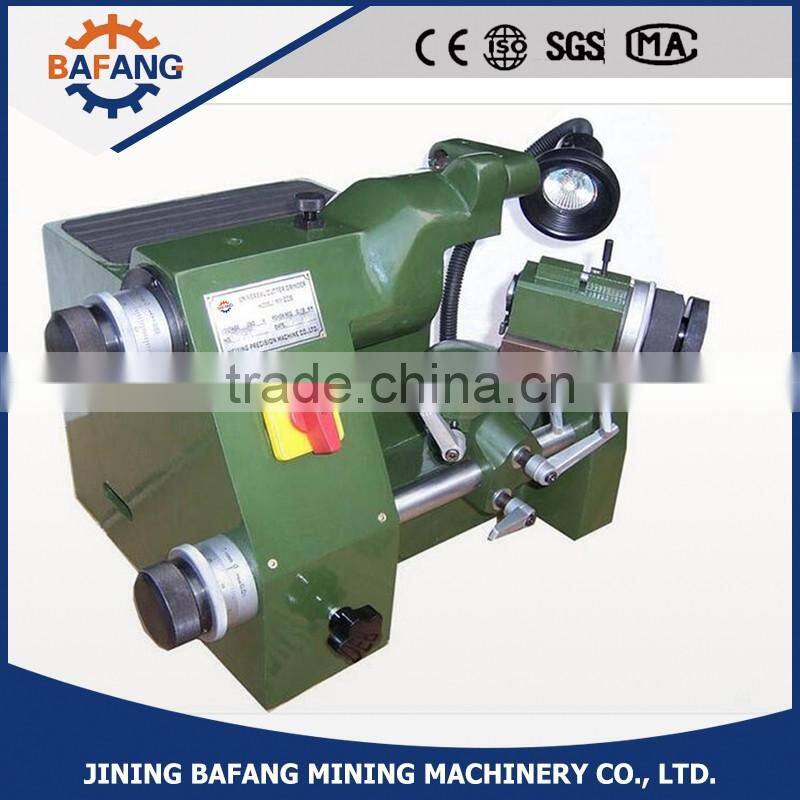

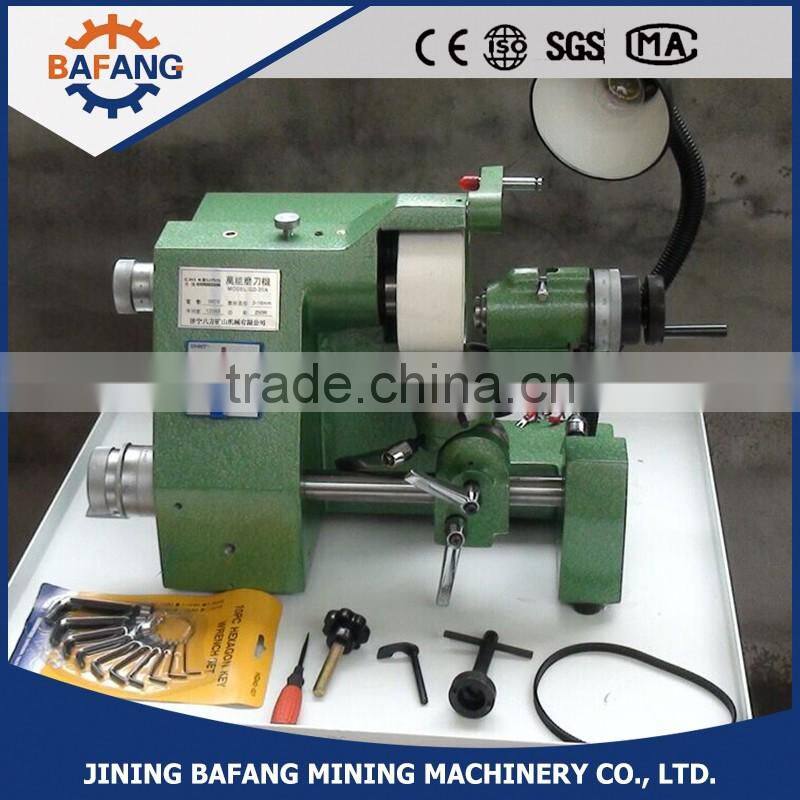

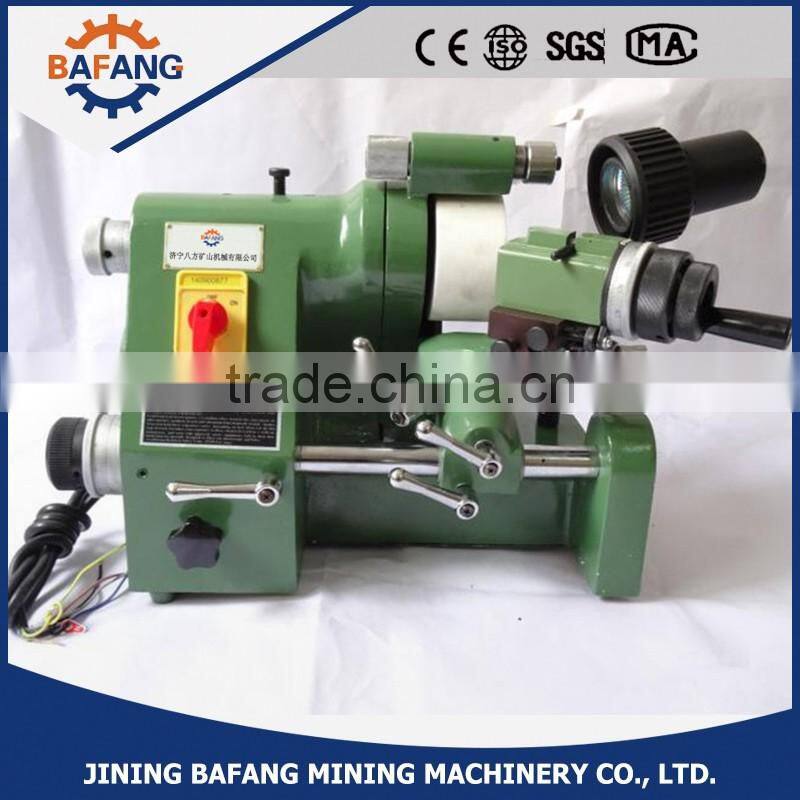

Professional Universal manual tool cutter grinder machine with CE certificate
GD-20A/B universal cutter grinder is necessary equipment for computer engraving machine and Engraving Milling machine and CNC center,it is specially designed for sharpening various diameters,angles of carving knives,straight shank cutter,engraving cutter and so on,it is with good precision,no skill request.
Main Parameter:
Grinding wheel
| Diameter | Φ100mm |
Thickness | 50mm | |
Hole diameter | Φ20mm | |
Spindle speed | 5200rpm | |
Max.clamping diameter | Φ3-16mm | |
Longitudinal traver of index head carrier | 140mm | |
Longitudinal adjustment travel of index head carrler | 18mm | |
Spindle and wheel longltudinal adjustment travel | 6mm | |
Taper angle range | 0~180° | |
Negative taper angle range | 0~52° | |
Relief angle range | 0~44° | |
Motor
| Power | 0.25kw |
Speed | 2810rpm | |
Voltage Single-Phase | 380v | |
Voltage Single-Phase | 220v | |
Frequency | 50Hz/60Hz | |
Gross weight | 45kg | |
Packing dimensions | 536*424*415mm | |
Standard Accessories
| Tool | 1 set |
Diamond Pen 0.25 karat | 1 pcs | |
lamp | 1 set | |
Collet | 3 pcs | |
