2017 Hot Sell Universal Tool and Cutter Grinder Grinding Machine U2

2017 Hot Sell Universal Tool and Cutter Grinder Grinding Machine U2 photo-1
2017 Hot Sell Universal Tool and Cutter Grinder Grinding Machine U2 photo-2
US$ 350 - 550 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Universal
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Universal
CNC or Not Normal
Max. Grinding Diameter 200mm
Max. Grinding Length Undefined
Place of Origin Shandong, China
Brand Name Bafang
Model Number U2 model
Voltage 380V 220V
Power(W) 0.375KW
Dimension(L*W*H) 570*480*470mm
Weight 55kg
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas

2017 Hot Sell Universal Tool and Cutter Grinder grinding machine U2

2017 Hot Sell Universal Tool and Cutter Grinder grinding machine U2

1.  Used for grinding of HSS and carbide engraving/carving cutters with single lip and multiple flutes in various shapes.

2.    Used for grinding Lathe tool ,and Twist Drill,End Mill,just match Optional attachment .

3.  Large range 3C collets(Ø3mm-Ø16mm ).

Specification:

MODEL

U2

Max. collet capacity

Ø16

Max. grinding capacity

Ø25mm

Longitudinal traver of index head carrer

140mm

Longitudinal adjustment travel of index head carrier

180mm

Spindle and wheel longitudinal adjustment travel

600mm

Taper angle

0° ~ 180°

Relief angle

0° ~ 44°

Negative angle

0° ~ 52°

Spindle speed

5,200 RPM

Cup grinding wheel

100 x 50 x 20mm

Motor

380V/220V,50/60Hz

N.W. / G.W

50kgs / 60kgs

Packing size

570*480*470mm

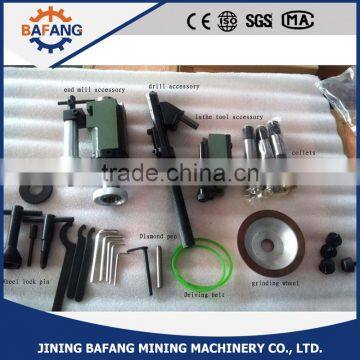

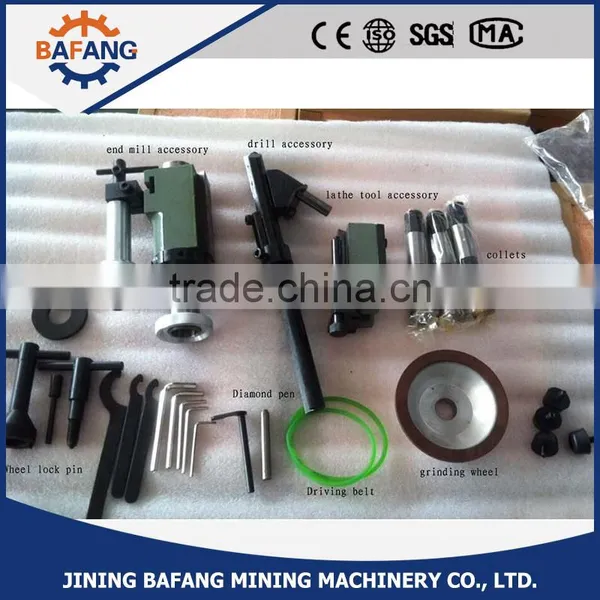

Standard Accessories:

Collet

Ø3-16mm(3pcs)

Diamond wheel

1pc

Diamond pen

1pc

Belt

1pc

Tools

1set

Lamp

1pc

Optional Accessories:

Twist drill grinding attachment

Ø3-8mm

End mill grinding attachment

Ø3-16mm

Lathe tool grinding attachment

20*20mm

Stand

diamond wheel



2017 Hot Sell Universal Tool and Cutter Grinder grinding machine U2



2017 Hot Sell Universal Tool and Cutter Grinder grinding machine U2



2017 Hot Sell Universal Tool and Cutter Grinder grinding machine U2



2017 Hot Sell Universal Tool and Cutter Grinder grinding machine U2

2017 Hot Sell Universal Tool and Cutter Grinder grinding machine U2

2017 Hot Sell Universal Tool and Cutter Grinder grinding machine U22017 Hot Sell Universal Tool and Cutter Grinder grinding machine U22017 Hot Sell Universal Tool and Cutter Grinder grinding machine U2

2017 Hot Sell Universal Tool and Cutter Grinder grinding machine U2

2017 Hot Sell Universal Tool and Cutter Grinder grinding machine U2
