Help Center500mm Coal Mining Tail Roller of Scraper Conveyor/accessory of Scraper Conveyor
Related Products
-
Explosion Proof Junction Boxes for High-pressure Steel Clad CableUS$ 200 - 500MOQ: 1 Piece -
Underground Cable Junction Box 6KVUS$ 200 - 500MOQ: 2 Pieces
-
Good Quality 40Tscraper Conveyor Blind Shaft Assembly f /coal Mining Equipment AccessoryUS$ 50 - 200MOQ: 1 Piece
-
Underground Casting Junction Boxes for Coal MineUS$ 200 - 500MOQ: 1 Piece
-
68-78mm Explosion Proof Junction Box for High-pressureUS$ 200 - 500MOQ: 2 Pieces
Specifications
Specifications :1. Large carrying capacity
2. long service life
3.good price
Product Description

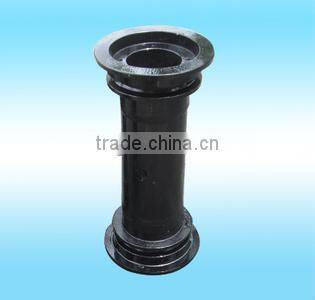

Scraping conveyor roller, includes dam board ,set screw,sealed ring, axle sleeve, axle and cylinder body. Near the shaft axis of the body, at the end of the shaft axis neck, symmetrical equipped with shaft sleeve, bearing suits in the collar of peripheral; Near the shaft sleeve on the shaft journal, equipped with sealing ring, a transverse baffle, close to the cylinder body and bearing press on the sealing ring, a number greater than or equal to 1 set screws, become an organic whole repeatedly the baffle and the cylinder body. This tail roller has long service life and great popularization value, because of it’s large bearing capacity, impact resistance, simple structure, easy maintenance, and it can apply to water, dust working environment. The thickest roller diameter is 250mm, the length is 500mm,and single weight is 69kgs. Simple structure,and easy installment can prevent chain phenomenon effectively.
Product Show:
Technical parameter:
roller diameter |
250mm |
length |
500mm |
weight |
69kgs |
The information you may like to know before order:
1. Payment:
T/T (Telegraphic Transfer) or L/C at sight
2. Delivery
Based on order quantity, normally it takes 7-20 days for production.
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
1. Our sales team will response for your question within 24 hours (Holidays Excluded)
2. Technical Support will be available in any time
3. Free replacement will provide once the failure confirmed caused by our product quality
