explosion proof junction boxes for high-pressure steel clad cable

Specifications

explosion proof junction box
1. used in coal extraction place
2. suitable for voltage no more than 10 KV
3. 3 outlet

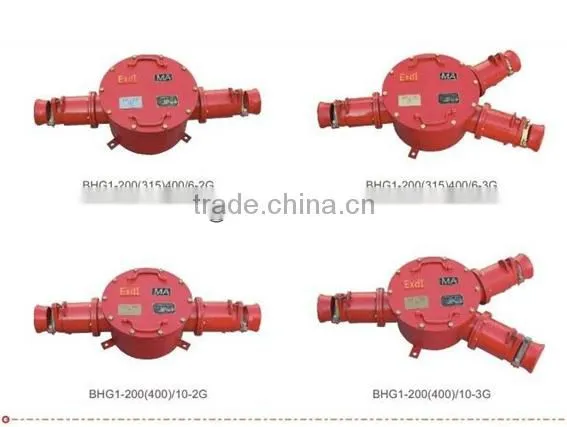

 Explosion proof junction box

1.Safe and reliable.
2.Small size, light weight
3.Good insulating property.
4.Pairs from 25 to 400 can be chosen





 Specification



Item	Rated current(A)	Rated voltage(KV)	Max diameter of the cable(MM)	Outlet
BHG1-400/10-2G(3G)	400	10	Φ68~78	2 or 3
BHG1-400/6-2G(3G)	400	6	Φ68~78	2 or 3
BHG1-400/3.3-2G(3G)	400	3.3	Φ68~78	2 or 3
BHG1-200/10-2G(3G)	200	10	Φ68~78	2 or 3
BHG1-200/6-2G(3G)	200	6	Φ68~78	2 or 3
BHG1-200/3.3-2G(3G)	200	3.3	Φ68~78	2 or 3
BHG1-315/10-2G(3G)	315	10	Φ68~78	2 or 3
BHG1-315/6-2G(3G)	315	6	Φ68~78	2 or 3
BHG1-315/3.3-2G(3G)	315	3.3	Φ68~78	2 or 3



Overall size and weight per junction box

Item                                       size    mm            weight /kg

BHG1-400(315,200)/6-2   856X552X220    60
BHG1-400(315,200)/6-3   885X400X220     70
BHG1-400(200)/10-2       906X420X256       70
BHG1-400/10-3                876X562X256        80



The information you may like to know before order:

1. Payment

T/T (Telegraphic Transfer) or Western Union or L/C at sight

2. Delivery

Based on order quantity, normally it takes 7-20 days for production.

3. Shipping

Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

Bulk order: we suggest by air or by sea.

4. Quality Control

We have our own experienced QC.

There will be strict inspection and testing for every order before shipping out.

5. After Services:

1. Our sales team will response for your question within 24 hours (Holidays Excluded)

2. Technical Support will be available in any time

3. Free replacement will provide once the failure confirmed caused by our product quality
