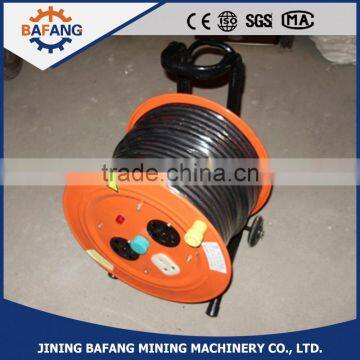

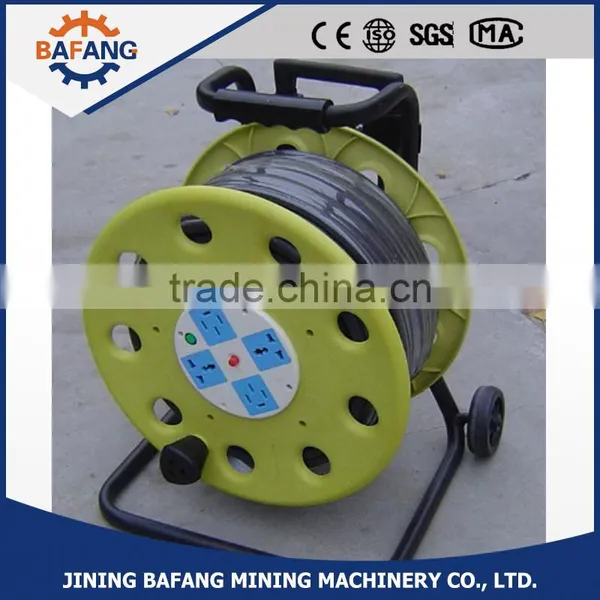

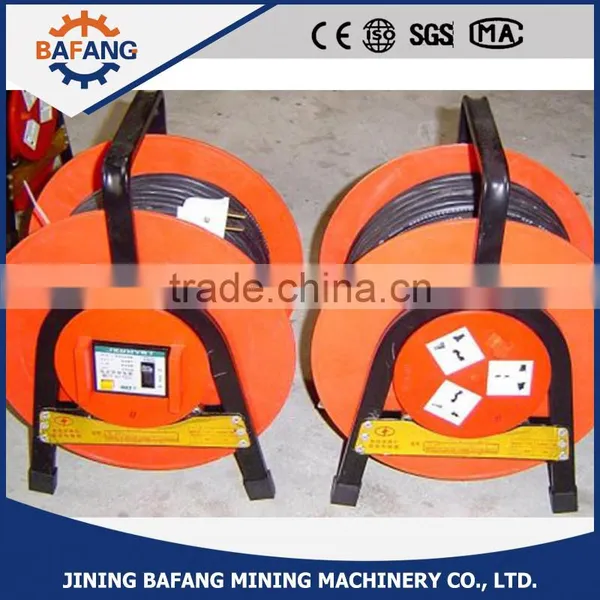

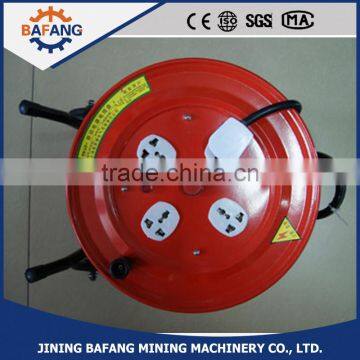

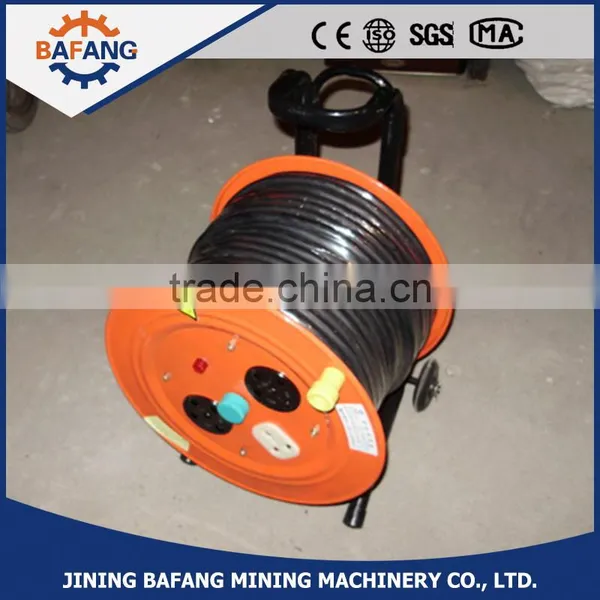

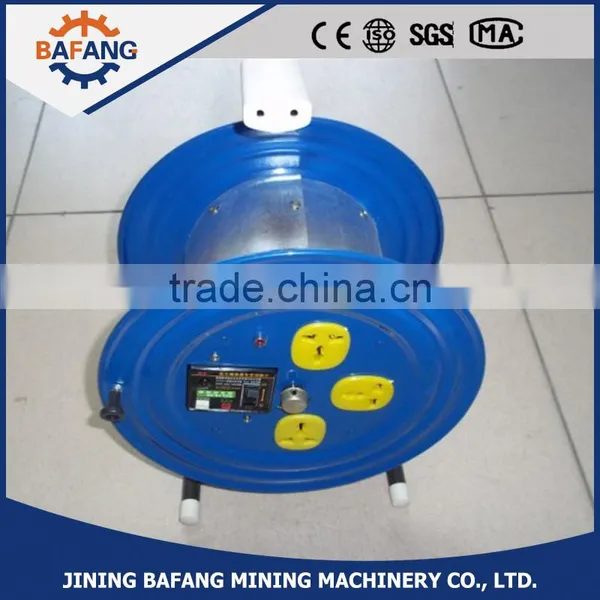

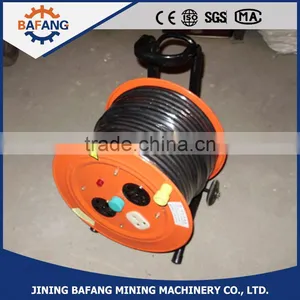

Construction machinery dedicated movable type cable reel
BRIEF INTRODUCTION :
We have being design and manufacture the power supply cable reel with advanced technology and excellent performance to meet with the requirement of supplying power to the mobile electrical apparatus such as lifting electromagnet, electric powered flat bed trailer,all kinds of cranes, electrical powered grab buckets,etc.. According to the driving source of spooling off the cable, this reel has two types available as: Spring Type & Electrical Powered Type.
Features:
- Using spiral springs as power without electric energy consumption to keep reliable in operation
- Using collector slip spring carbon brush bracket to transfer the electric energy steadily and continuously
- Equipped reversible unit to avoid the reel counter-- rotating to breakthe springs
- Power supply easily, safety and reliability in operation, correct strs on the cables
Elastic power supply cable reel series JT is a kind of automatic cable reel driven by the spiral springs which adopted the imported international universal technology of spiral power spring exploiting energy storage of itself. There are three different types of product available for the customers: slip ring built-in type with compact and pretty contour; slip ring exterior installed type in convenience of service, over hanging type which can coil up much longer cables.
BENIFITS:
- Easy installation and start of operation
- Corrosion and water proof
- Silver brush would prevent and reduce the noise by conductors friction
Technical Data:
| Series | item | A | B | C | D1 | D2 | d | E | F | W | Weight(kg) |
| 15m,20m Series | 1 | 300 | 360 | 400 | 500 | 700 | 15 | 440 | 600 | 250 | 95 |
| 2 | 490 | 650 | 300 | 100 | |||||||
| 3 | 560 | 720 | 250 | 115 | |||||||
| 4 | 610 | 770 | 300 | 120 | |||||||
| 5 | 720 | 880 | 300 | 150 |
| Cable Model | Enabled Current | 15m Series | item | 20m Series | item | 25m Series | item | ||
| Core No.*Cross Section | Continuously | 1 min on/off | |||||||
| YC2*10 | 58 | 75 | JTA75-15-2 | 1 | JTA75-20-2 | 1 | JTA75-25-2 | 2 | |
| JTB75-15-2 | JTB75-20-2 | JTB75-25-2 | |||||||
| YC2*16 | 77 | 100 | JTA100-15-2 | 1 | JTA100-20-2 | 3 | JTA100-25-2 | 2 | |
| JTB100-15-2 | JTB100-20-2 | JTB100-25-2 | |||||||
| YC2*25 | 106 | 135 | JTA135-15-2 | 4 | JTA135-20-2 | 4 | JTA135-25-2 | 3 | |
| JTB135-15-2 | JTB135-20-2 | JTB135-25-2 | |||||||
| YC2*35 | 132 | 170 | JTA170-15-2 | 4 | JTA170-20-2 | 5 | JTA170-25-2 | 4 | |
| JTB170-15-2 | JTB170-20-2 | JTB170-25-2 | |||||||
For more detailed specifications please feel free to contact with us
