Rechargeable Led Coal Miner Mining Safety Helmet Light

Rechargeable Led Coal Miner Mining Safety Helmet Light photo-1
Rechargeable Led Coal Miner Mining Safety Helmet Light photo-2

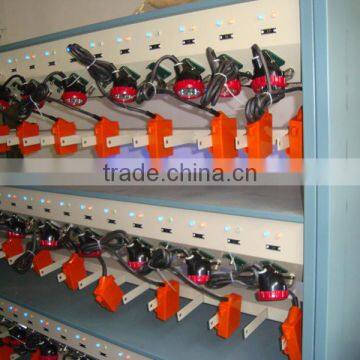

Rechargeable Led Coal Miner Mining Safety Helmet Light photo-3

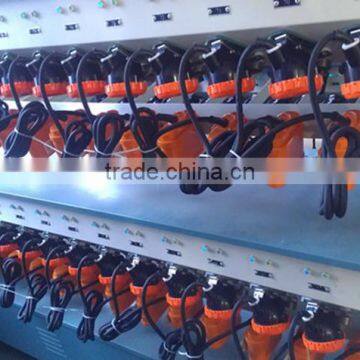

Rechargeable Led Coal Miner Mining Safety Helmet Light photo-4
US$ 22 - 22 MOQ: 100 Sets
Key Specifications
Get Latest Price
LED Light Source:
Cree
Place of Origin:
Shandong, China
Model Number:
KL5LM
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source Cree
Place of Origin Shandong, China
Model Number KL5LM
Usage Industrial
Power Source Rechargeable Battery
Battery Type Lithium Ion
Certification CE, GS
IP Rating IP65
Lamp Body Material Aluminum
Warranty(Year) 1

                                                 LED Miners Cap Lamp

LED safety cap lamp KL5LM(B) adopts high-power 3W LED as light source and li-ion battery as power supply,it is one environment-protection product.



LED safety cap lamp KL5LM(B) is one portable underground illuminated tool. It is suitable for coal mine,kinds of chemical mines,petroleum,electric power,railway,tunnel construction and exploration travel fields and so on.It is especially used for personal safety illumination under the special conditions such as inflammable and explosive environment and emergency illumination on flood-fighting and disaster-saving.



Adopting the international advanced high-power LED cold light source and li-ion battery,KL5LM(B) is one environment-protection mining lamp.Compared with the traditional mining lamp,this lamp has six prominent features as follows:



1) Safety.Whole-close design;the battery has over-charge,over-current and short-circuit protection devices;battery cell case is static-free and the product is explosion-proof.



2) Reliability.Adopt high-intensity case and optimized design,so the product can endure the strong external force.



3) Convenience.Small size,light weight, quick charge,free maintenance,and easy-taking.



4) High-Efficiency.High luminance,low power consumption,no memory effect,which can highly raise the productivity.



5) Environmental protection.As lithium ion battery has no corrosive liquid,the lamp can really realize maintenance-free.Meanwhile our company carries out recycle-system to the over-use battery,which makes the lamp green and environment-protective.



6) Versatility.Equipped with charge-conversion circuit,so it can be charged in the traditional mining lamps charging rack.



Product performance standards

GB7957-2003 General requirements for safety miner's lamp



Technical Data for  KL5M

No.

Item

Value

Unit

Note

1

Rated voltage

3.7



2

Rated Capacity

6.6

Ah



3

Lighting time

Principal

>13

hr



Auxiliary

>40

4

illumination

Start of lighting

11000-16000

Lx

1m away from the lamp

lighting for 11hours

>11000

5

LED

luminous flux(Main illuminant)

120

Lm



Current

Main illuminant

0.5

A



Sub illuminant

0.2



Voltage

3.3

V



6

BATERY

Capacity

6.6

AH



Amperage of charge

800

Ma

Intelligent charger

Battery Life

1200

Cycle time



Battery storage life

2

year







the type of our company's mining lamp

KL2LM  KL2.5LM  KL3LM  KL4LM KL4.5LM KL5LM KL6LM KL8LM KL10LM (lithium batteries)
