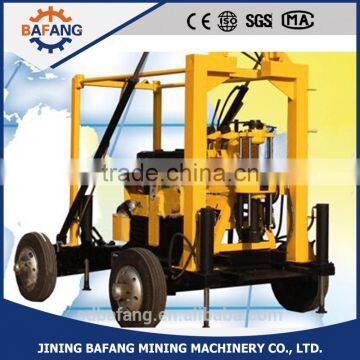

200m Rock Soil Drilling Machine / Trailer Rig / Predrilling Machine

Name: 200m Rock Soil Drilling Machine / Trailer Rig / Predrilling Machine
Brand: bafang
SKU: 140908930
Availability: InStock

US$ 100 - 1,000 MOQ: 1 Piece

Key Specifications

Condition:

New

Type:

Rotary Drilling Rig

Power Type:

Diesel

Jining Bafang Mining Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Rotary Drilling Rig

Power Type Diesel

Place of Origin Shandong, China

Brand Name bafang

Model Number xy200

Usage Water Well

Voltage 220V/380V

Power(W) 15KW

Dimension(L*W*H) 2700*950*1770mm

Weight 1150kg

Certification ISO9001

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

200m rock soil drilling machine / trailer rig / predrilling machine

Technical parameter
Drilling depth	200m
Max.hole dia	φ75-φ300mm
Drill pipe initiative	53/59*4200mm
Drilling hole dia	φ50,φ60mm
Drilling angle	90°~75°
Power(diesel engine)	15/2200kW/r/min
Structure weight/size	1150kg/27009501770
Vertical spindle
Vertical spindle speed	64,128,287,557r/min
Vertical spindle travel	450mm
Winch
Hoist single line lifting capacity	24kN
Single rope lift speed	0.12,0.22,0.49,0.95m/s
Roller diameter	φ140mm
Tightrope diameter	φ13mm
Wire rope capacity	35m
Drilling tower
Rated load	5t
Effective height	6m
Tower leg specifications	φ89mm
Mud pump
Model	BW160
Flow rate	160L/min
ure	1.3Mpa
Reciprocating frequency	165 times/min
Water inlet caliber	φ51mm*4.5m
Water to exit caliber	φ32mm*6m
