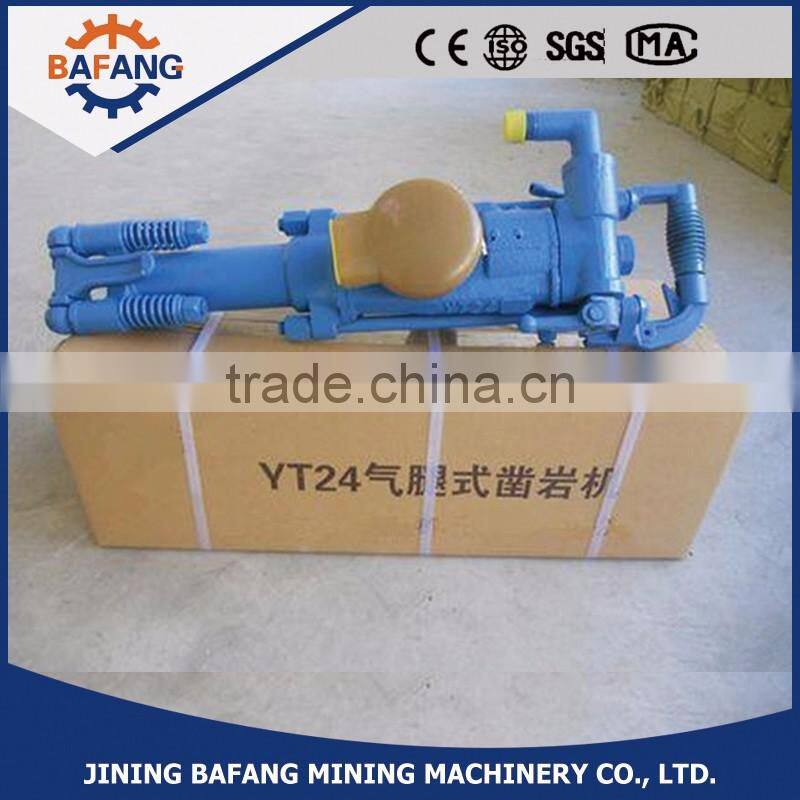

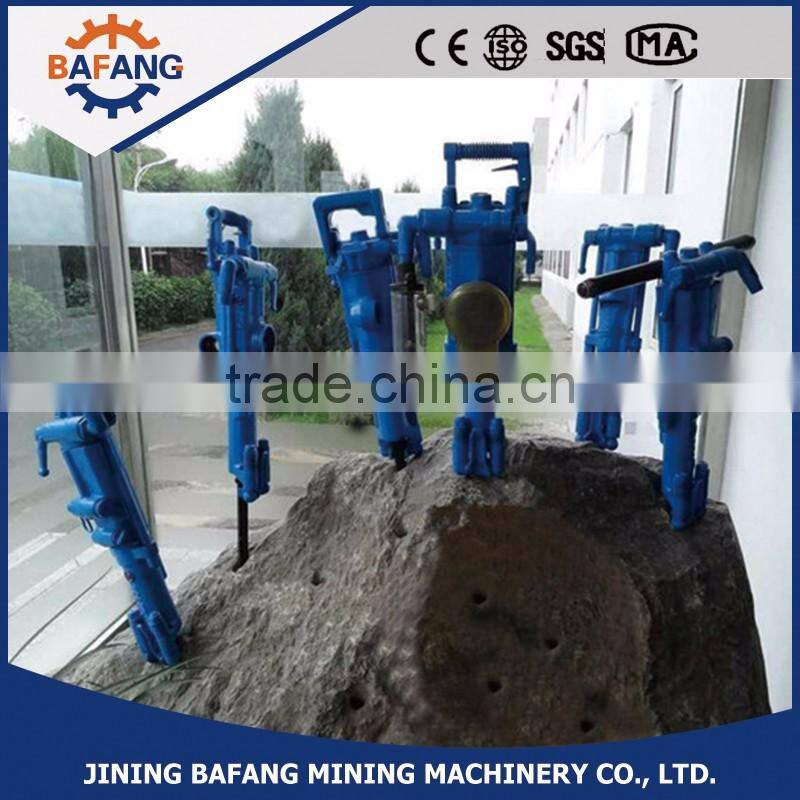

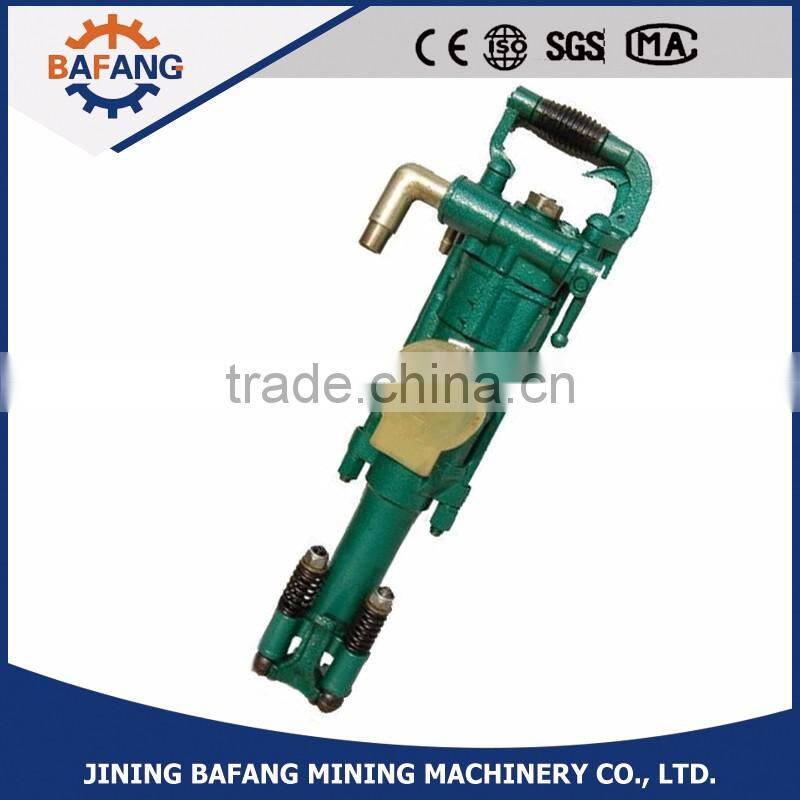

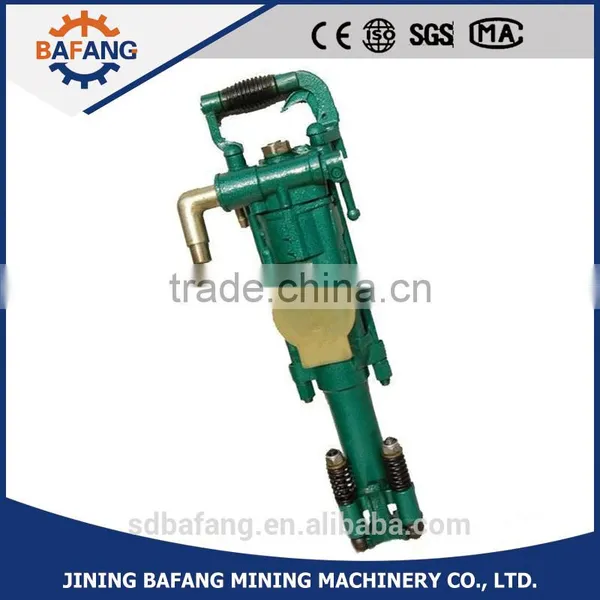

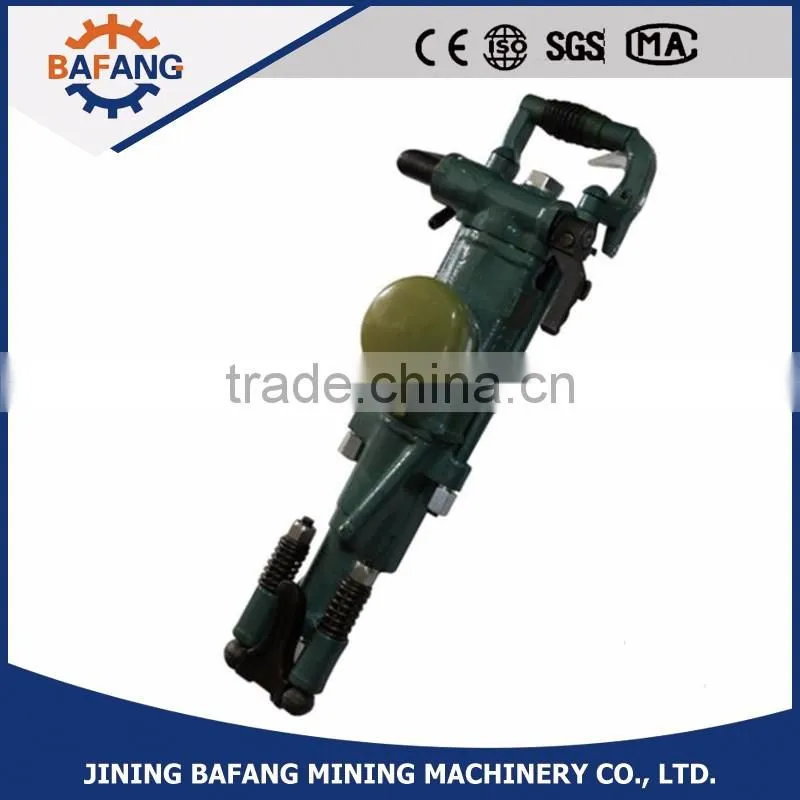

YT24 air leg rock drilling machine
Usage:

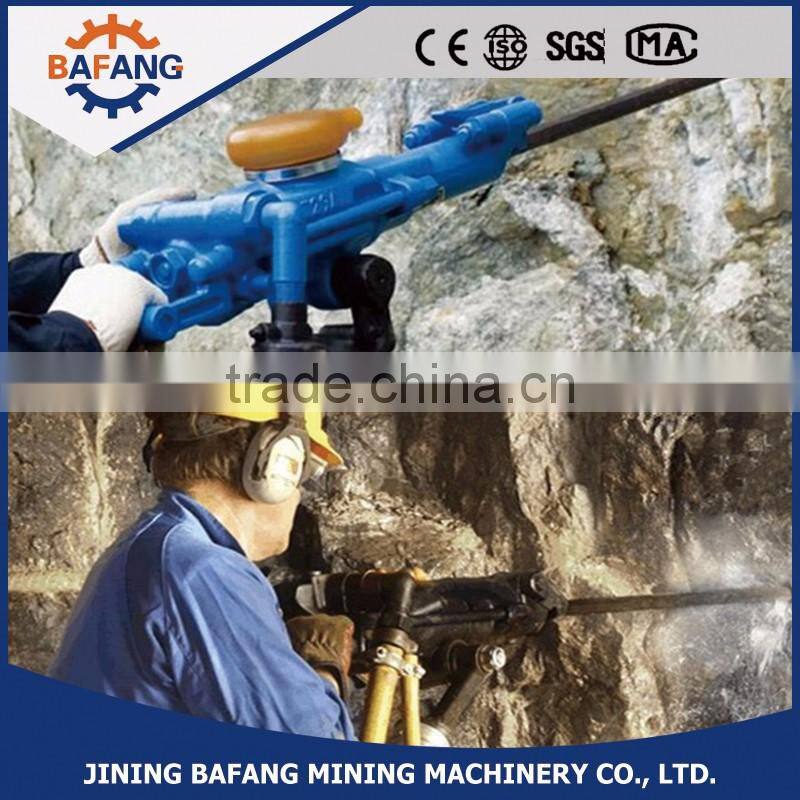

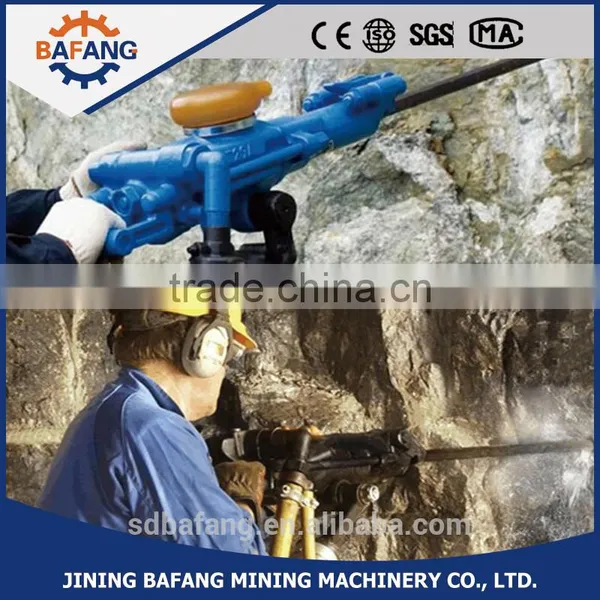

YT24 pneumatic leg rock drill is an effective rock drilling machinery. It is widely used to drill blast hole in the rock drivage and drilling work. It is important machinery in mining, railway, water conservancy construction. It can drill horizontal and sloping holes ( Max depth is 5m) on medium hard and had rock (f=8~18).
Introduce:
Pneumatic rock drill is a kind of high efficient drilling machinery. It is widely used in rock drivage and various blasting hole drilling in the drilling operation, is mine, railway, traffic, water conservancy construction regarding the project of the important tools.
Structure features: this machine adopts bowl with valve distribution form, reasonable structure, flexible. With light weight, high drilling speed, low gas consumption, small vibration, easy to operate, low failure rate and long life of parts, as well as good economic benefit.
Main parameter:
Technical Parameter | |
Type | YT24 |
Weight | 24 (Kg) |
Length | 678 (mm) |
Cylinder dia | φ70 (mm) |
Piston stroke | 70 (mm) |
Working pressure | 0.4~0.5 (Mpa) |
Impact energy | 44.7(J) |
Impact frequency | ≥31 (Hz) |
Air consumption | ≤66.7 (L/s) |
Working water pressure | 0.2~0.3 (Mpa) |
Air pipe inner dia | φ19 (mm) |
Water pipe inner dia | φ13(mm) |
Rock drill hole dia | φ34~φ42 (mm) |
Rock drill hole depth | 5 (m) |
Shank size | 22×108 (mm) |
