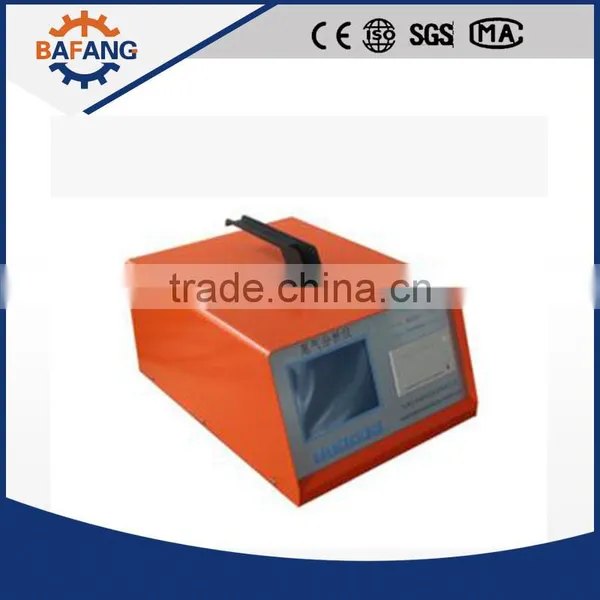

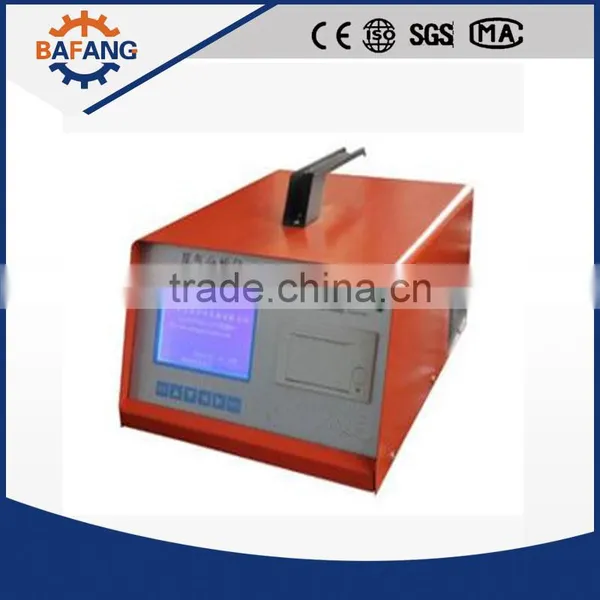

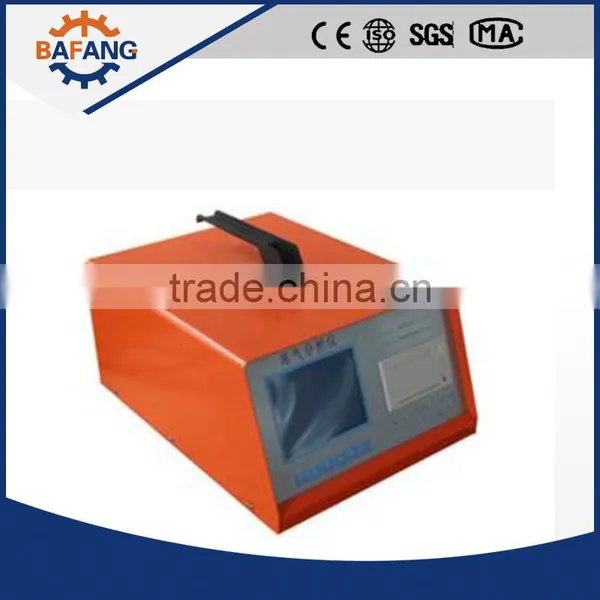

SV-5Q car emission gas analyzer Measurable with liquefied gas (LG), liquefied natural gas (LNG) and gasoline and other alternative fuel vehicles. Built-in printer
Main Function:
1. Used to measure the concentration of HC, CO, CO2, O2, NO in the Automobile Exhaust Gas.
2. Two kinds of test function: General and Two-speed idle
3. Full English Menu Operation
4. LCD (liquid crystal) screen displays
5. Auto-zeroing
6. Automatic calculation and show the air-fuel ratio λ
7. Equipped with RS232 digital serial communication interface to facilitate networking
8. Optional function: rotate speed and oil temperature measurement
9. Equipped with functions of Plate number and time display
10. Can store and search 500 groups of data, built-in printer
11. Measurable with liquefied gas (LG), liquefied natural gas (LNG) and gasoline and other alternative fuel vehicles.
Main Parameter
Measurement Range | CO | 0~10×10-2 (%)vol | ||
CO2 | 0~20×10-2 (%)vol | |||
HC | 0~10000×10-6 (ppm)vol | |||
O2 | 0~25×10-2 (%)vol | |||
NO | 0~40000×10-6 (ppm)vol | |||
Indication Error |
| Absolute error | Relative error | |
CO | ±0.06×10-2(%)vol | ±5% | ||
CO2 | ±0.5×10-2(%)vol | ±5% | ||
HC | ±12×10-6 vol | ±5% | ||
O2 | ±0.1×10-2(%)vol | ±5% | ||
NO | ±25×10-6 vol | ±4% | ||
Preheating Time | 10 min.(3 min. warm-up for fast measurement) | |||
Environmental condition | Temperature | -5~40 centigrade | ||
Humidity | no more than 85% | |||
Atmospheric pressure | 86~106kPa | |||
Power | AC 220V±10%; 50 Hz±1Hz | |||
Gross Weight | 9.8kg | |||
Packing Size | 420*320*250(mm) | |||
