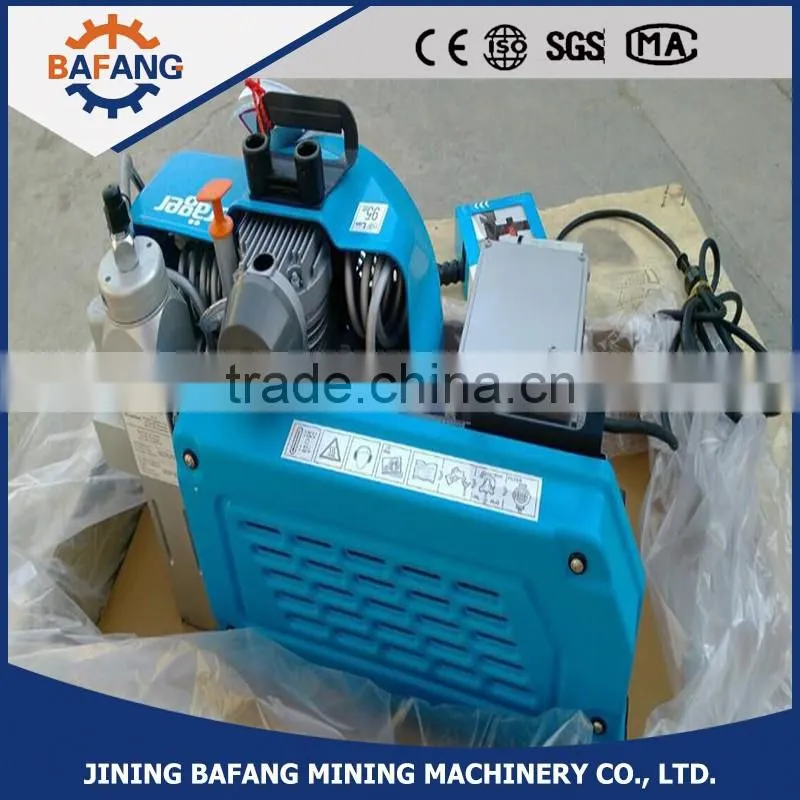

Portable diesel high pressure air compressor for scuba diving/paintball
- Qingdao
- D/P D/A Credit Card
You May Like
-
300bar High Pressure Portalble Scuba Breathing Air Compressor
-
Electric high pressure air compressor for sale
-
Concrete terrazzo tile grinding machine/ floor grinding machine
-
Chinese supply marble floor polishing machine/ concrete plishing machine/ grinding machine
-
Concrete surface grinding machine factory supply low price
-
Workshop road grinding machine/ Polishing machine
Product Details
| Condition | New | Type | Reciprocating | |
| Configuration | Portable | Power Source | AC Power | |
| Lubrication Style | Oil-free | Mute | No | |
| Place of Origin | Shandong, China | Brand Name | BAFANG | |
| Model Number | LX100A | Voltage | 220V/380 | |
| Dimension(L*W*H) | 68*37*40cm | Weight | 42kg | |
| Certification | ISO | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Portable diesel high pressure air compressor for scuba diving/paintball
It compresses free air to pressure 20/30Mpa, and the oil and contaminants in the compressed air are removed by filters and oil-moisture separators in the duration of compression, so the outlet air is pure and odorless. The outlet air accords to Chinese GB18435-2001 diving breathing air standard and EN12021 international breathing compressed air standard. It is safe and reliable breathing air supply machine.
Features
1.4-stage air cooled reciprocating piston air compressor.
2.oil splash lubrication.
3.stainless inter-cooler and after-cooler, specially treated alloy cylinder and pistons.
4.high-strength nylon cooling fan assembly, manual condensate drain system.
5.2 stage filters and manual stopping device.
6.anti-vibration pressure gauge.
7.Filter is made by seamless aluminum alloy, outer can endure 550bar pressure.
Technical parameter
Model | LX100A | LX100B | LX100C |
Delivery rate | 100L/min | 100L/min | 100L/min |
Filling speed | 6L/12min | 6L/15min | 6L/15min |
Pressure | 20Mpa | 20Mpa | 20Mpa |
Drive | 380V | 220V | Honda engine |
Rated speed | 2800rpm | 2300rpm | 2200rpm |
Power | 2.2kw | 2.2kw | 5.5HP |
Noise | <78dB | <78dB | <79dB |
Weight | 42kg | 42kg | 43kg |
Dimension | 68*37*40 | 68*37*40 | 74*37*40 |

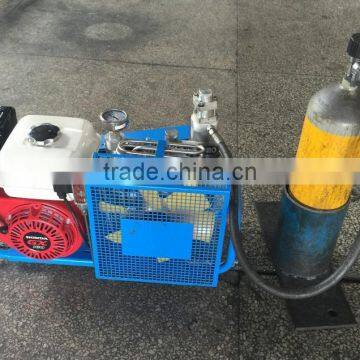

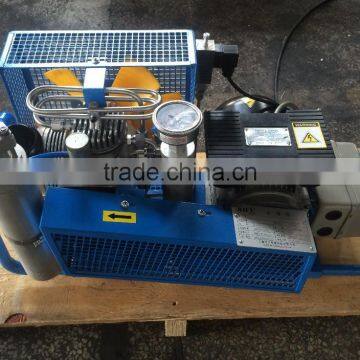

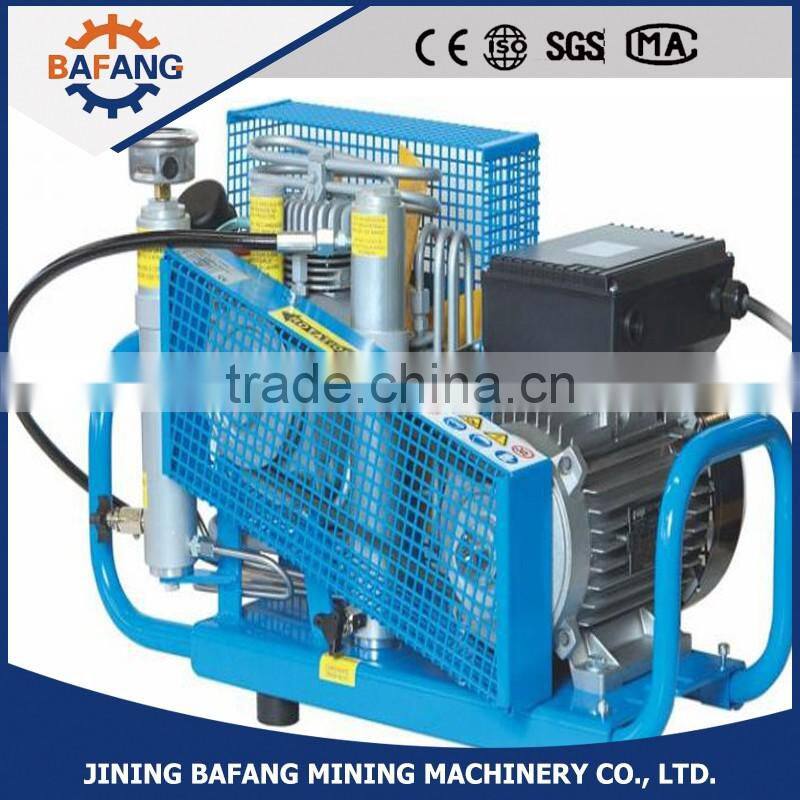

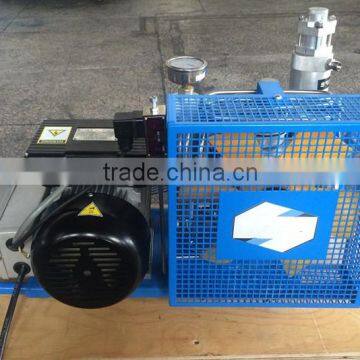

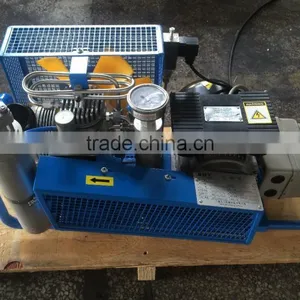

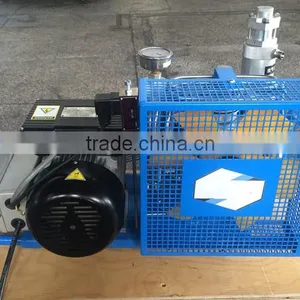

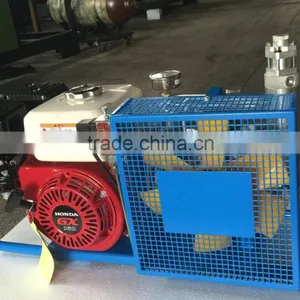

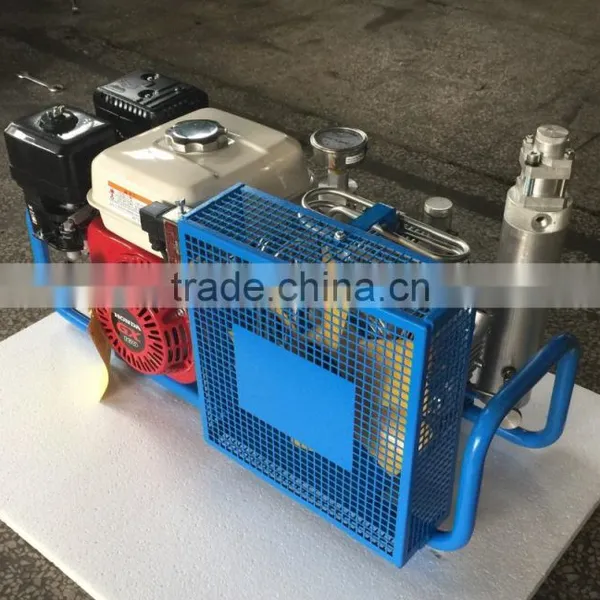

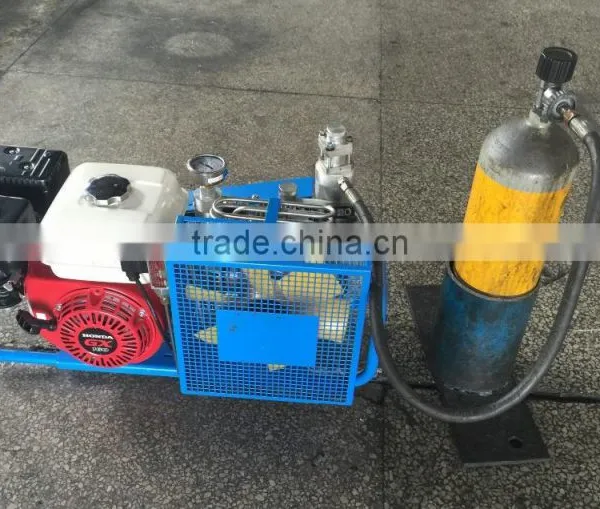

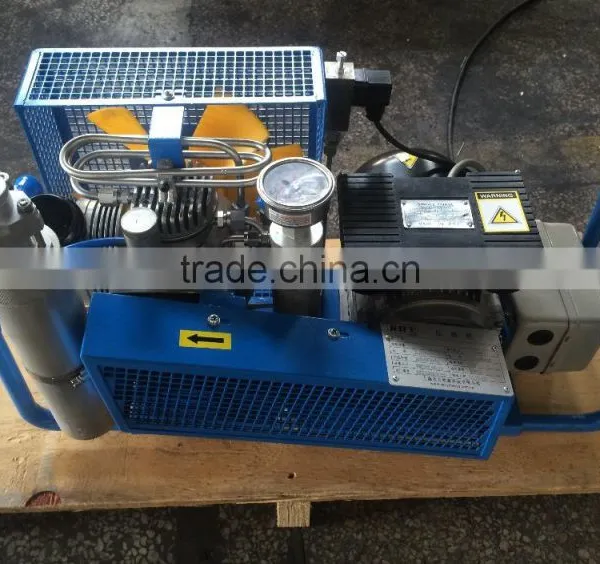

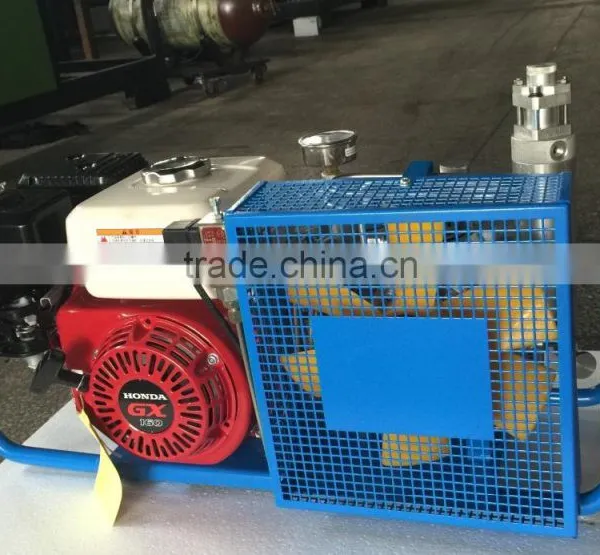

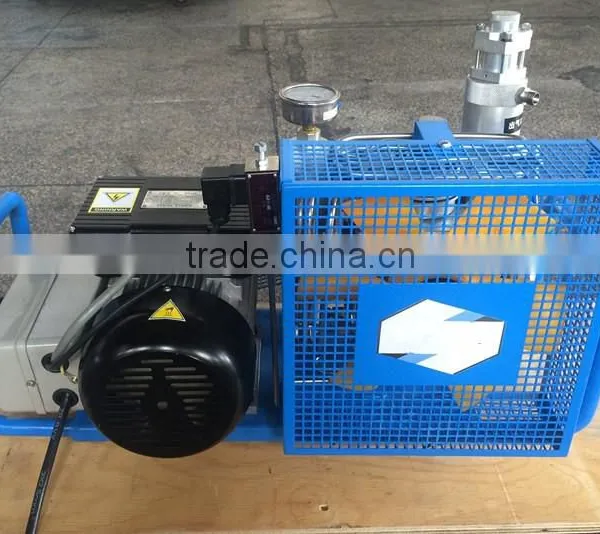

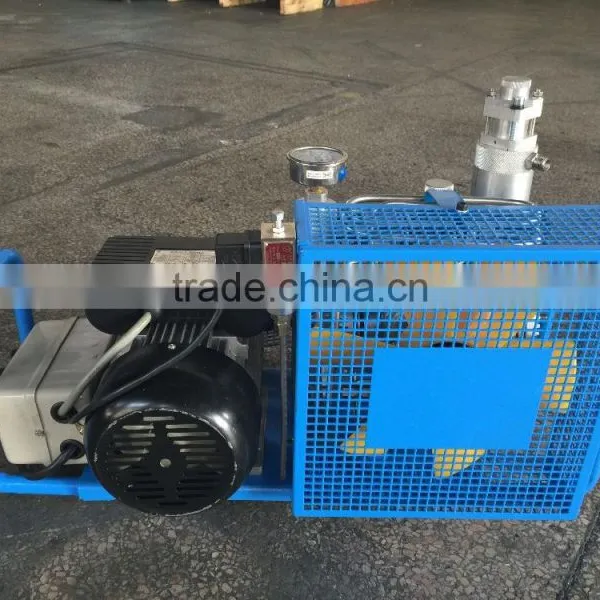

Product pictures
For more detailed specifications please feel free to contact with us
Jining Bafang Mining Machinery Co.,Ltd
Name:Mavis Zhang
Telphone:86-537-2164618 +13012657265
Skype:live:2050719885
QQ:3248433951
Trademanager:cn1510988628
E-mail:mavis(a)
