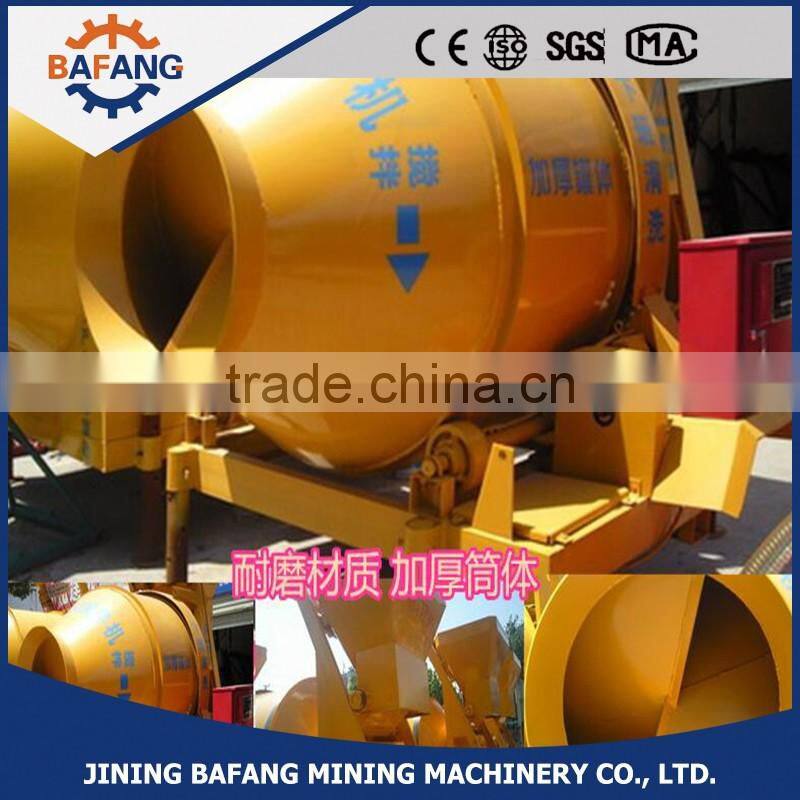

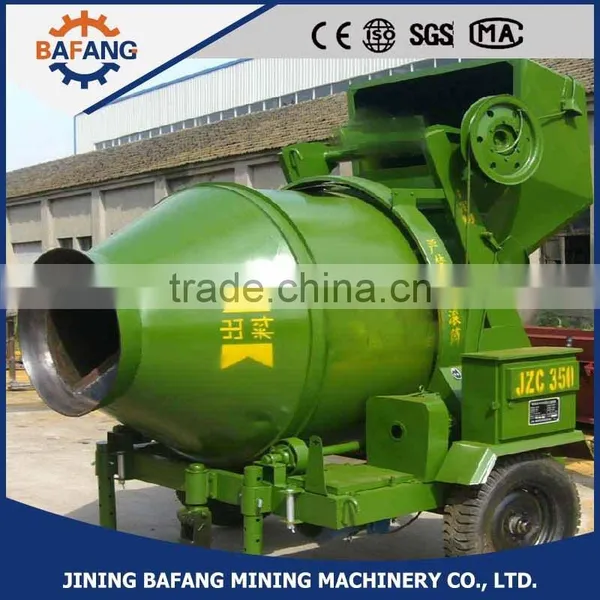

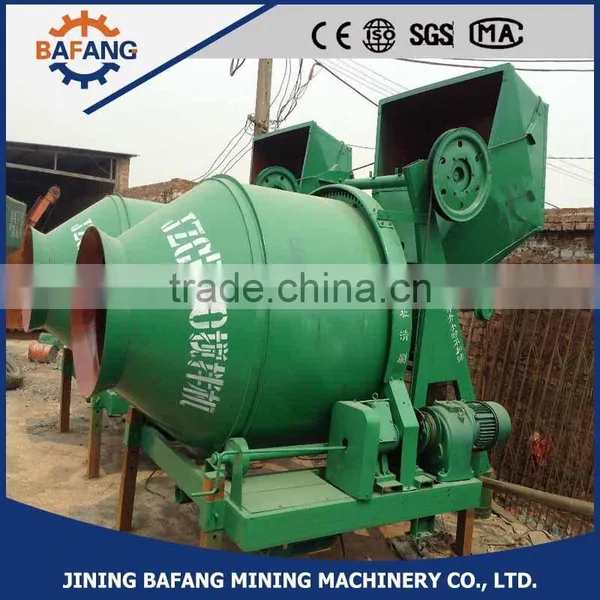

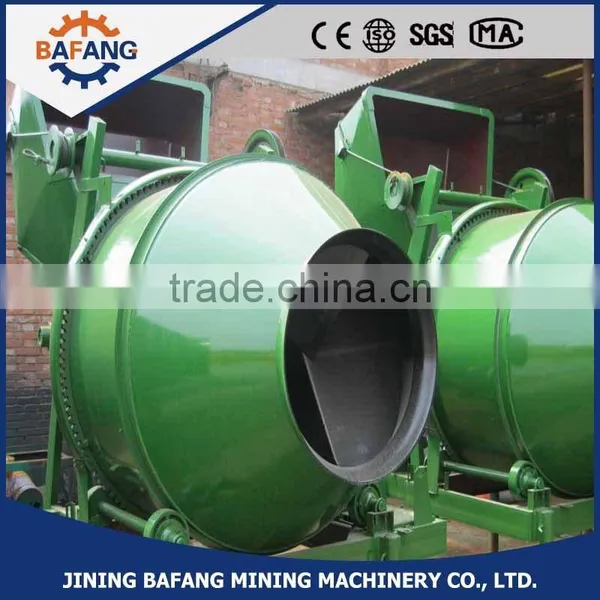

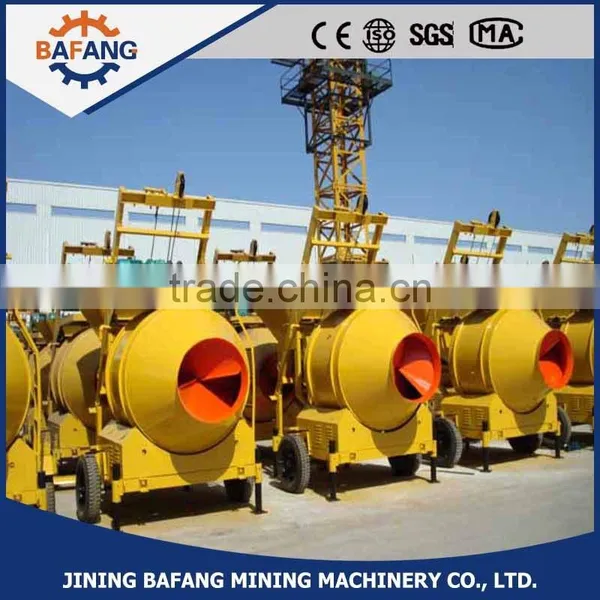

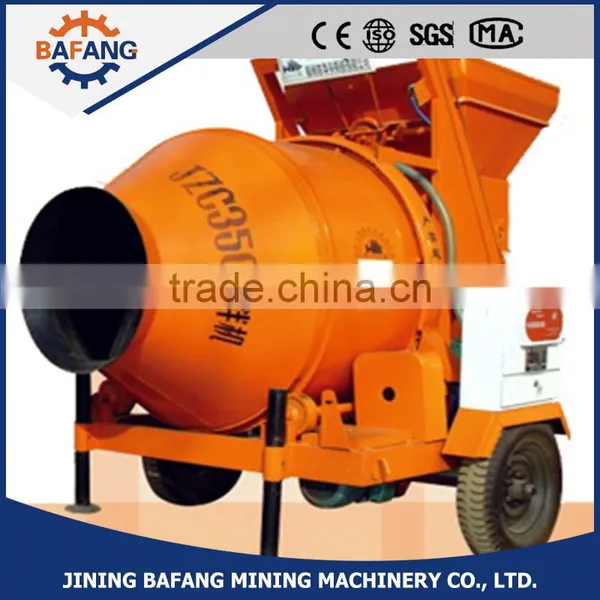

JZC Series Portable Concrete Mixer With all kinds of Capacity Specifications
JZC 350 Concrete Mixer with Hydraulic Tipping Hopper is mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete.
It is featured by diesel engine power, hydraulic tipping hopper, novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, It is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.
Technical parameter
Main Technical Parameter | |
Model | JZC350 |
Discharging Capacity | 350 L |
Loading Capacity | 560 L |
Productivity | 10-14 m3/h |
Max diameter of Aggregate | 60mm |
Rated Power of Diesel Engine | 5.5KW |
Power of Water Pump | 0.55KW |
Accuracy of Water Supply | Error≤2 Percent |
Max Trailing Speed | 20 km/h |
Speed of Mixing Drum | 14 RPM |
Dimension in Container (L×W×H) | 2600*2000*2300mm |
Weight | 1950 KGS |
For more detailed specifications please feel free to contact with us
