ROMER Portable Coordinate Measuring Machines

Specifications

Portable CMM, China unique design, quality competetive to international brand, competetive price

Application: automotive industry, aviation and maritime, machinery manufacturing, reverse engineering and other fields



Intelligent Multi-joint coordinate measuring machine (CMM) is a new technology-intensive, affordable coordinate measuring device, which uses full-revolute open chain structure, and completely abandon the traditional coordinate measuring machine platform and rails, making the product weight and volume drastically reduced, prices will be significantly lower at the end, ease of use and environmental requirements for the use of greatly improved, lightweight simple and inexpensive. And out of the laboratory coordinate measuring machine can enter the shop and on-site, is a revolutionary scientific and technological achievements measurement technique.



RoyalD is an economical and practical, cost-effective highlight measuring equipment, the main applications are:

- Aerospace, automotive, parts manufacturing, engineering machinery and precision measurement of the assembly process

- Dies, jigs, submit verification measurement

- New product development, first article inspection, periodic testing parts

- Industrial products, clay model, sample, reverse engineering works of art



 After you use the device to fully expand the measurement range, at any time convenient measurement; second measure is to save time, improve measurement efficiency; reduce duplication of equipment investment, improve equipment utilization, production cost savings



Technical Specifications:

- Temperature range: 10~ 40  °c

- Applies Humidity: <95% R.H;

- Power System: 100 ~ 240V, 50/60Hz, 0.5A;

 - Allow angular acceleration:> 105rad/s2

 - The recommended calibration cycle: 1 year;



 Accuracy of the test (in line with common international standard coordinate B89.4.22-2004):

 (1) single-point repeatability test method: The standard probe placed in the nest cone in the direction from multiple single-point data collected by the software to calculate the point to the standard deviation and the cone of each point (single point) average standard deviation of the center. This method is used to test and measurement equipment repeatability.

 (2) spatial precision length measurement methods: the measurement range, measured with a standard length of the test many times the value of the length of the standard device, the measurement results with the theoretical value of the standard deviation between the devices as the standard deviation. If 95% of the measurement results within the accuracy of the calibration, the standard deviation of ± 2σ confidence level meet, this method as a general quality measurement system accuracy criteria



 ROYAL is a real sense of the universal coordinate measuring machine (with the widely used industry measurement of Power INSPECT software), temperature, humidity, space is not demanding, high-precision, low demand, flexible and lightweight, simple operation, the factory workshop, assembly on-site measurements to complete the task a great choice.

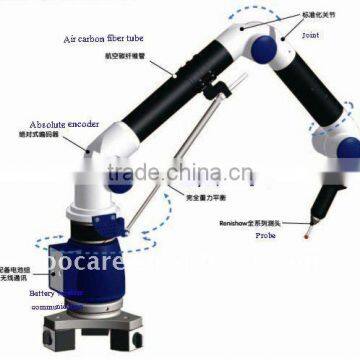

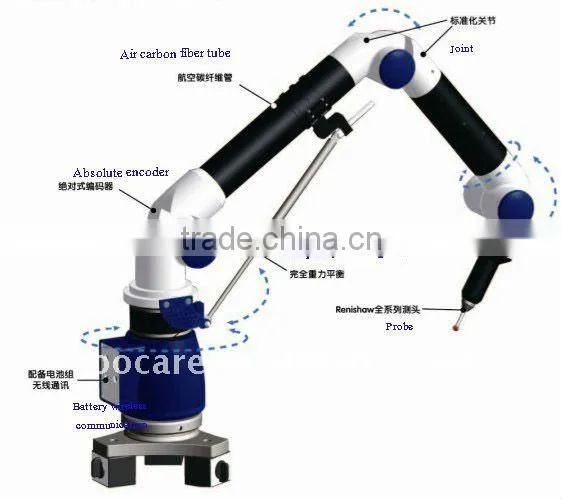

1. Using high-precision absolute encoder, without initialization, the boot can be measured

2. Therefore, endless rotary joints, the use of military quality slip ring

3. Wireless communication technology to facilitate the operator to place the computer in a more appropriate location

4. Temperature compensation technology, ROYAL unique database, in -20 - 45°c ambient temperature within the effective temperature compensation

5. Aviation carbon fiber arm tube body, affected by temperature is very small

6. Joints mold manufacturing standards, so that the work process is highly stable

7. Can be equipped with a battery module, the power situation in the absence of complete site survey, to avoid data loss caused by a sudden power failure

8. Complete gravity balance system, easy operation and convenient, and effectively improve the measurement accuracy



More than nine kinds of installation components, Renishaw probe the full range of options
