Product Introduction

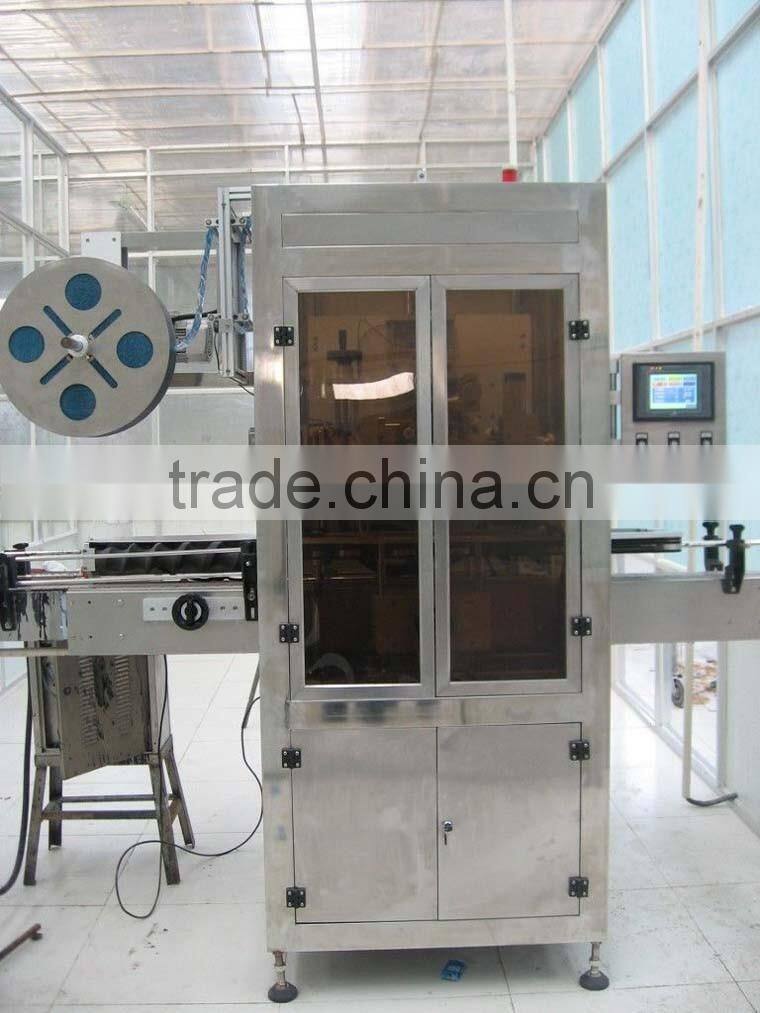

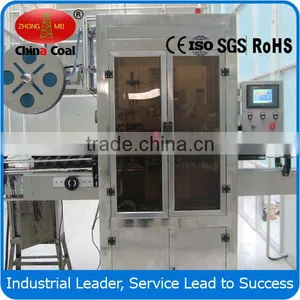

SPC-250B stainless steel Shrink Label Machine
Features
1. All-cover type stainless steel host machine: the whole machine is waterproof as well as rustless.
2. Adjustable cutter head: uniquely cyclotron cut-off, double sided cutting edge with a long service life.
3. Single positioning centre guide pillar: a more stable for label delivery.
4. Synchronous bottle divider: a more stable transmission for bottle.
5. Bottom set of label brush: a more precision for casting label.
6. Label-controlling electric-eye shelf: unique combination of tail and electric-eye to improve the precision for cutting off the membrane materials.
7. Push-button control cabinet: a more humanized operation.
8. Independent feeding material shelf: the position of the material shelf is optional at will.
Configuration Specification
It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; besides, it adopts the positioning module to ensure the casting label precise, rapid and stable.
Applicable Bottle Types
Various kinds of bottle types, for example: round bottle, square bottle, flat bottle, curved bottle and cup-shaped, etc.
Main Parameter
Input Power | 3.0KW |
Input Voltage | 3, 380/220VAC |
Production Efficiency | 250 bottle/min |
Size of Host Machine | 2100L*850W*2000H |
Applicable Diameter of Bottle Body | 28 mm-125mm |
Applicable Length of Label | 30 mm~250mm |
Applicable Thickness of Label | 0.03 mm~0.13 mm |
Applicable Internal Diameter of Paper Tube | 5″~10″adjust it at will |

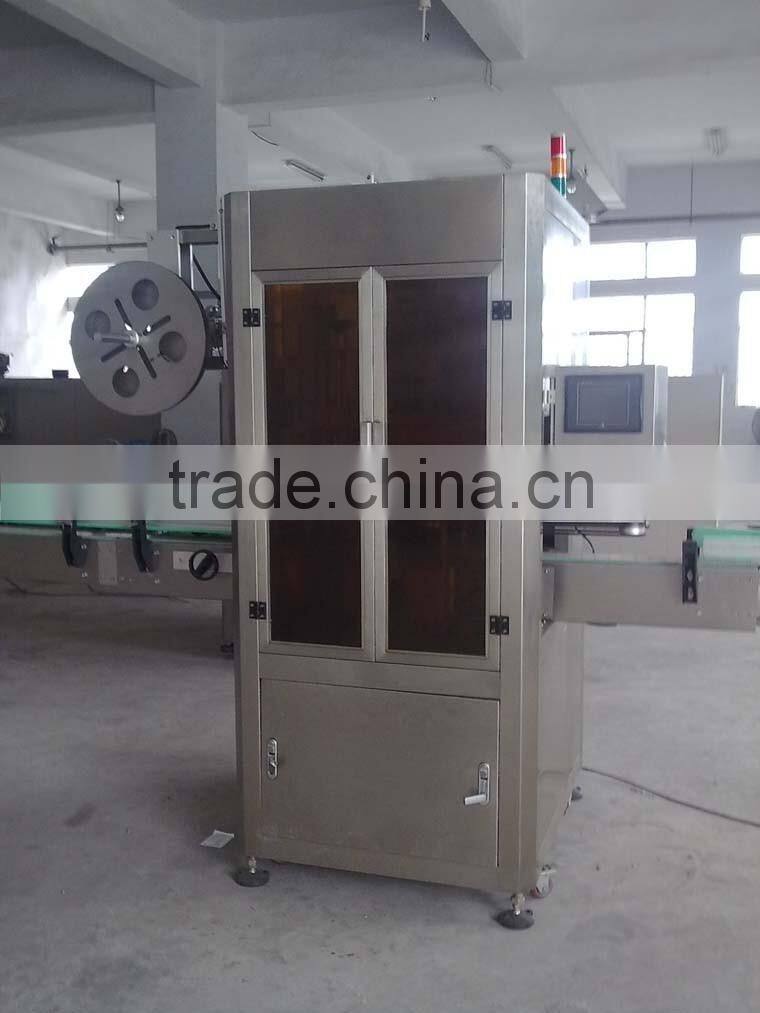

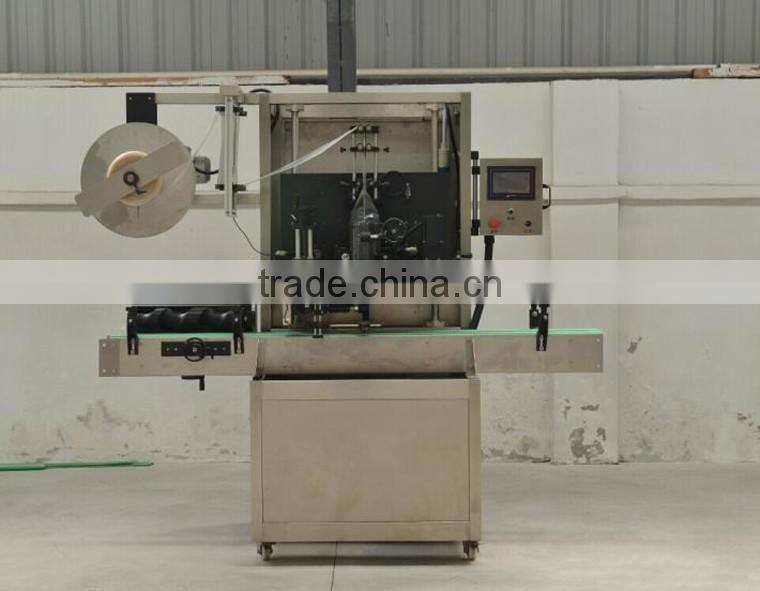

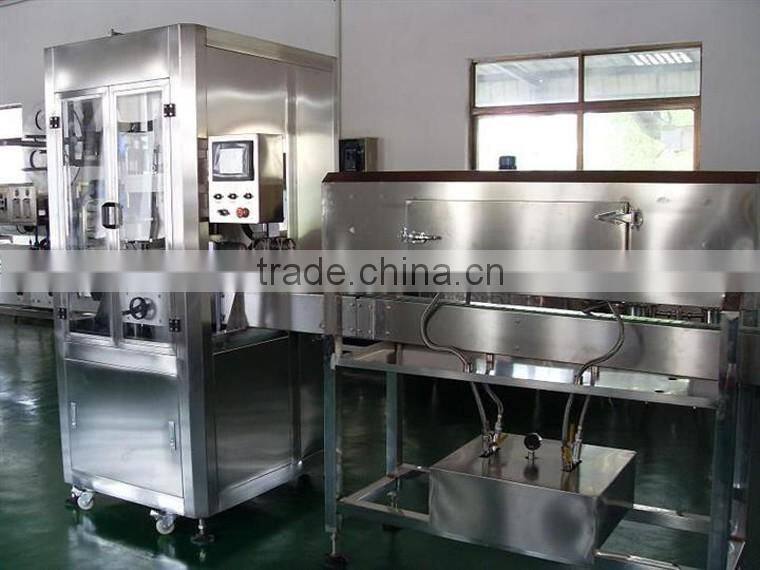

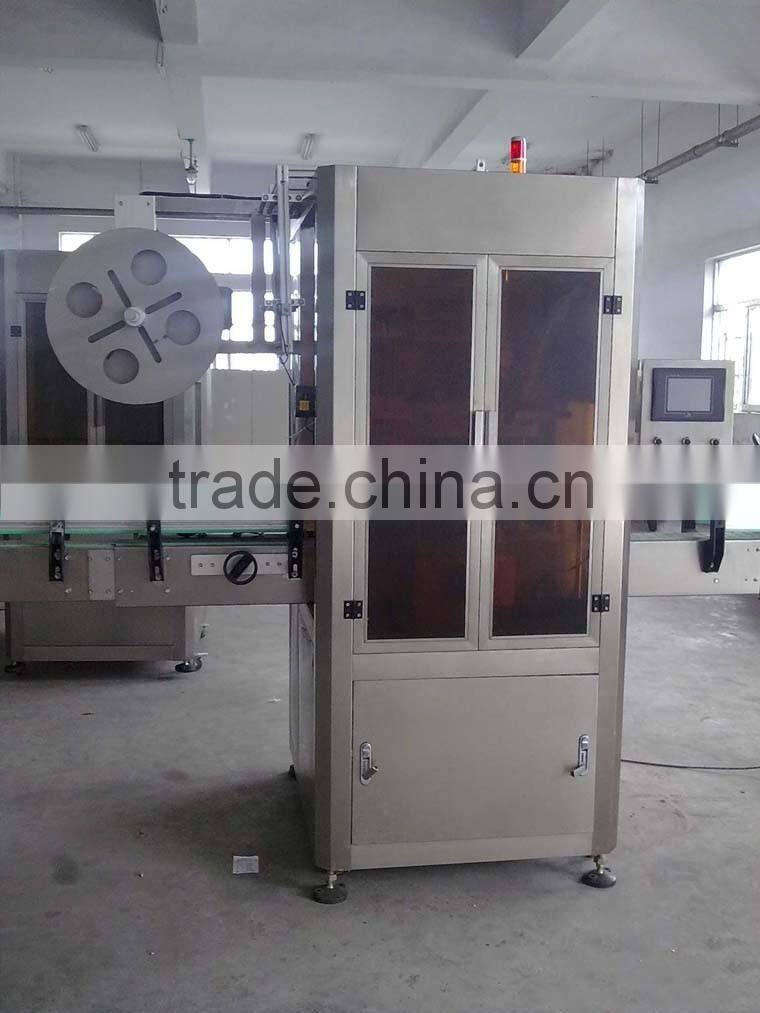

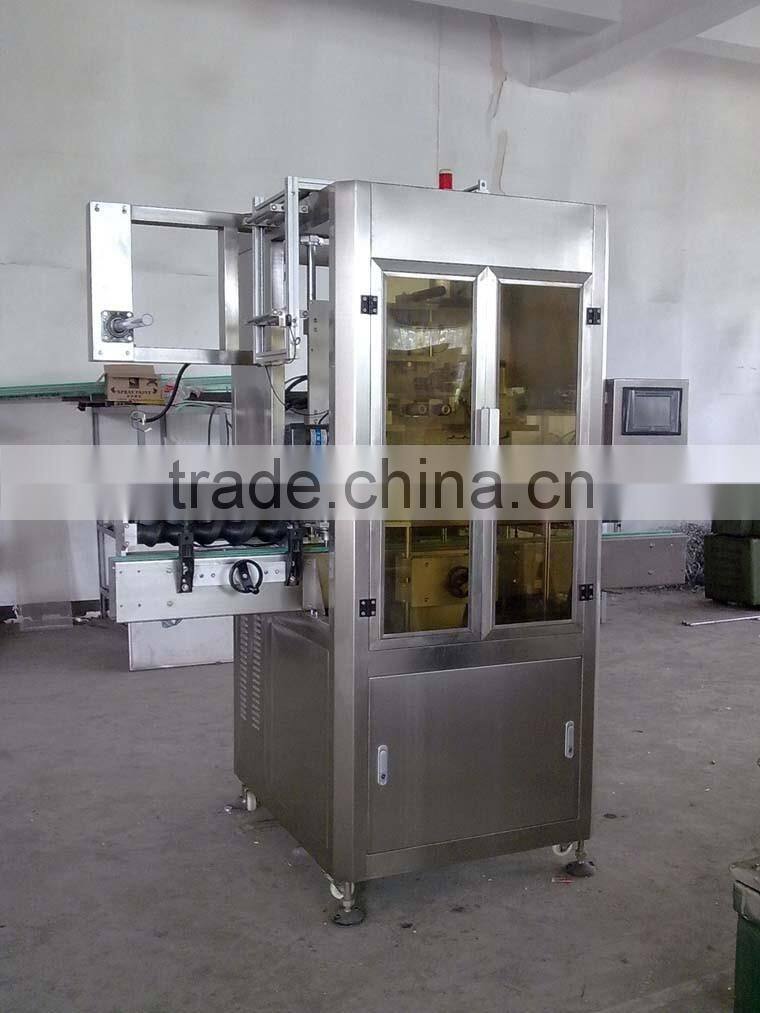

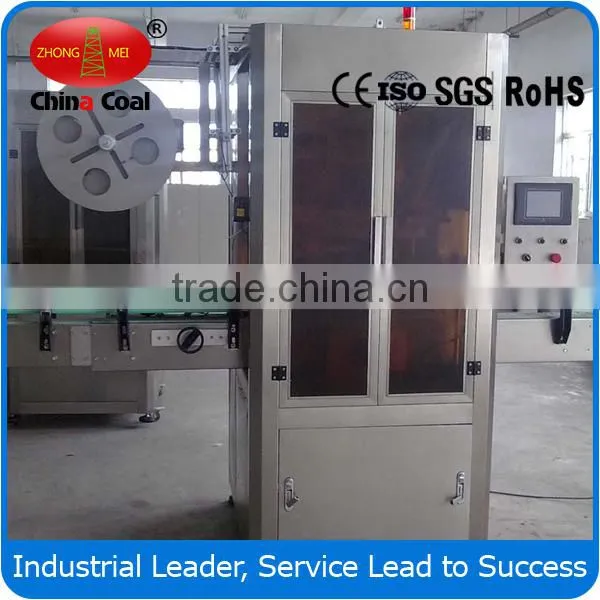

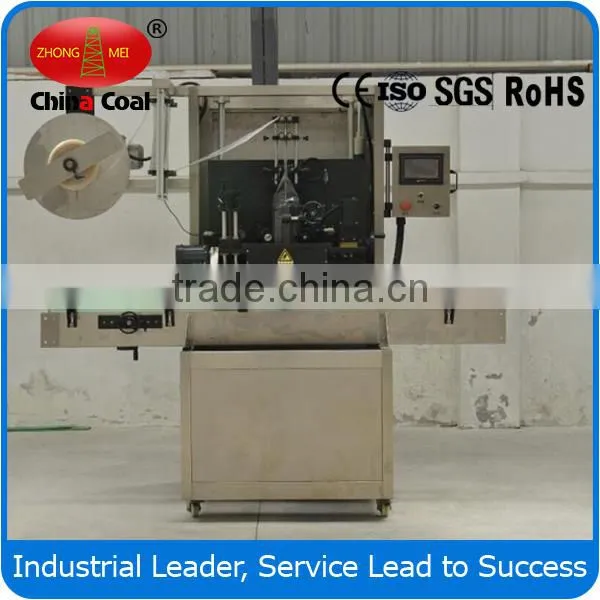

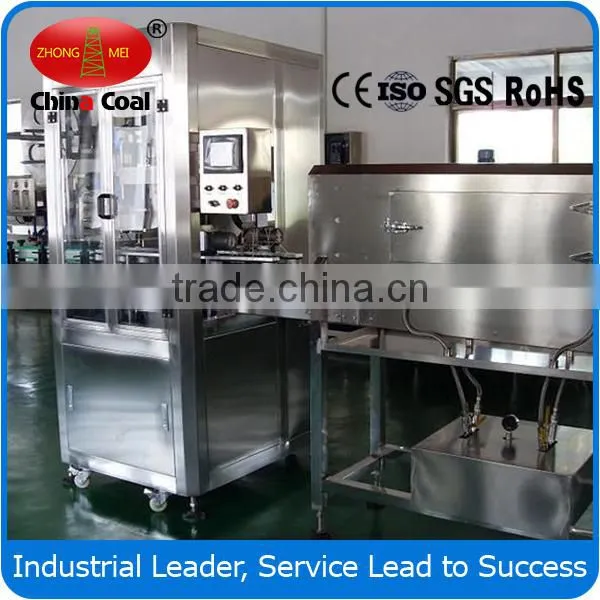

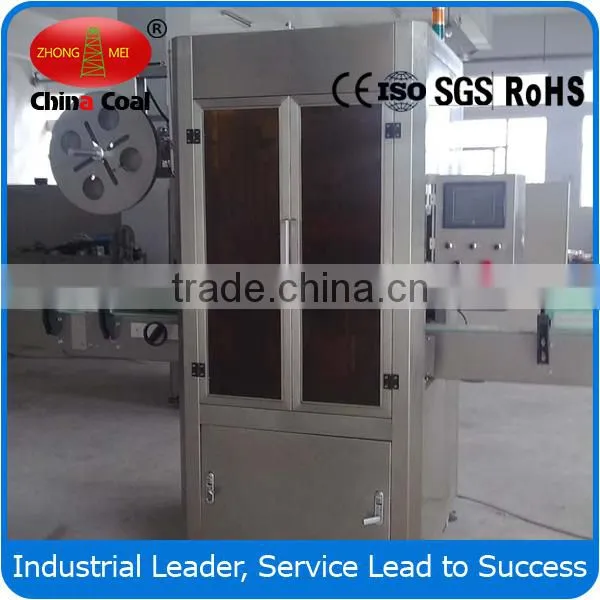

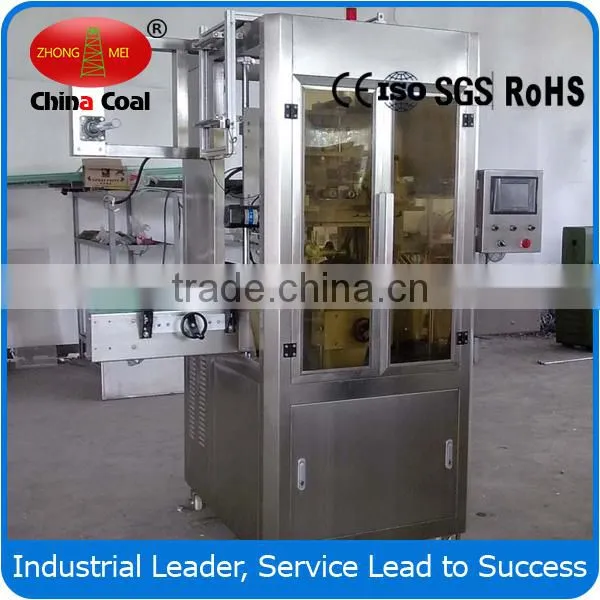

Figure Photos
About Us
Shandong China Coal New Energy Import&Export Branch is a big import and export enterprise founded in 2013. Since established, thousands of our products have been exported to Australia, Russia, Colombia, Ukraine, Georgia, the United states, Southeast Asia and other more than 130 countries and regions.We always adhere to the development philosophy of business:"credibility is life, the quality strives for survival", which over the years has been well received.
Customers Visit

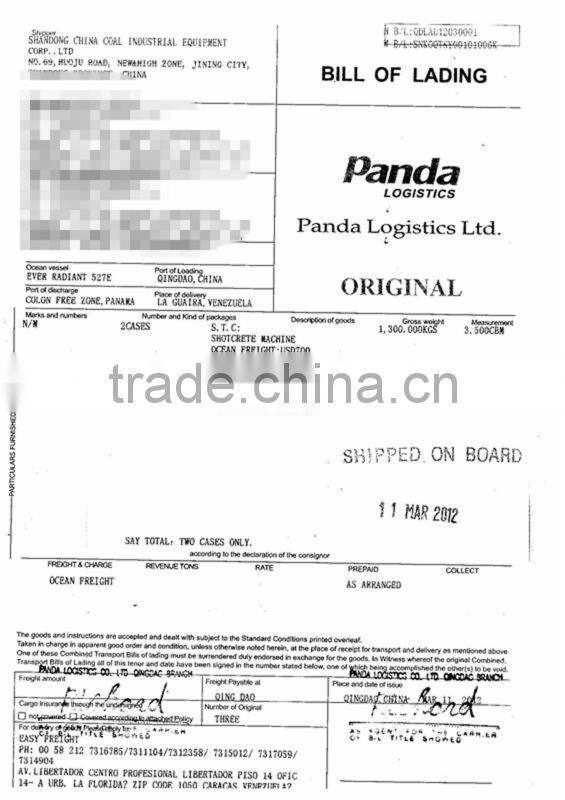

B/L of The History Trading
