Product Introduction
2015hot sale SSLM-250 Sleeve Shrink Labeling Machine
When the conveyor belt is at the sleeve label machine, its driving force is controlled by the sleeve machine.
If the bottles shape and size are different, center pole and screw arbor should be changed.
. Standard mechanism configuration:
1, All-covered and stainless steel cover and aluminum host: Make the operation safer and the machine is water-proof and doesn't rust.
2, Adjustable cutter head: Originally whirly cut-off, double-faced blade, longer to use.
3, Centre pole: Easy to change and stable framework, sending labeling more stable and durable.
4, Screw arbor: Bottle conveying not easy to shake
5, Synchro-brushing group: The accuracy is higher
6, Label controlling electrical eyes: The original empennage combines with the eyes, improving the accuracy of coating materials cutting.
7, Man-machine LCD: More humanization in operation
8, The positioning system: Special positioning belt, driving force of sending more actual
Main Parameter
Model: |
SSLM-250 |
Dimension: |
2100L*1150W*2000H (mm) |
Weight: |
About 350KG |
Scope Of Sleeve-allowing Diameter: |
28-125(mm) |
Height Of Bottle: |
50-320(mm) |
Applicable Shape Of Bottle: |
Round, Square Etc |
Length Of Label: |
30~250(mm) |
Thickness Of Labe: |
0.035~0.13mm |
|
In Radius Of Paper Tube: |
From 3``to 5 Inches |
Speed: |
The Normal Speed 0-250bottles Per Minute |
Voltage: |
AC3 380V/220V |
Power: |
3Kw |

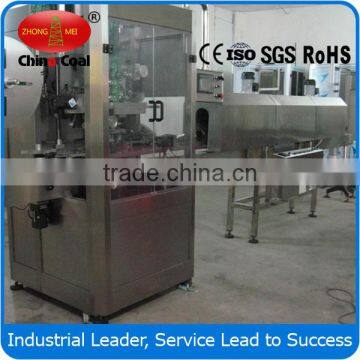

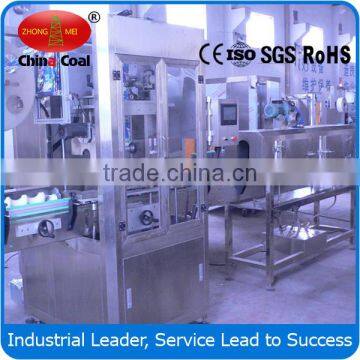

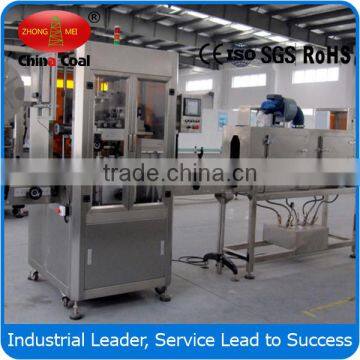

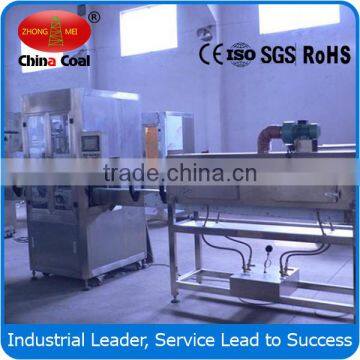

Figure Photos
