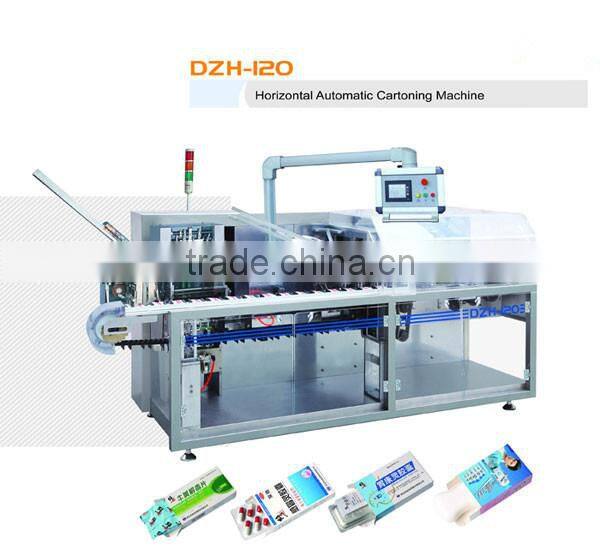

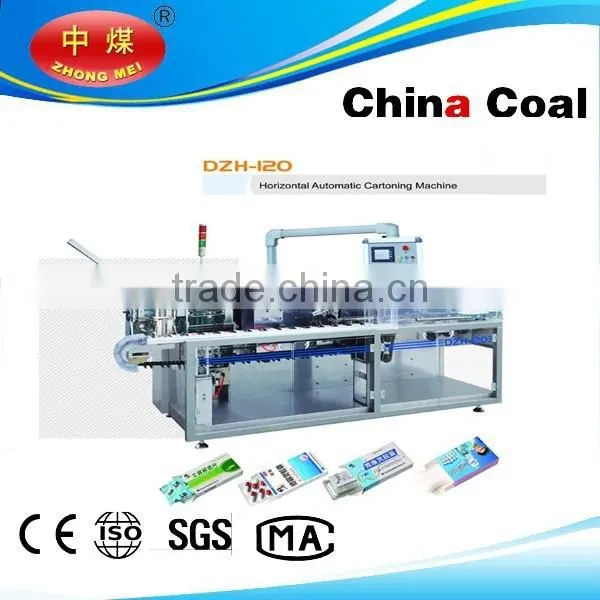

Help CenterPharmaceutical Horizontal Automatic Carton Packing Machine DZH-120 for Sale
Related Products
-
GK26-1A Single Thread Portable Bag CloserUS$ 55 - 150MOQ: 1 Set -
WL400 Rebar TierUS$ 1 - 500MOQ: 1 Set
-
TPK-2600W Pneumatic Handheld Corrugated Board Stripper for SaleNegotiableMOQ: 1 Piece
-
TPK-2600W Pneumatic Handheld Cardboard Carton Waste Stripper for SaleNegotiableMOQ: 1 Piece
-
TPK-2600W Pneumatic Control Handheld Cardboard Carton Waste Stripper for SaleNegotiableMOQ: 1 Piece
Specifications
1. suitable for blister package product, adjust automatic feeding structure conveniently .Product Introduction
This equipment is new model developping base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
This machine is suitable for blister package product, adjust automatic feeding structure conveniently, setup quantity of blisters on touch screen randomly. On line product feeding and detecting, leaflet fold(1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or prod cut and finished product out.
Feature :
1,International famous brand of electrical component such as PLC touch screen, frequency inverters, etc;
2, Adopt human-machine interface;
3,Automatically displaying device for malfunction, speed and finished products counting;
4,Automatic detection and rejection device for lacking of blishters or leaflet.
5,Stable performance ,operation is easy
Main Parameter
PROJECT |
PARAMETER |
|
Encasing speed |
30-120 case/min |
|
Box |
Quality requirement |
250-350g/m*m |
Dimension range (L× W× H) |
(55-180)mm× (30-85)mm× (15-50)mm |
|
Leaflet |
Quality requirement |
50-65g/m² |
Unfolded leaflet specification L× W |
80-300mm× 70-210)mm |
|
Folded leafilet specification(1-4)*(L× W) |
(70-210)mm× (20-40)mm |
|
Compressed air |
Working pressure |
0.5-0.7mpa |
Air consumption |
120-160L/min |
|
Power supply |
220V 50HZ |
|
Motor power |
1.5kw |
|
Machine dimension(L× W× H) |
3200mm× 1200mm× 1900mm |
|
Machine weight |
1200kg |
|
Figure Photos
About Us
Shandong China Coal Industrial & Mining Supplies Group Co.,ltd is a big joint stock enterprise founded in the early 1980s,registered capital is 138million yuan. The group total has 1100 employees,3 wholly owned subsidiaries and 18 professional branches.Hundreds of our products are exportedto Australia,Russia, Colombia,
Ukraine,Georgia, the United states,Southeast Asia and so on more than 60 countries and regions.
Customers Visit

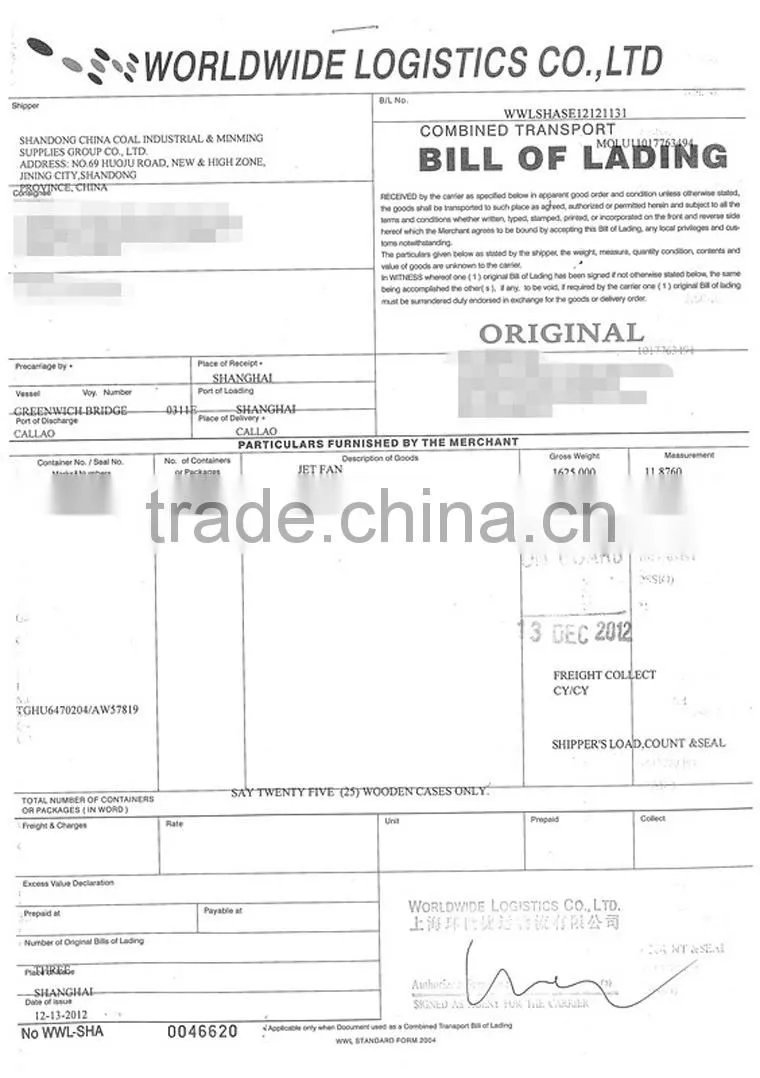

B/L of The History Trading
