CO-2E prewound bobbin winder and dental floss winder
- 100 Set / Sets per Month
- NINGBO
Product Details
Condition: | New | Application: | floss, embroidery and so on | Automatic Grade: | Semi-Automatic |
Production Capacity: | 1400 roll/minute | Place of Origin: | Zhejiang, China | Brand Name: | CREDIT OCEAN |
Model Number: | CO-2E | Voltage: | 440V/380V/220V | Power(W): | 60HZ/50HZ 180KW |
Dimension(L*W*H): | 2.08*0.7*1.15m | Weight: | NW 420kg GW 550 kg | Certification: | ce |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Applications:
1 This machine is semi-automatic, high efficiency and save place
2 New generation electronic counter auto measuring length or circle was optinized and accuracy
3 With automatic memory function when the machine stopped by power failure
4With silicone-oiling device and small tank to lube the thread option
5.With electronic tension adjusting device, precise and stable
6 With automatic memory function when the machine stopped by power outage
7With cerated device option
8 No maintenace no noise with smooth working,easy operation and maintenance
9 CE approval
Specification:
No. of spindle | 6 spindles |
Bobbins per spindle | 4 bobbins per spindle |
Motor | 0.18w 220v/380v/440v 50Hz/60Hz |
N.Weight | 420 KG |
G.Weight | 550KG |
Machines volume | 2.25×0.70×115M(L×W×H) |
Measurement | 2.35×0.80×125M(L×W×H) |
Yarn application | 20/2 30/2 40/2 50/2 60/2 75D/2 150D/2 and other special yarn |
Productivity | It can produce 24 bobbins of 130 meters within one minute |

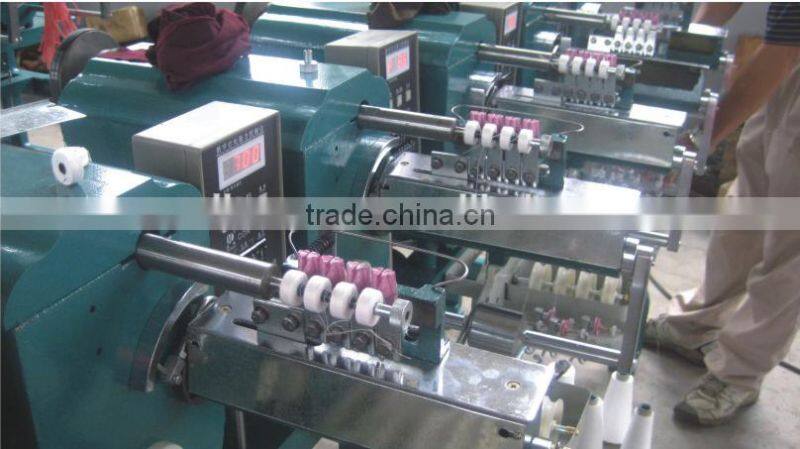

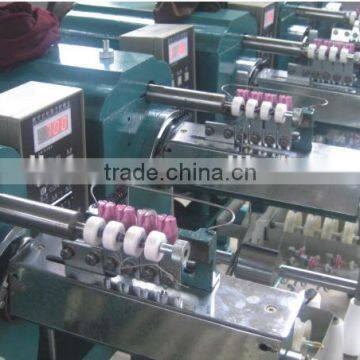

CO-2E pre wound bobbin winders are specially designed to produce small bobbins for embroidery machines.
It is applicable for different counts of yarn, such as 40/2,60/2 ,75/2 of cotton thread, polyester yarn , high stretch yarn and mercerized yarn .
It is equipped with length counter and tension force controller device with good features of high reliability, low noise , easy-operation and nice pattern of bobbins .
It is the advisable choice for most large & medium garments factory , embroidery factory and thread factory.
