Bobbin Winder CL-2E & Thread Winding Machine

Ningbo Jiangdong Credit Ocean Machinery & Electron Co., Ltd.

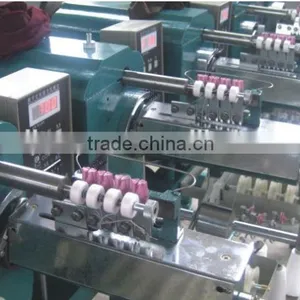

Bobbin Winder CL-2E & Thread Winding Machine thumbnail-1
Bobbin Winder CL-2E & Thread Winding Machine thumbnail-2

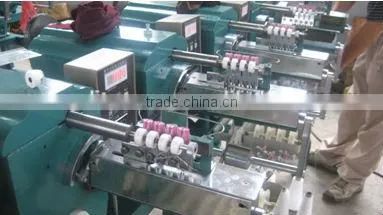

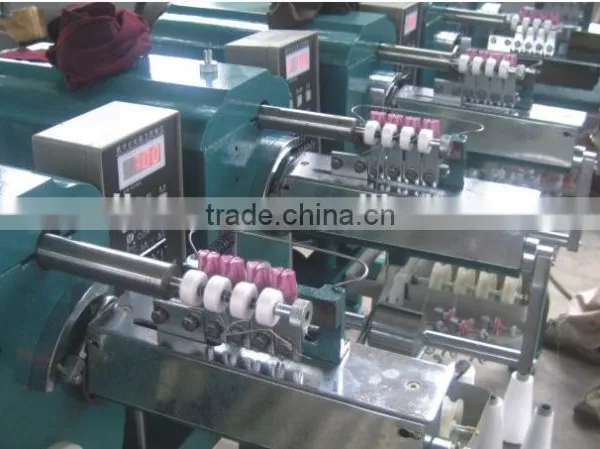

Bobbin Winder CL-2E & Thread Winding Machine photo-1
Bobbin Winder CL-2E & Thread Winding Machine photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
floss, embroidery and so on
Automatic Grade:
Semi-Automatic
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application floss, embroidery and so on
Automatic Grade Semi-Automatic
Production Capacity 1400 roll/minute
Place of Origin Zhejiang, China
Brand Name CREDIT OCEAN
Model Number CO
Voltage 440V/380V/220V
Power(W) 60HZ/50HZ 180KW
Dimension(L*W*H) 2.08*0.7*1.15m
Weight NW 420kg GW 550 kg
Certification ce
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Applications:

1 This machine is semi-automatic, high efficiency and save place

2 New generation electronic counter auto measuring length or circle was optinized and accuracy

3 With automatic memory function when the machine stopped by power failure

4With silicone-oiling device and small tank to lube the thread option

5.With electronic tension adjusting device, precise and stable

6 With automatic memory function when the machine stopped by power outage

7With cerated device option

8 No maintenace no noise with smooth working,easy operation and maintenance

9 CE approval



Specification:

1 Spindles: 6

2 Bobbins: 4 bobbins each spindle

3 Drive:  Individual Motor For Each Spindle

4 Motor: 1400 roll/minute, 440V/380V/220V  60HZ/50HZ  180KW

5 Production: each spindle 130m /minute

6 Winding Of yarn Like: different kind of thread and yarn

7 Measurement: 2.08*0.7*1.15m

8 Weight: NW 420kg  GW 550 kg

description:

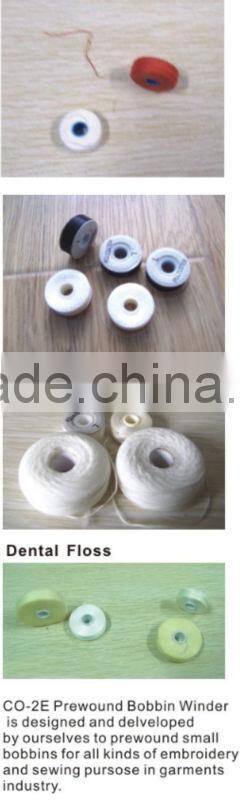

CO-2E pre wound bobbin winders are specially designed to produce small bobbins for embroiderymachines.

It is applicable for different counts of yarn, such as 40/2,60/2 ,75/2 of cotton thread, polyester yarn , high stretch yarn and mercerized yarn .

It is equipped with length counter and tension force controller device with good features of high reliability, low noise , easy-operation and nice pattern of bobbins .

It is the advisable choice for most large & medium garments factory , embroidery factory and thread factory.

 No. of spindle

 6 spindles

 Bobbins per spindle

 4 bobbins per spindle

 Motor

 0.18w   220v/380v/440v   50Hz/60Hz

 N.Weight

 420 KG

 G.Weight

 550KG

 Machines volume

 2.25×0.70×115M(L×W×H)

 Measurement

 2.35×0.80×125M(L×W×H)

 Yarn application

 20/2 30/2 40/2 50/2 60/2 75D/2 150D/2 and other special yarn

 Productivity

 It can produce 24 bobbins of 130 meters within one minute



 bobbin winder CL-2E & thread winding machinebobbin winder CL-2E & thread winding machinebobbin winder CL-2E & thread winding machine
