Yarn Covering Machine

Specifications

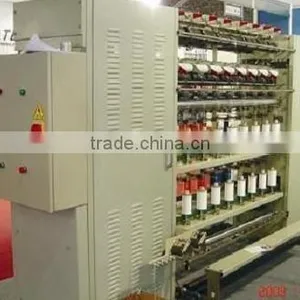

CO- 256 Covering Machine
It is used spandex, elastic yarn, metallic yarn, as covered yarns; artificial synthetic fiber, cotton fiber, Dacron, silk, yarns as the covering yarn, producing various single and double covering yarns. Especially suitable for covering 2012D, 2030D, 2070D counts silk.
Specifications:
1) Production head: 256 in single covering; 128 in double covering.
2) Spindle number: 32 spindles X 8 sections
3) Spindle pitch: 200mm
4) Mechanical spindle speed: 16,000 - 23,000rpm
5) Range of max. stretching times: 1.5- 6.0
6) Range of twist number: 150 - 3,300T/m
7) Take-up forming mode: mechanical forming
8) Twist direction: S or Z
9) Size of covering aluminum bobbin (external dia. x internal dia. x L):
    bobbin: φ68 x φ30 x 140mm, φ76 x φ30 x 140mm, φ84 x φ30 x 140mm
   b) Cone type spindle bobbin
10) Capacity of covering fiber: ≤1,000g
11) Take-up forming length: 160mm
12) Total power:  7.5+11kw
13) spindle belt length: 31200mm
