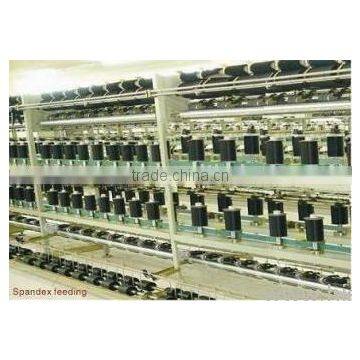

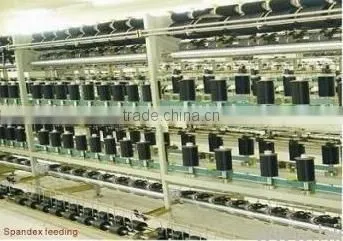

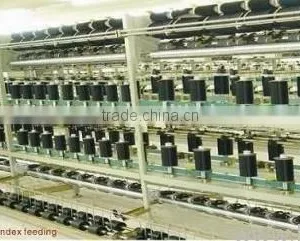

Rubber Covering Machine
CO-160 rubber covering machine: designed to produce rubber-covering yarns, this machine has special rubber dividing equipment and a rubber feeding device. It outputs various single and double rubber covering yarns.
Specifications:
1) Type: two sides and two layers
2) Head: 80 head, (160spindles, double covering)
3) Spindle pitch: 200mm
4) Mechanical spindle speed: 15,000 - 17,000rpm
5) Range of max. stretching times: 1.5 - 6.0
6) twist per meter: 200 to 3500
7) Take-up forming mode: mechanical forming
8) Twist direction: S or Z
9) Size of bobbin (external dia. x internal dia. x L):
Φ84 x Φ30 x 140mm
Φ76 x Φ30 x 140mm
Φ68 x Φ30 x 140mm
10) Take-up length: 160mm
11) spindle belt length: 20200mm
12) Total power: 5.5+7.5 or 7.5+11
13) optional device: spandex feeder
