Help CenterEngine Peak Indicators
Negotiable
MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
0-150
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
OEM
Model Number
0-150
Specifications
1.ENGINE PEAK INDICATOR_WITH HANDLE 150KGF/CM22.TYPE OF HANDLE(WITH o WITHOUT) PRESSURE RANGE.9

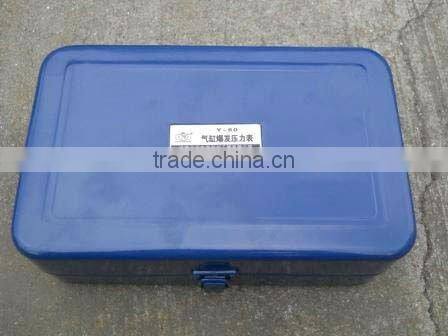

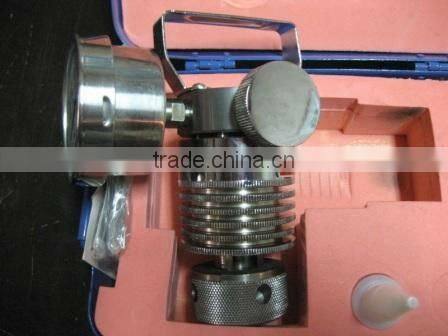

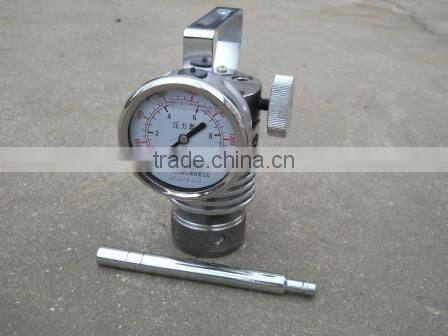

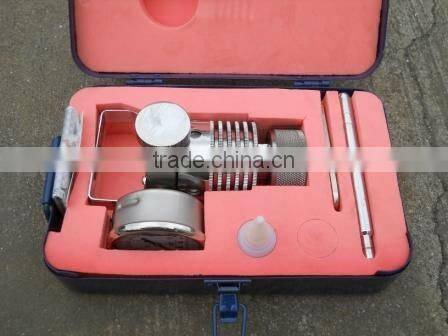

Engine Peak Indicators
IMPA:652632
1.For easy and quick measurement of the maximum peak pressure of engines.
2.Consists of three major components: a check valve, a pressure gauge and an exhaust valve.
3.The maximum peak pressure is directly read on the dial when the indication has settled.
4.There is no need for diagram acquisition, area measurement with a planimeter, or length measurement with a scale.
5.Oil-filled pressure gauges are used as indicators to provide outstanding vibration-resistant and heat-resistant characteristics.
6.The internal pressure is released to zero by opening the exhaust valve after measurment.
| Code |
Pressure Range kgf/cm² |
Minimum Graduation kgf/cm² |
Accuracy |
Dial Size mm |
Material of Bourdon Tube |
Model |
| 652631 | 0-100 | 5 |
±1.5%FS | 60 | SUS-316 | With handle |
| 652632 | 0-150 | 5 | ±1.5%FS | 60 | SUS-316 | With handle |
| 652633 | 0-100 | 5 | ±1.5%FS | 60 | SUS-316 | Without handle |
| 652634 | 0-150 | 5 | ±1.5%FS | 60 | SUS-316 | Without handle |
