Specifications
Gear & Wheel Pullers1.IMPA:615050-615067
2.Model:Type G &Type GL
3.material:steel or other
4.Advantage:easy to operate

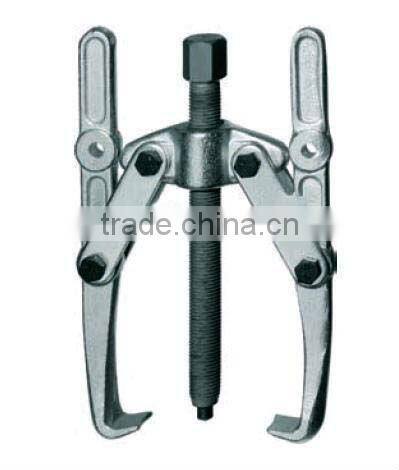

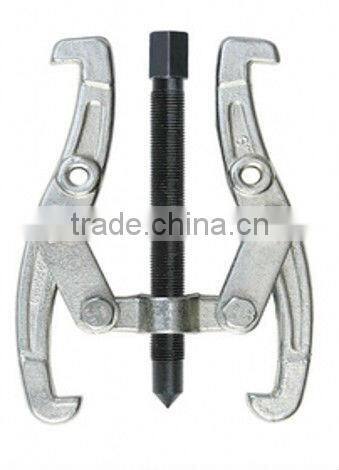

Gear & Wheel Pullers
IMPA CODE: 615050-615067
1.Designed for moving hard to pull gears, bearings or pulleys which are stuck from rust or over friction.
2.Easy to set up and operate, just hook over the gears or wheel and tighten the screw.
3.Will pull anything that is within arms reach and the maximum weight capacity.

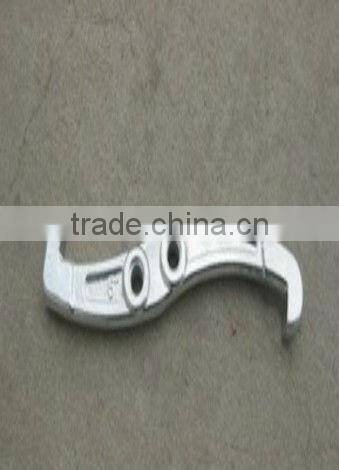

4.The arms and yokes are made of forged steel and the steel forcing screw is hardened to avoide flaring or thread damage.
| Code | Max. Spread mm | Max. Reach mm | Capacity Tons | Weight kgs |
| Puller Type "G" | ||||
615050 51 52 53 54 | 75 100 150 200 250 | 55 70 100 240 250 | 2 4 6 8 10 | 0.4 0.8 1.8 3.8 6.0 |
615055 56 57 58 | 300 375 450 600 | 275 320 370 575 | 12 15 18 24 | 9.0 11.0 15.0 45.0 |
| Puller Type "GL" | ||||
615061 62 63 64 65 | 100 150 200 250 300 | 150 190 275 300 350 | 4 6 8 10 12 | 1.0 2.3 4.4 7.0 10.0 |
615066 67 | 375 450 | 400 440 | 15 18 | 13.0 16.0 |
