Sockets for Impact Wrench1.IMPA:590201-590287
2.Heavy duty six point square drive sockets
3.For use with the impact wrench

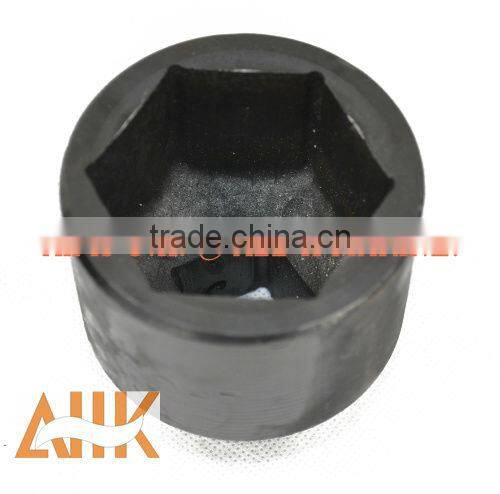

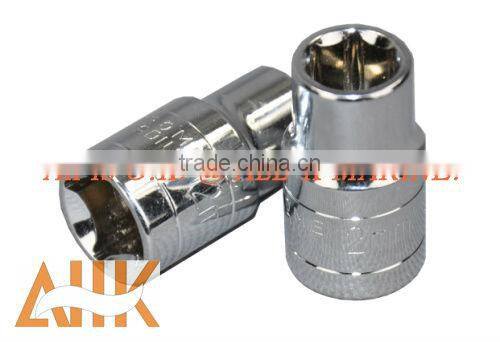

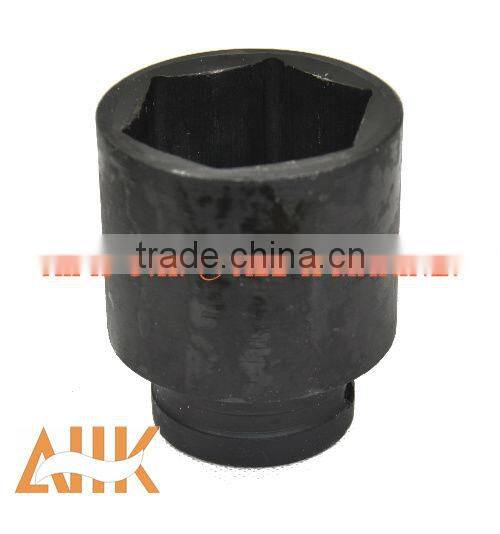

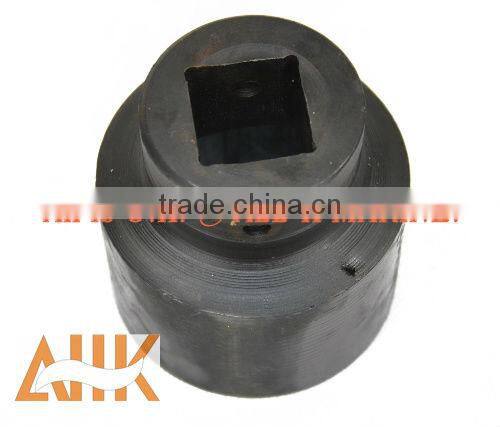

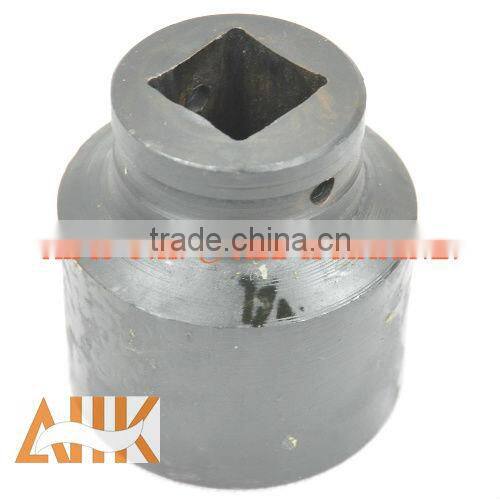

Sockets for Impact Wrench
IMPA CODE: 590201-590287
1.Heavy duty six point square drive sockets for use with the impact wrench.
2.Various sizes with different square drives are available.
| Code | Socket Size (S) (Opening) mm | Overall Overall (L) Length mm | For Bolt Size | |
mm |
inch | |||
| 9.5mm (3/8") SQ. Drive | ||||
|
590201 02 03 04 05 |
6 7 8 9 10 |
25 25 25 25 27 |
M3.5 M4 M5 M5 M6 |
W3/16 |
|
590206 07 08 09 10 |
11 13 14 17 19 |
27 27 27 27 30 |
M7 M8 M8 M10 M12 |
W3/8 W7/16 |
|
590211 12 |
21 22 |
35 35 |
M14 | W1/2 |
| 12.7mm (1/2") SQ.Drive | ||||
|
590213 14 15 16 17 |
10 11 12 13 14 |
38 38 38 38 38 |
M6 M7
M8 M8 |
W3/16
W1/4 |
|
590218 19 20 21 22 |
17 19 21 22 23 |
40 40 40 40 40 |
M10 M12
M14 M14 |
W3/8 W7/16 W1/2 |
|
590223 24 25 26 27 |
24 26 27 29 30 |
40 42 42 50 50 |
M16
M18 M18 M20 |
W5/8 |
| 590228 | 32 | 50 | M22 | W3/4 |
| 19.0mm (3/4") SQ. Drive | ||||
|
590229 30 31 32 33 |
17 19 21 22 23 |
48 48 48 48 50 |
M10 M12
M14 M14 |
W3/8 W7/16 W1/2 |
|
590234 35 36 37 38 |
24 26 27 29 30 |
50 50 52 52 52 |
M16
M18 M18 M20 |
W5/8 |
|
590239 40 41 42 43 |
32 35 36 38 41 |
52 55 55 55 55 |
M22
M24 M24 M27 |
W3/4 W7/8
W1 |
|
590244 45 |
46 50 |
70 75 |
M30 M33 |
W1-1/8 W1-1/4 |
| 25.4mm (1") SQ. Drive | ||||
|
590246 47 48 49 50 |
17 19 21 22 23 |
57 57 57 57 57 |
M10 M12
M14
|
W3/8 W7/16 W1/2
|
|
590251 52 53 54 55 |
24 26 27 29 30 |
57 57 57 57 57 |
M16
M18 M18 M20 |
W5/8
|
|
590256 57 58 59 60 |
32 35 36 38 41 |
57 62 62 68 68 |
M22
M24 M24 M27 |
W3/4 W3/7
W1 |
|
590261 62 63 64 65 |
46 50 55 58 60 |
75 75 80 80 85 |
M30 M33 M36
M39 |
W1-1/8 W1-1/4
W1-1/2
|
| 38.1mm (1-1/2") SQ. Drive | ||||
|
590267 68 69 70 71 |
46 50 54 55 58 |
94 100 100 100 105 |
M30 M33
M36
|
W1-1/8 W1-1/4 W1-3/8
W1-1/2 |
|
590272 73 74 75 76 |
60 63 65 67 70 |
105 110 110 110 110 |
M39
M42
M45 |
W1-1/8
W1-3/4 |
|
590277 78 79 80 81 |
71 75 77 80 85 |
115 115 115 120 120 |
M48
M52 M56 |
W-17/8
W2
W2-1/4 |
|
590282 83 84 85 86 |
90 95 100 105 110 |
125 140 140 145 147 |
M60 M64 M68 M72 M76 |
W2-1/2
W3 |
| 590287 | 115 | 150 | M80 | |
