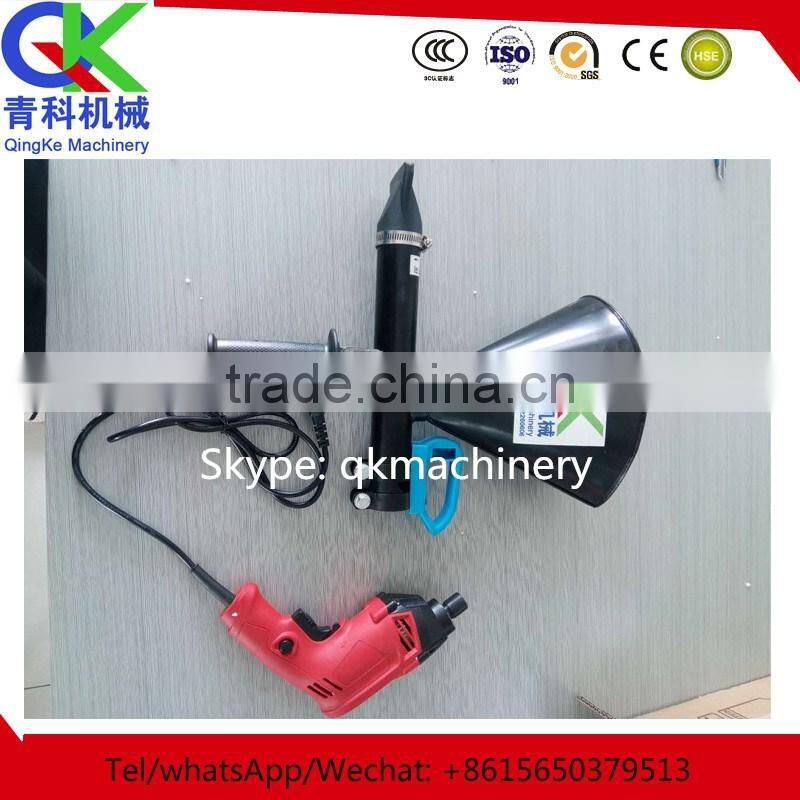

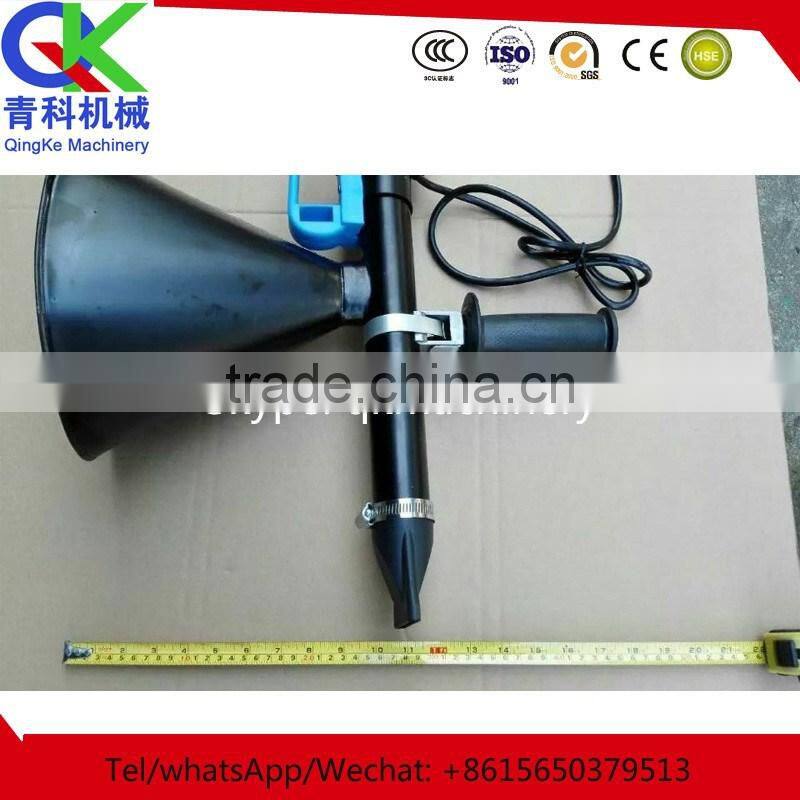

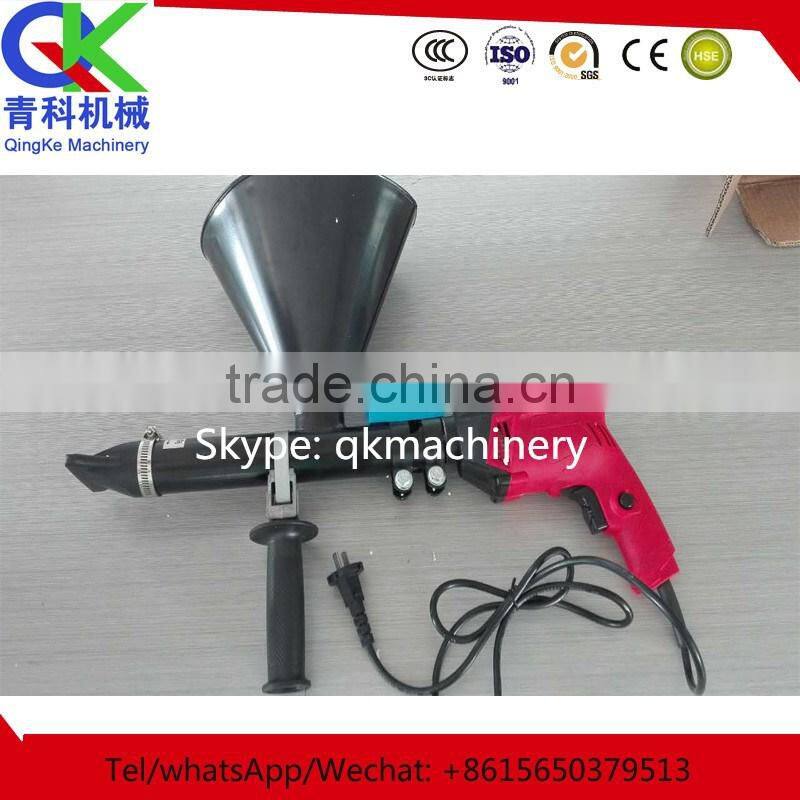

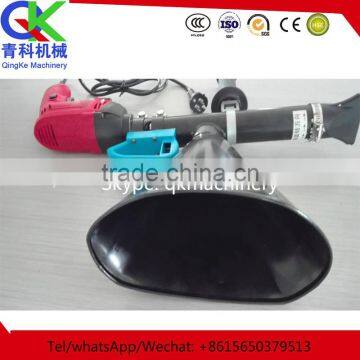

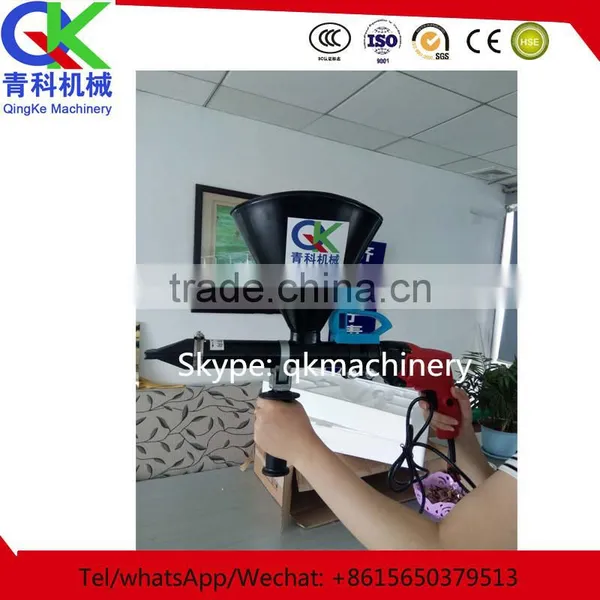

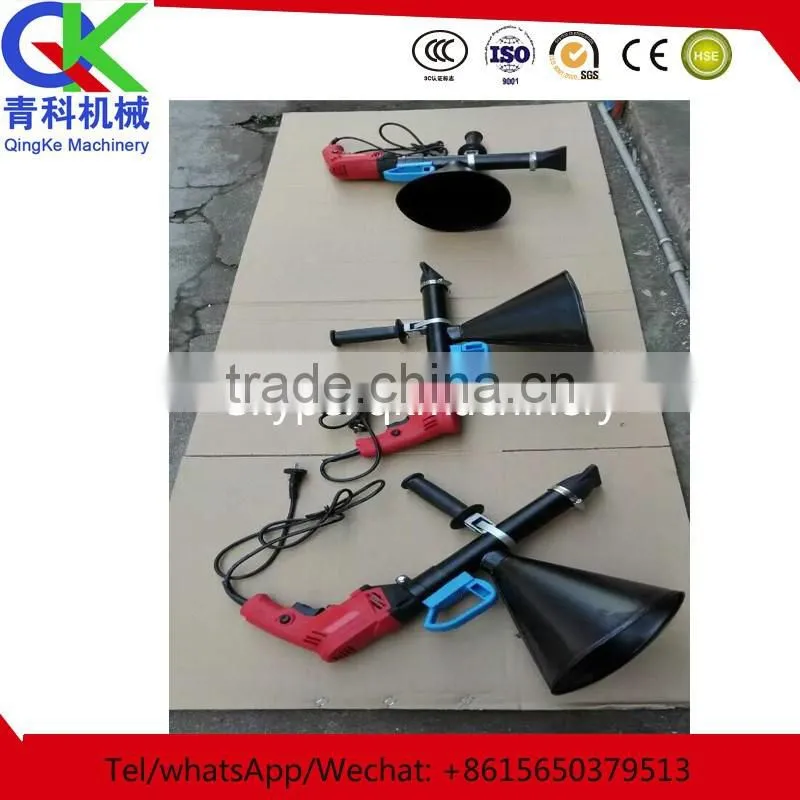

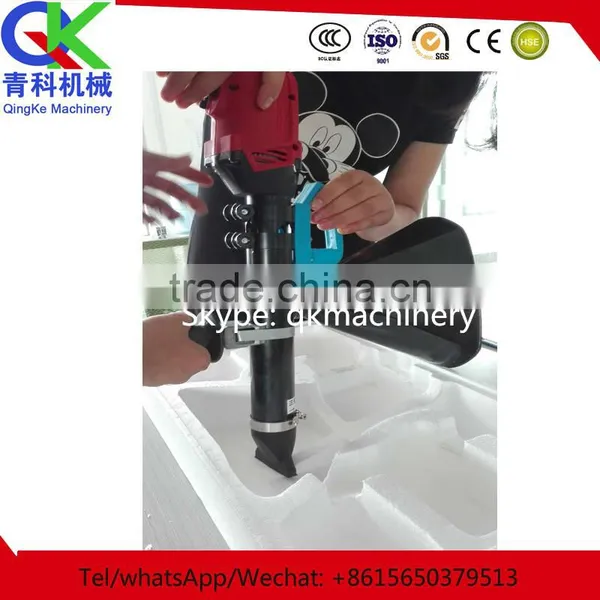

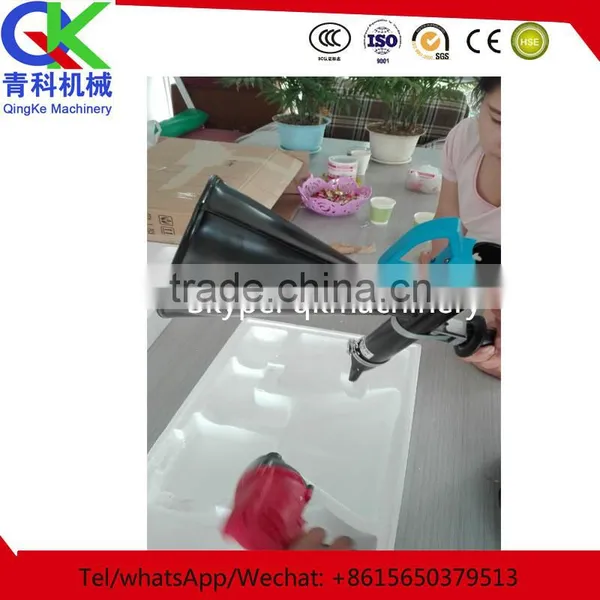

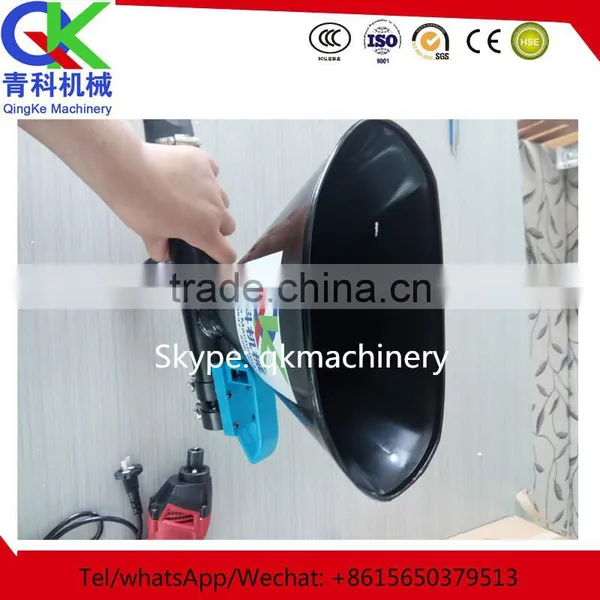

electric Crack filling machine grout injector

electric Crack filling machine grout injector

Related Products

Description

The grouting machine is conclusion, to learn from international multidisciplinary advanced technology, combination developed a new type of micro mechanical, including hydraulic technology, mechanical technology, composite technology and chemical material technology of multidisciplinary products. For construction, underground engineering, hydraulic engineering, environmental engineering, subway, tunnel, culvert infiltration leakage in the course of construction of the best mechanical equipment.

Principle:
The grouting machine of high pressure power, chemical grouting material into the cracks of concrete, when the slurry water after the case quickly dispersed, emulsification, expansion and consolidation and effective fracture filling, in order to achieve the purpose of leak stoppage.

Specification

Concrete theoretical transfer:0(m3/h)
Maximum outlet pressure of concrete:70(Mpa)
Rated feed capacity:15m3
Rated discharge capacity:10m3
Hopper lifting speed:100m/min
Maximum aggregate size:50x70mm
Power:220kw
Discharge mode:Automatic
power of agitator:1000kw
Mixing drum speed:1200min
agitator shaft speed:1200r/min
Dimension:70mm
Weight:6.5kg
single phase A.C: 220 V / 50 Hz
Maximum output pressure:11000PSI
Start again:<7500 PSI
Safety range of high pressure pipe:<12000 PSI
The range of safety valve:<15000 PSI
Butter head safety range:<18000 PSI

Detail

Advantage

• Environmental protection: mechanical performance is good, no noise, no pollution.
• Portable: weight of only 7 kg, compact and lightweight, easy to operate.
• High efficiency: in a few seconds to reach 0 - 50MPa working pressure, save time and effort.
• Security: reliable technology, reasonable structure, safe use
• Pressure to continue: continuous high pressure so that the size of the concrete component of the cracks effectively filled plug.
• Structural nondestructive: Cracks in concrete in direct installation mouth injection grouting, not tick groove, buried pipe, does not damage the structure. And hole wall of good adhesion, dry shrinkage of small, can be subtle void sufficiently jam.
• With water plugging of various cracks leakage, cellular leakage, underground water gushing, directly with water grouting.
• Supporting the use of a wide range of materials: polyurethane, epoxy resin, acrylic resin, such as no granular low viscosity slurry materials can be used.
• Durable: maximum pressure 50MPa when the body parts without distortion. Maintenance is simple, strong and durable, easy maintenance and cleaning.

Packing & Shippment

Company Information

Jining Qingke Machinery Co., Ltd established in July 29, 2015, registered capital of 5 million. This is our new branch. Our factory has 6 years history. We have CNC machining center, CNC lathe, boring machine, and milling machine.

Main products: Crack filling machine, Steel bar cutting machines, Bending machines, Straightening machines, Steel arc bending machine, Ground polishing machines, Terrazzo machines, Solar water pump, Garden Machinery(including tree spade & lawn mower), Construction machinery and accessories, Road marking and Mining equipment, Mining tools and so on.We have passed the ISO9001:2000 certification.

Our products have been exported to Europe, Russia, south America, Africa & the Middle East, more than 20 countries. We sincerely hope to have the opportunity to co-operate with you.
