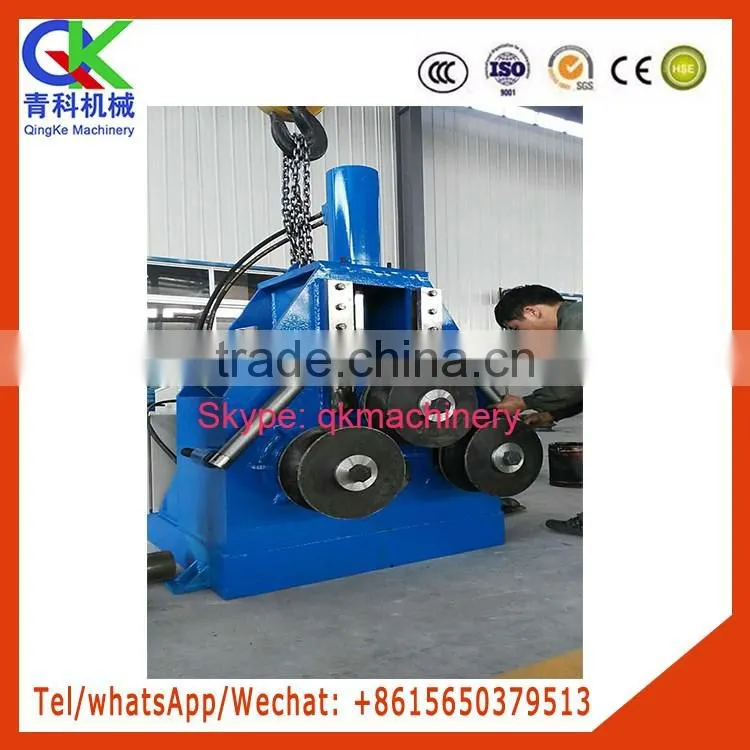

three-axis section bending machine angle iron bender
Related Products
Description
QK3—30 section-bending machine can be metal materials such as steel, flat steel, steel, steel, steel and other special-shaped section of fundamental changes in the characteristics of the case is bent into a tube shaped, curved or spiral shape workpiece.
Detail
Application
Widely used in petroleum, chemical, shipbuilding, hydropower, metal structure and machinery manufacturing industries.
Specification
Model | QK3-30 | |
Round tube | Max cross section specifications | Ø76×5 |
Min. bend radius | 270mm | |
Min. cross section specifications | Ø20×1.5 | |
Min. bend radius | 100mm | |
Square tube | Max cross section specifications | 80×80×5 |
Min. bend radius | 600mm | |
Min. cross section specifications | 320×2 | |
Min. bend radius | 150mm | |
Angle, both inside and outside bend | Max cross section specifications | 80×8 |
Min. bend radius | 500mm | |
Min. cross section specifications | 20×3 | |
Min. bend radius | 200mm | |
Round steel | Max cross section specifications | 38 |
Min. bend radius | 250mm | |
Flat steel flat bend | Max cross section specifications | 12×70 |
Min. bend radius | 150mm | |
Advantage
- Its structure is reasonable
- Small volume
- Convenient operation and maintenance
- Useful and reliable

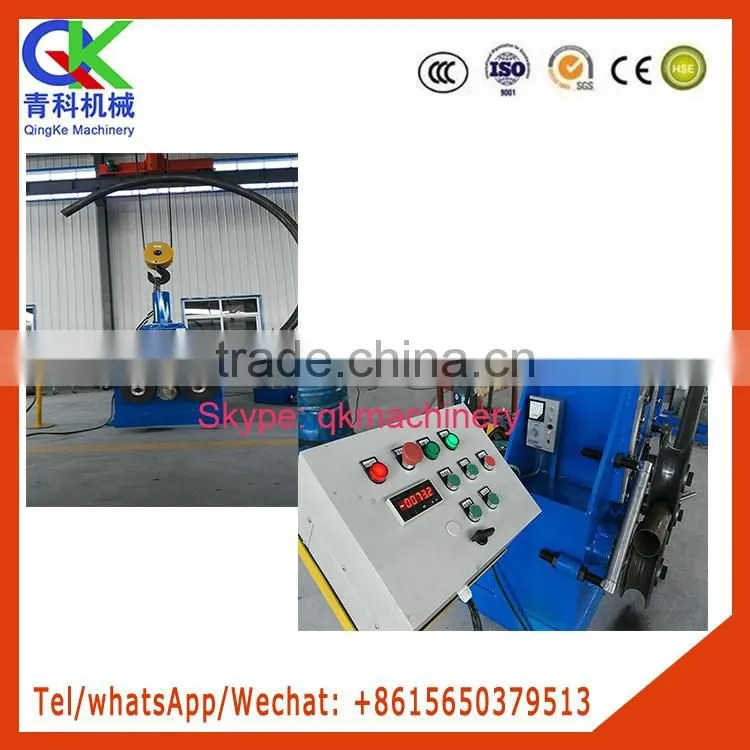

- Numerical control display
- One time molding

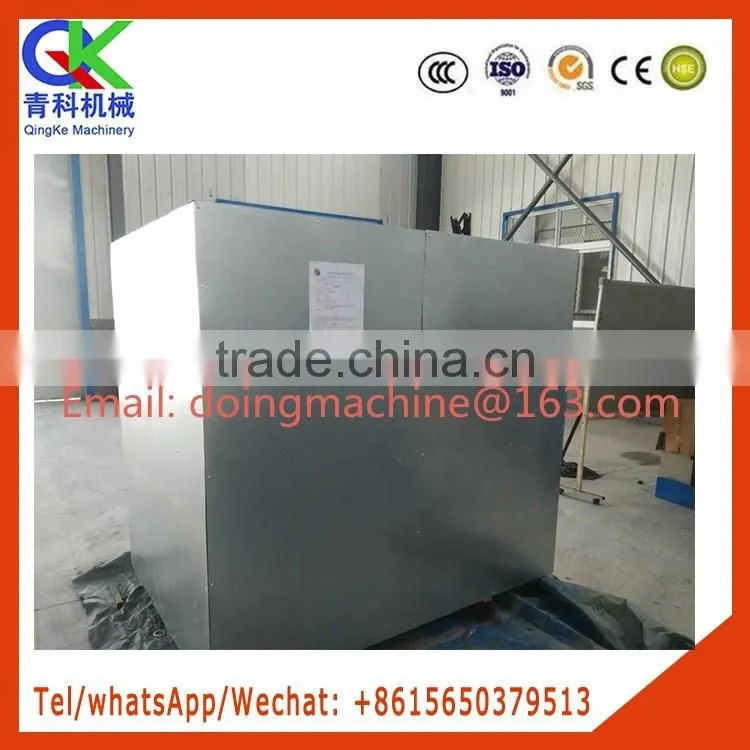

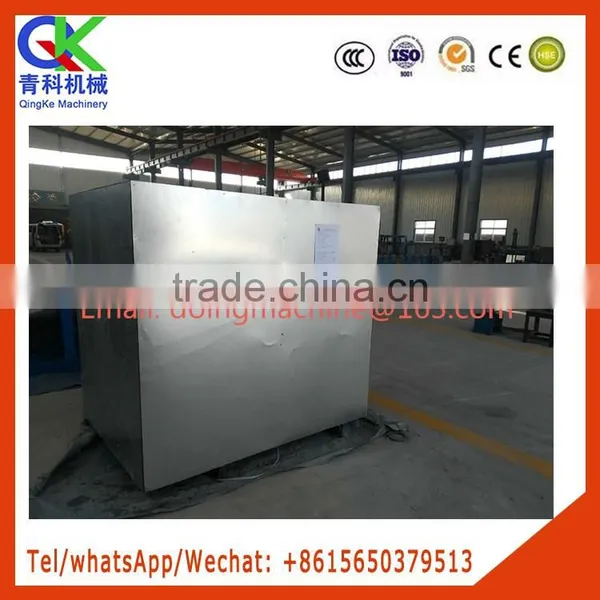

Packing & Shippments
Company Information
Jining Qingke Machinery Co., Ltd established in July 29, 2015, registered capital of 5 million.
This is our new branch. Our factory has 6 years history. We have CNC machining center, CNC
lathe, boring machine, and milling machine.
Main products: three-axis section bending machine , Bending machines, Straightening machines, Steel arc bending machine, Ground polishing machines, Terrazzo machines, Solar water pump, Garden Machinery(including tree spade & lawn mower), Construction machinery and accessories, Road marking and Mining equipment, Mining tools and so on.
We have passed the ISO9001:2000 certification. Our products have been exported to Europe, Russia, south America, Africa & the Middle East, more than 20 countries. We sincerely hope to have the opportunity to co-operate with you.
