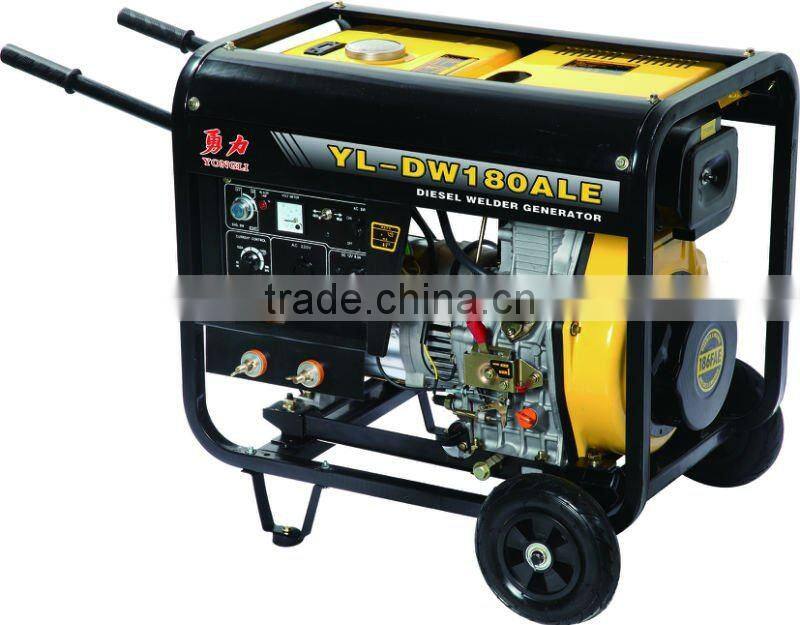

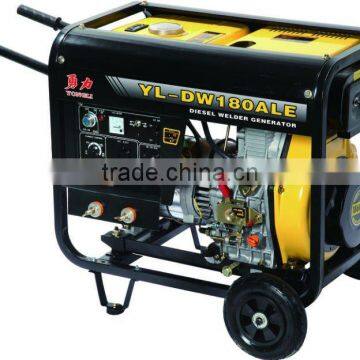

5kw Diesel Welding Generator With CE

Name: 5kw Diesel Welding Generator With CE
Brand: YOLEE
SKU: 140881546
Availability: InStock

Negotiable MOQ: 50 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

YOLEE

Model Number:

YL-DW180ALE

Zhejiang Yongli Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name YOLEE

Model Number YL-DW180ALE

Output Type AC Single Phase

Speed 3000rpm/min

Frequency 50HZ

Rated Power 2KW

Rated Voltage 220V

Rated Current 160-180A

Specifications

Diesel Welder Generator
Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine.

Model	YL-DW180ALE
Rated frequency (Hz)	50	60
Rated voltage (V)	230	240
Rated current (A)	8.7	9.2
Rated output power (KVA)	4.5	5
Rated rotation speed (rpm)	3000	3600
Welding voltage without load (V)	55-65
Rated current (A)	160-180
Work voltage (V)	25-30
Current regulation range (A)	80-180
Welding load continuous ratio	50%
Power factor cosφ	1
Phase number	Single phase
Noise level dB(A)@7m (zero load-full load)	77
Net weight [kg(lbs)]	113
Overall dimension [mm(in)](L× W× H)	720× 485× 580 (30.51× 19.09× 22.83)
Structure model	Open-frame
Engine model	186F
Engine type	1-cyliner, 4-stroke, air-coolde, vertical, diesel engine
Displacement [cm³ (Cu-in)]	406 (24.78)
Compression ratio	19.01
Reted power [KW(Hp)/rpm]	6.3 (8.6)/3600
Rated rotation speed (rpm)	3000/3600
T. C. L.	No
Spark plug	12V electric starter
Starting system	Electric starting
Rotation direction (view from flywheel)	Clockwise
Fuel type	0(summer), -10(winter) diesel oil
Lube	SAE10W30 (above CC grade)
Low oil presssure alarm system	With
